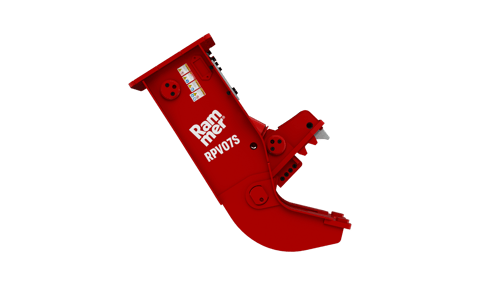

The RPV07S Static Pulveriser, is the ideal attachment for secondary demolition. The RPV07S is the perfect tool for crushing reinforced concrete and separating the rebar from the aggregate.
Bolt on cutting blades
Field replaceable and ajustable cutter blades minimize downtime and signifantly increase the working life of wear
Hydraulic cylinder shielding
The cylinders are fully protected throughout the working cycle. Increasing durability and extending service intervals.
Grated jaw design
The fixed jaw allows crushed material to pass through increasing productivity
Heat treated pins and bushings
Hardened parts are more wear resistant, extending their working life and lowering owning and operating costs
Manufactured from HB400 steel
Highly resistant material to work on concrete
Hydraulic excavators have largely replaced cranes with wrecking balls, enabling demolition to be carried out in a much more controlled and efficient manner.
rebar used extensivily in the construction industry to re-enforce concrete, as is designed to carry the tensile load.
You can increase crusher capacity by up to 50% through good preparation of the input material. The maximum size should be about 80% of the crusher inlet opening.
Specification sheet Operator manuals
|Minimum working weight||490 kg||1080 lb|
|Weight||420 kg||930 lb|
|Height||1225 mm||48.2 in|
|Max. jaw opening||480 mm||18.9 in|
|Max. cutting force||1300 kN|
|Max. crushing force||600 kN|
|Jaw width||350 mm||13.8 in|
|Operating pressure||220 - 280 bar||3190 - 4060 psi|
|Max. operating pressure||280 bar||4060 psi|
|Oil flow range||80 - 100 l/min||21.1 - 26.4 gal/min|
|Closing time at max oil flow||3.4 s|
|Opening time at max oil flow||2.4 s|
|Cutting blade length||25 mm||1 in|
|No. of cycles per minute at max oil flow||10.4|
|Max. diameter to be cut||25 mm||0.98 in|
|Pressure line connection (IN)||SAE 6000 psi 1/2"|
|Return line connection (OUT)||SAE 6000 psi 1/2"|
|Optimum oil temperature||40 - 60 °C||104 - 140 °F|
|Allowed oil temperature range||-20 - 80 °C||-4 - 176 °F|
|Optimum oil viscosity at operating temperature||30 - 60 cSt|
|Allowed viscosity range||20 - 1000 cSt|
|Carrier weight, range *1||4 - 10 t||8800 - 22000 lb|
|*1 Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.|
Specifications are subject to change without notice (Thursday, April 26, 2018)
