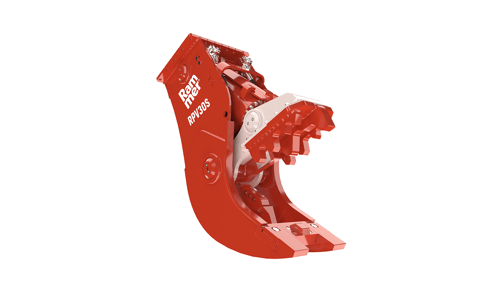

The RPV30S Static Pulveriser, is the ideal attachment for secondary demolition. The RPV30S is the perfect tool for crushing reinforced concrete and separating the rebar from the aggregate.
Shorter working cycles to increase productivity
Hydraulic cylinder shielding
The cylinders are fully protected throughout the working cycle. Increasing durability and extending service intervals.
Field replaceable wear parts
Minimise downtime as there is no need for welding/rebuilding
Grated jaw design
The fixed jaw allows crushed material to pass through increasing productivity
Heat treated pins and bushings
Hardened parts are more wear resistant, extending their working life and lowering owning and operating costs
Manufactured from HB400 steel
Highly resistant material to work on concrete
Bolt on, symmetrical cutter blades
Field replaceable and ajustable cutter blades minimize downtime and signifantly increase the working life of wear parts
Hydraulic excavators have largely replaced cranes with wrecking balls, enabling demolition to be carried out in a much more controlled and efficient manner.
You can increase crusher capacity by up to 50% through good preparation of the input material. The maximum size should be about 80% of the crusher inlet opening.
rebar used extensivily in the construction industry to re-enforce concrete, as is designed to carry the tensile load.
|Minimum working weight||3080 kg||6790 lb|
|Weight||2860 kg||6310 lb|
|Height||2400 mm||94.5 in|
|Max. jaw opening||1000 mm||39.37 in|
|Max. cutting force||2970 kN|
|Max. crushing force||1590 kN|
|Jaw width||605 mm||23.8 in|
|Operating pressure||280 - 320 bar||4060 - 4640 psi|
|Max. operating pressure||320 bar||4640 psi|
|Oil flow range||220 - 280 l/min||58.1 - 74.0 gal/min|
|Closing time at max oil flow||2.9 s|
|Opening time at max oil flow||2.7 s|
|Cutting blade length||60 mm||2.4 in|
|No. of cycles per minute at max oil flow||10.6|
|Max. diameter to be cut||60 mm||2.36 in|
|Pressure line connection (IN)||SAE 6000 psi 1 1/4"|
|Return line connection (OUT)||SAE 6000 psi 1 1/4"|
|Optimum oil temperature||40 - 60 °C||104 - 140 °F|
|Allowed oil temperature range||-20 - 80 °C||-4 - 176 °F|
|Optimum oil viscosity at operating temperature||30 - 60 cSt|
|Allowed viscosity range||20 - 1000 cSt|
|Carrier weight, range *1||25 - 35 t||55100 - 77200 lb|
|*1 Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.|
Specifications are subject to change without notice (Tuesday, February 6, 2018)
