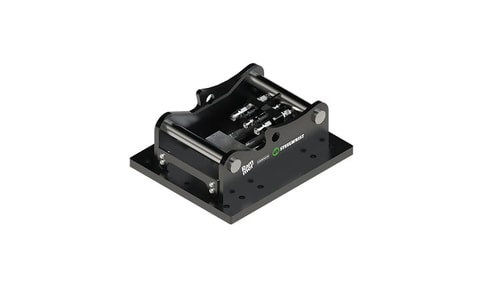

SQ60-5
Request a quote
Adapter Plates
SQ60-5
- Applications
-
- Primary demolition
- Secondary demolition
- Recycling
- Secondary breaking
- Rental
SQ60-5 is suitable for Rammer Performance line breakers R12P, R16P and R18P. This means they can work with carriers from 12 to 20 tons.
Product Specifications
Downloads
- Weight
- 200 kg (441 lb)
- Carrier weight
- 12 - 20 t (26,880 - 44,800 lb) *
- Dimensions (W x L x H)
- 580 x 700 x 280 mm (22.8 x 27.6 x 11.0 in)
- Connections
- 2 x 3/4” First circuit, 2 x 3/8” Secondary circuit, 1 x ½” Leak oil
- Rammer breaker configuration
- Pressure: 1 x 3/4” (pos 1), Tank: 1 x 3/4” + 1 x ½” (pos 5, 3)
Applications & benefits
Adapter plate SQ60-5 comes in two variations, as bolts and hose kits vary depending on the breaker type.
-
Applications
- Primary demolition
Demolition of standing buildings and structures. - Secondary demolition
Demolition of larger pieces on the ground (size reduction, separation and preliminary sorting tasks). - Recycling
Re-using parts or material which has been extracted from existing buildings or structures. Recyclng of products: Re-use of material or parts as such. Recycling of material: Re-use of material for other purposes. - Secondary breaking
When blasted rock is too big for the feeder or crusher, secondary breaking is needed to get the boulders down to size. The type of rock dictates the effectiveness of the process, with brittle rock giving the best performance. - Rental
Rental includes most applications.
- Primary demolition
-
Main benefits of Rammer adapter plates
- Safety first
Full-automatic interface yielding less exposure of operators to risks; improved serviceability - Design for efficiency & productivity
More productive by using more tools with fewer excavators - Premium components
Higher uptime with reduced oil consumption & fuel burnt - Rammer-ready
Plug-and-play assembly
- Safety first
