SQ65
Request a quote
Adapter Plates
SQ65
- Applications
-
- Primary demolition
- Secondary demolition
- Recycling
- Secondary breaking
- Rental

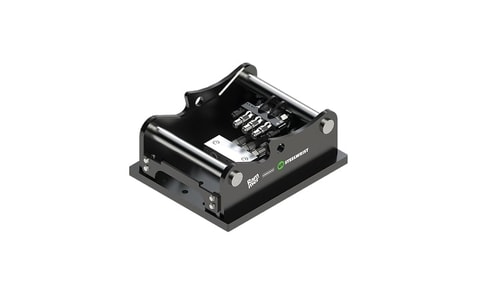

SQ65 is suitable for Rammer Performance line breakers R16P and R18P. This means they can work with carriers from 14 to 22 tons.
Product Specifications
Downloads
- Weight
- 204 kg (450 lb)
- Carrier weight
- 14 - 22 t (31,360 - 49,280 lb) *
- Dimensions (W x L x H)
- 580 x 700 x 290 mm (22.8 x 27.6 x 11.4 in)
- Connections
- 2 x 3/4” First circuit, 2 x 1/2” Secondary circuit, 1 x 3/4” Drain line
- Rammer breaker configuration
- Pressure: 1x ¾” (pos 2), Tank: 2 x ¾” (pos 4 & 3)
Applications & benefits
Adapter plate SQ65 are specifically designed for the German, Austrian, and Swiss markets.
-
Applications
- Primary demolition
Demolition of standing buildings and structures. - Secondary demolition
Demolition of larger pieces on the ground (size reduction, separation and preliminary sorting tasks). - Recycling
Re-using parts or material which has been extracted from existing buildings or structures. Recyclng of products: Re-use of material or parts as such. Recycling of material: Re-use of material for other purposes. - Secondary breaking
When blasted rock is too big for the feeder or crusher, secondary breaking is needed to get the boulders down to size. The type of rock dictates the effectiveness of the process, with brittle rock giving the best performance. - Rental
Rental includes most applications.
- Primary demolition
-
Main benefits of Rammer adapter plates
- Safety first
Full-automatic interface yielding less exposure of operators to risks; improved serviceability - Design for efficiency & productivity
More productive by using more tools with fewer excavators - Premium components
Higher uptime with reduced oil consumption & fuel burnt - Rammer-ready
Plug-and-play assembly
