SQ80
Request a quote
Adapter Plates
SQ80
- Applications
-
- Primary demolition
- Secondary demolition
- Recycling
- Primary breaking
- Secondary breaking
- Rental

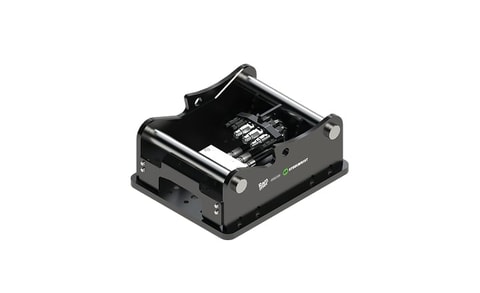

SQ80 is suitable for Rammer Performance line breakers R25P, R35P and R45P. This means they can work with carriers from 25 to 43 tons.
Product Specifications
Downloads
- Weight
- 400 kg (882 lb)
- Carrier weight
- 25 - 43 t (56,000 - 96,320 lb) *
- Dimensions (W x L x H)
- 730 x 900 x 400 mm (28.7 x 35.4 x 15.8 in)
- Connections
- 2 x 1” First circuit, 2 x ½” Secondary circuit, 2 x 3/4” Leak oil / split, water, air
- Rammer breaker configuration
- Pressure: 1 x 1” (pos 3), Tank: 1 x 1”, 1x ¾” (pos 4 & 5)
Applications & benefits
-
Applications
- Primary demolition
Demolition of standing buildings and structures. - Secondary demolition
Demolition of larger pieces on the ground (size reduction, separation and preliminary sorting tasks). - Recycling
Re-using parts or material which has been extracted from existing buildings or structures. Recyclng of products: Re-use of material or parts as such. Recycling of material: Re-use of material for other purposes. - Primary breaking
Hammer fitted to an excavator working directly in a bench to breaks away rock which can then be removed by truck. This is most commonly used where blasting is not allowed. - Secondary breaking
When blasted rock is too big for the feeder or crusher, secondary breaking is needed to get the boulders down to size. The type of rock dictates the effectiveness of the process, with brittle rock giving the best performance. - Rental
Rental includes most applications.
- Primary demolition
-
Main benefits of Rammer adapter plates
- Safety first
Full-automatic interface yielding less exposure of operators to risks; improved serviceability - Design for efficiency & productivity
More productive by using more tools with fewer excavators - Premium components
Higher uptime with reduced oil consumption & fuel burnt - Rammer-ready
Plug-and-play assembly
- Safety first
