BB49E3K3 Pyramid
Tools
BB49E3K3 Pyramid
- Applications
-
Primary demolition / Trenching / Secondary demolition / Recycling / Primary breaking / Tunnelling with hydraulic hammers / Landscaping / Rental
- Compatible with

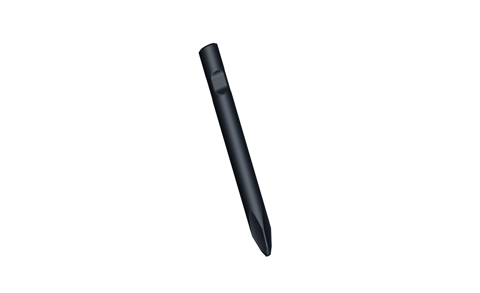

The Pyramid Tool makes light work of breaking non-abrasive material of all strengths. Non-abrasive materials which allow a high penetration rate, especially concrete, are short work for the Pyramid tool.
Product Specifications
Technical specifications
| Part number |
BB49E3K3
|
|---|---|
| Weight |
66.00
kg
(145.00 lb)
|
| Length |
1,000.00
mm
(39.40 in)
|
| Working length |
570.00
mm
(22.50 in)
|
| Tool diameter |
115.00
mm
(4.50 in)
|
| Part number |
BB49E3K3
|
|---|---|
| Weight |
66.00
kg
(145.00 lb)
|
| Length |
1,000.00
mm
(39.40 in)
|
| Working length |
570.00
mm
(22.50 in)
|
| Tool diameter |
115.00
mm
(4.50 in)
|
| Compatible with | |
| Width |
48.00
mm
(1.90 in)
|
Specifications are subject to change without notice (Wednesday, January 6, 2021)
Features & Applications
Applications
- Primary demolition
Demolition of standing buildings and structures. - Trenching
Trenching is a form of primary breaking in which a narrow trench is excavated especially for laying pipes, cables or for installing drainage - Secondary demolition
Demolition of larger pieces on the ground (size reduction, separation and preliminary sorting tasks) - Recycling
Re-using parts or material which has been extracted from existing buildings or structures. Recyclng of products: Re-use of material or parts as such Recycling of material: Re-use of material for other purposes - Tunnelling with hydraulic hammers
Direct excavation or widening of tunnels with a hydraulic hammer. Especially with Rammer Pro hammers inclusive Ramair and AGW system for management of dust and debris. - Primary breaking
Hammer fitted to an excavator working directly in a bench to breaks away rock which can then be removed by truck. This is most commonly used where blasting is not allowed. - Landscaping
Gardening, graveyard and landscaping applications, hard ground and removal of smaller boulders, concrete fundaments or similar. - Rental
Rental includes most applications
