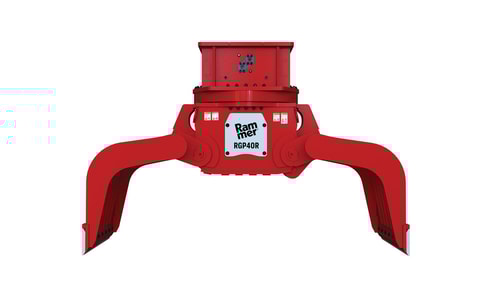

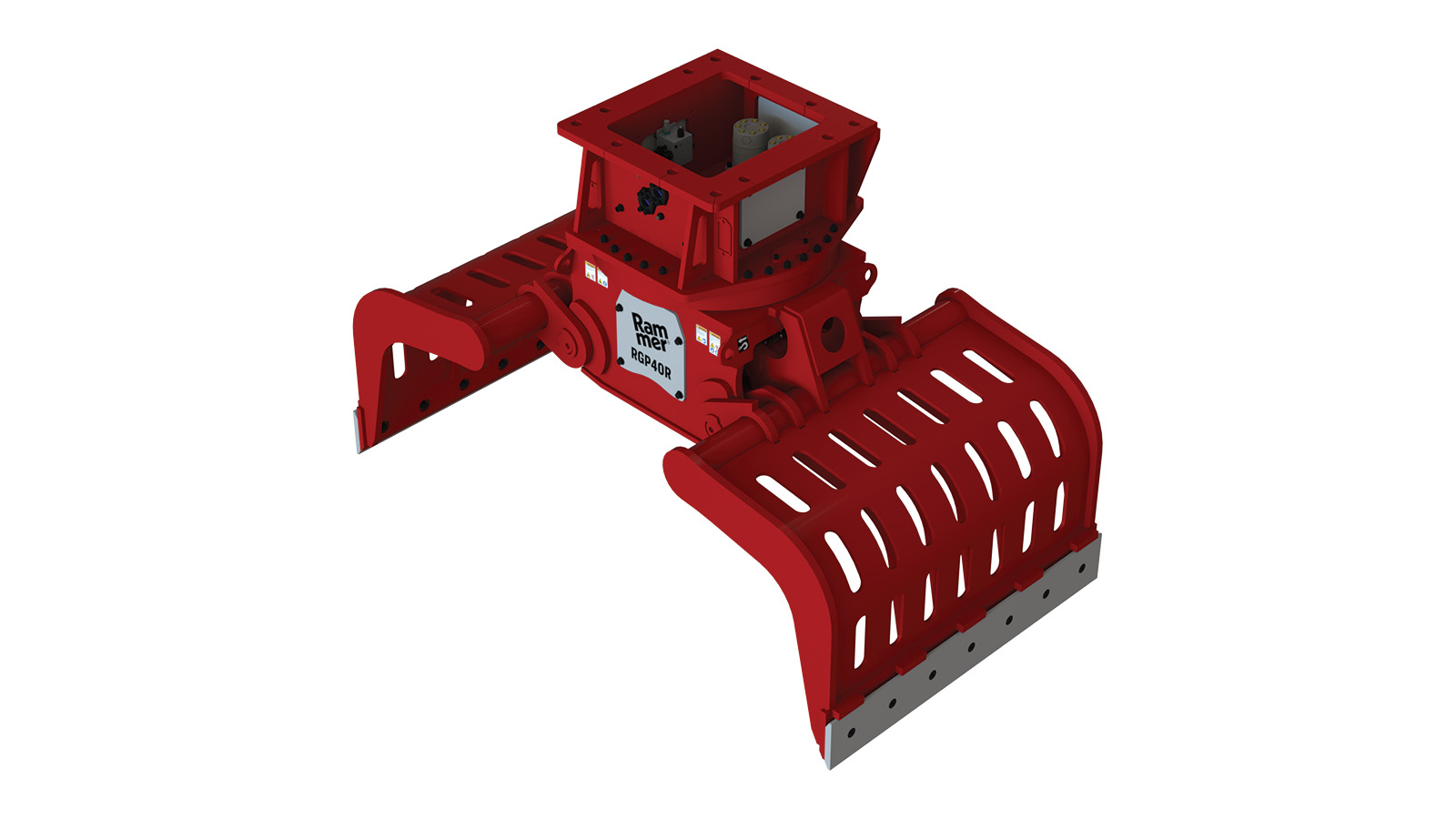

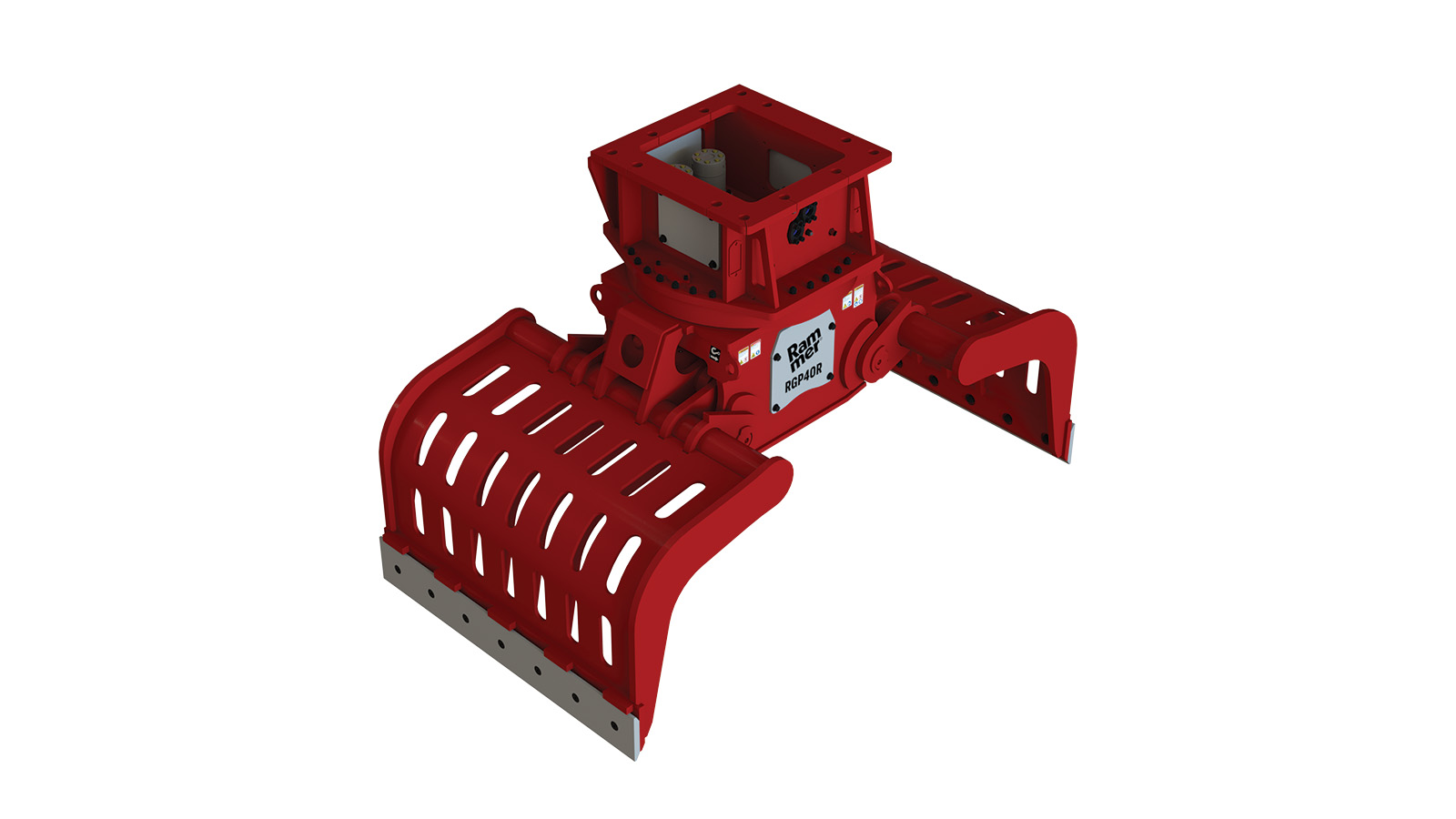

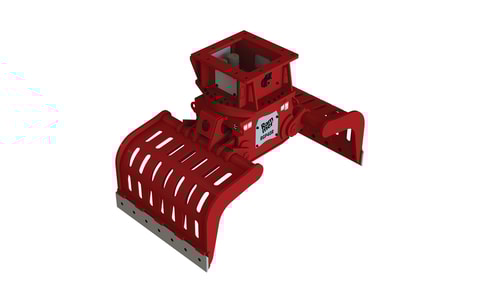

RGP40R
Grapples
RGP40R
- Applications
-
- Primary demolition
- Secondary demolition
- Recycling
- Landscaping
- Min. working weight, flange mounted *1
- 2,475 kg (5,456 lb)
}
High-capacity grapple for demanding demolition sites
Designed for 30–35 ton (66,100–77,100 lb) carriers, the RGP40R delivers strong gripping force and durability. With a 2,430 mm (96.5 in) opening, it supports efficient handling of large demolition debris and recycling materials.
Product Specifications
Downloads
Technical specifications
| Min. working weight, flange mounted *1 |
2,475
kg
(5,456 lb)
|
|---|---|
| Weight |
2,250
kg
(4,960 lb)
|
| Max. jaw opening |
2,430
mm
(96.5 in)
|
| Jaw width |
950
mm
(37.4 in)
|
| Operating pressure |
300
bar
(4,351 psi)
|
-
* Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.
| Min. working weight, flange mounted *1 |
2,475
kg
(5,456 lb)
|
|---|---|
| Weight |
2,250
kg
(4,960 lb)
|
| Max. jaw opening |
2,430
mm
(96.5 in)
|
| Jaw width |
950
mm
(37.4 in)
|
| Operating pressure |
300
bar
(4,351 psi)
|
| Oil flow range |
80 - 120
l/min
(21 - 31 gal/min)
|
| Rotation |
360
°
|
| Max pressure for hydraulic rotation |
120
bar
(1,740 psi)
|
| Oil flow for hydraulic rotation |
40
l/min
(11 gal/min)
|
| Carrier weight |
30 - 35
t
(66,100 - 77,100 lb)
|
Features & Applications
-
Features
- HARDOX steel construction
Heavy-duty HARDOX steel construction provides excellent resistance to wear and impact for long-lasting performance in demanding material handling applications. - Hydraulic rotation
Provides smooth, accurate positioning for efficient material handling and improved operator control. - Single cylinder design
The single cylinder design provides a simple and reliable solution for material handling applications. - Rotation control valve
Enables precise, controlled movements for improved handling and positioning. - Hardened pins and bushings
Reinforced wear points ensure durability under continuous high-load operation. - Pressure relief valve
Protects the hydraulic circuit from pressure spikes, helping to safeguard hydraulic components. - Double hydraulic motor
Dual hydraulic motors provide reliable rotation performance for demanding material handling applications. - Multiple jaw options
Available with demolition jaws or heavy-duty jaws with 2 or 3 claws, allowing the grapple to be tailored to specific material handling needs.
- HARDOX steel construction
-
Applications
- Primary demolition handling
Handling and removing non-structural materials during primary demolition work. - Secondary demolition
Handling, separation and preliminary sorting of demolition material on the ground. - Recycling
Handling and sorting demolition materials for further processing and recycling. - Landscaping
Material handling and sorting in landscaping applications.
- Primary demolition handling
