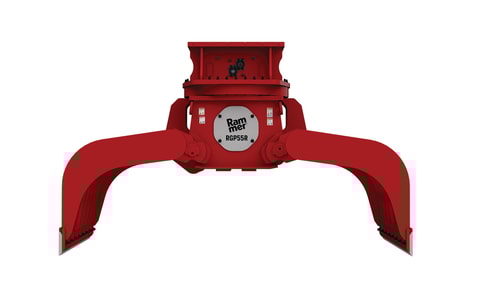

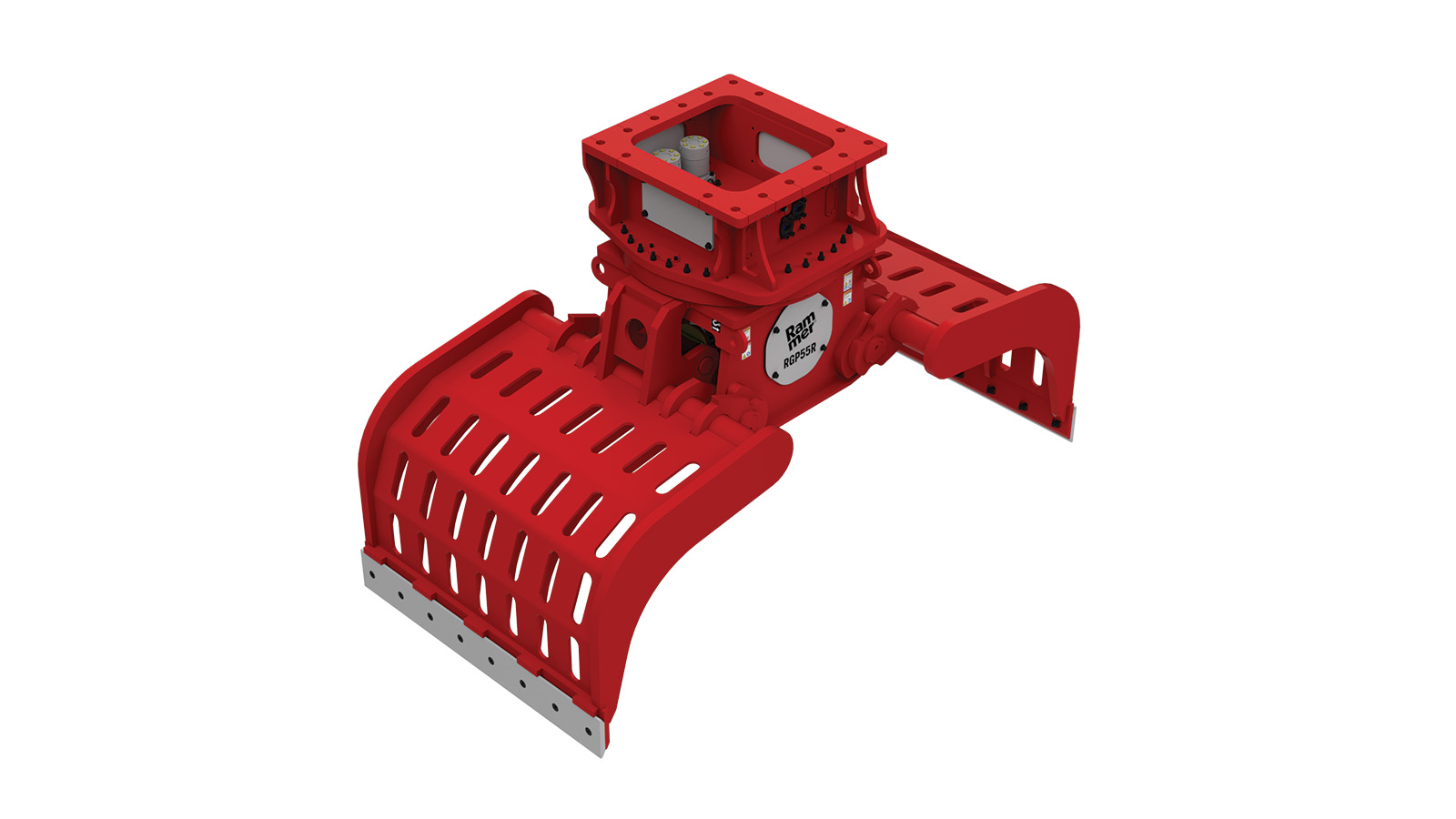

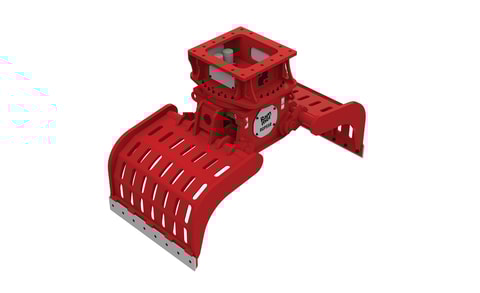

RGP55R

Applications: Primary demolition
Secondary demolition
Recycling
Landscaping
Rental
Min. working weight, flange mounted *1: 4,100 kg (9,040 lb)
Carrier weight, range *2: 45 - 65 t (99,200 - 143,300 lb)

}

Maximum capacity grapple for large-scale operations

Built for 45–65 ton (99,200–143,300 lb) carriers, the RGP55R offers exceptional strength for large-scale demolition and recycling work. Featuring a 3,000 mm (118 in) opening, it enables efficient handling of oversized debris and high-volume material flows.

Product Specifications

Technical specifications

Min. working weight, flange mounted *1	4,100 kg (9,040 lb)
Weight	3,740 kg (8,245 lb)
Max. jaw opening	3,000 mm (118 in)
Jaw width	1,050 mm (41 in)
Operating pressure	300 bar (4,351 psi)
Oil flow range	120 - 140 l/min (31 - 37 gal/min)
Rotation	360 °
Max pressure for hydraulic rotation	120 bar (1,740 psi)
Oil flow for hydraulic rotation	15 l/min (5 gal/min)
Carrier weight, range *2	45 - 65 t (99,200 - 143,300 lb) ^*
Features	Hardened pins and bushings

Min. working weight, flange mounted *1	4,100 kg (9,040 lb)
Weight	3,740 kg (8,245 lb)
Max. jaw opening	3,000 mm (118 in)
Jaw width	1,050 mm (41 in)
Operating pressure	300 bar (4,351 psi)
Oil flow range	120 - 140 l/min (31 - 37 gal/min)
Rotation	360 °
Max pressure for hydraulic rotation	120 bar (1,740 psi)
Oil flow for hydraulic rotation	15 l/min (5 gal/min)
Carrier weight, range *2	45 - 65 t (99,200 - 143,300 lb) ^*
Features	Hardened pins and bushings

^* Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

^* Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

Features & Applications

Features
- Hardox steel construction
  High-strength construction provides durability for recycling and material handling applications.
- Hydraulic rotation
  Enables accurate positioning and efficient handling of demolition debris.
- Single cylinder design
  Simple, reliable design delivers strong gripping force with reduced maintenance needs.
- Interchangeable blades
  Blades can be replaced or adjusted in the field to minimize downtime and maintain performance.
- Mechanical blade beating
  Improves material separation and handling efficiency during recycling operations.
- Rotation control valve
  Ensures smooth, precise movements for improved operator control.
- Pressure relief valve
  Protects the hydraulic system from pressure spikes, increasing reliability and component life.
- Hardened pins and bushings
  Designed to withstand high-cycle handling and heavy loads.
- Double hydraulic motor
  Provides strong, consistent rotation power (RGP40R–RGP55R models).
- Multiple claw options
  A variety of claw configurations allow the grapple to be tailored to specific material handling needs.
Applications
- Primary demolition
  Demolition of standing buildings and structures.
- Secondary demolition
  Demolition of larger pieces on the ground (size reduction, separation and preliminary sorting tasks)
- Recycling
  Re-using parts or material which has been extracted from existing buildings or structures. Recyclng of products: Re-use of material or parts as such Recycling of material: Re-use of material for other purposes
- Landscaping
  Gardening, graveyard and landscaping applications, hard ground and removal of smaller boulders, concrete fundaments or similar.
- Rental
  Rental includes most applications
