Ho-Pac 1000CS
Request a quote
Ho-Pac Compactor Drivers

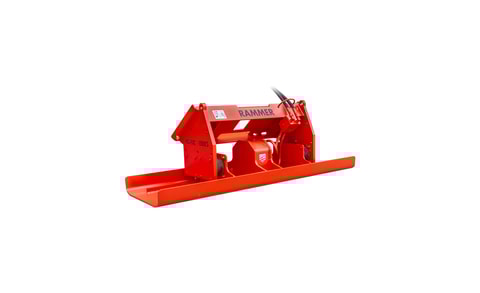

Ho-Pac 1000CS
- Min. working weight, flange mounted *1
- 499 kg (1,110 lb)
The 1110lbs (503kg) Ho-Pac 1000CS is ideal for preparing street, driveway or sidewalksub-bases prior to concrete paving (Concrete Paving Contractors).
For grading contractors: backfilling against curbs, gutters, highway pavement and concrete slabs. Smoothing, leveling and compacting sub-soil to prepare for sodding or seeding for landscaping contractors. Compatible with minimum of 4 ton carriers, this attachment is designed for use in skid steers and compact track loaders.The Ho-Pac 1000CS features Four Function Valve that controls flow, pressure, regenerations and oil flow direction, Grease filled sealed bearings providing maintenance free lubrication, and tough coat hoses that prevent cuts and extend wear life. Larger eccentric with mass further away from shaft centerline helps to increase impulse force. Manufactured in the Ohio.
Product Specifications
- Mounting bracket type
- SSU
- Min. working weight, flange mounted *1
- 499 kg (1,110 lb) *
- Height
- 700 mm (28 in)
- Impulse force
- 8,000 kg
- Operating frequency
- 2,000 rpm
- Mounting bracket type
- SSU
- Min. working weight, flange mounted *1
- 499 kg (1,110 lb) *
- Height
- 700 mm (28 in)
- Impulse force
- 8,000 kg
- Operating frequency
- 2,000 rpm
- Hydraulic flow options
- 18 gal/min
- Compaction plate dimensions
- 18 x 84 in
- Width
- 1,829 mm (72 ) in
- Pressure line size, min. inner diameter
- 16 mm (1 in)
- Return line size, min. inner diameter
- 16 mm (1 in)
- Skid steer, robot weight, range *2
- 2 - 6 t (4,000 - 12,000 lb)
- Hydraulic flow options
- 18 gal/min
- Carrier weight
- 4000 lb (Minimum)
-
* Includes average mounting bracket and standard wear parts
