Ho-Pac 1600
Request a quote
Ho-Pac Compactor Drivers
Ho-Pac 1600
- Min. working weight, flange mounted *1
- 862 kg (1,900 lb)

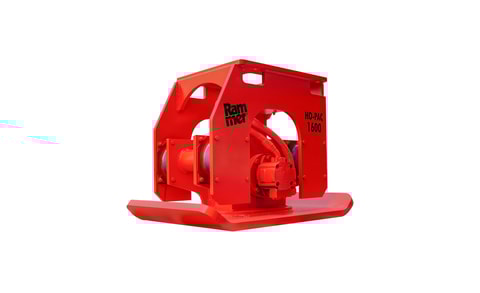

The 1900lbs (862kg) Ho-Pac 1600 is ideal for trench, slope and excavation compaction, and provides effective forces for driving pilings, posts, pipes, beams and sea walls.
Compatible with carriers in the 19,000 to 45,000 ton range, this attachment is designed for use in small to medium excavators as well as larger loaders and backhoes.The Ho-Pac 1600 features Four Function Valve that controls flow, pressure, regenerations and oil flow direction, Oil Splash lubrication providing maintenance free (no greasing) bearing lubrication, and tough coat hoses that prevent cuts and extend wear life. Larger eccentric with mass further away from shaft centerline helps to increase impulse force.Manufactured in Ohio.
Product Specifications
- Mounting bracket type
- SR/MR
- Min. working weight, flange mounted *1
- 862 kg (1,900 lb) 1)
- Height
- 809 mm (32 in)
- Carrier weight, range *2
- 9 - 21 t (2,000 - 45,000 lb) 2)
- Impulse force
- 16,000 kg
- Mounting bracket type
- SR/MR
- Min. working weight, flange mounted *1
- 862 kg (1,900 lb) 1)
- Height
- 809 mm (32 in)
- Carrier weight, range *2
- 9 - 21 t (2,000 - 45,000 lb) 2)
- Impulse force
- 16,000 kg
- Operating frequency
- 2,100 rpm
- Hydraulic flow options
- 25/30/43 gal/min
- Compaction plate dimensions
- 29 x 44 in
- Miniexcavator, tractor backhoe weight, Range *2
- 9 - 11 t (19,000 - 25,000 lb)
- Width
- 737 mm (29 ) in
- Pressure line size, min. inner diameter
- 25 mm (1 in)
- Return line size, min. inner diameter
- 25 mm (1 in)
- Length
- 1,163 mm (46 in)
-
1) Includes average mounting bracket and standard wear parts
-
2) Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.
