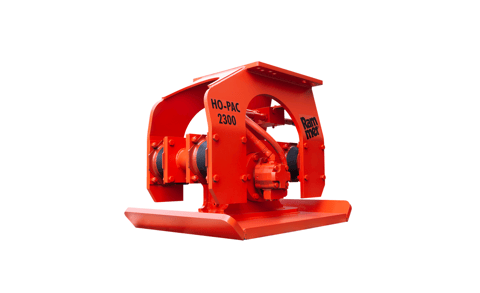

Ho-Pac 2300
Ho-Pac Compactor Drivers
Ho-Pac 2300
- Min. working weight, flange mounted *1
- 1,315 kg (2,900 lb)
The 2900lbs (1315kg) Ho-Pac 2300 is ideal for trench, slope and excavation compaction, and provides effective forces for driving pilings, posts, pipes, beams and sea walls.
Compatible with carriers in the 35,000 to 120,000 ton range, this attachment is designed for use in large excavators, loaders and backhoes.The Ho-Pac 2300 features Four Function Valve that controls flow, pressure, regenerations and oil flow direction, Oil Splash lubrication providing maintenance free (no greasing) bearing lubrication, and tough coat hoses that prevent cuts and extend wear life. Larger eccentric with mass further away from shaft centerline helps to increase impulse force.Manufactured in Ohio.
Product Specifications
Technical specifications
| Mounting bracket type |
MR/LR8
|
|---|---|
| Min. working weight, flange mounted *1 |
1,315
kg
(2,900 lb)
1)
|
| Height |
871
mm
(34 in)
|
| Carrier weight, range *2 |
16 - 54
t
(35,000 - 120,000 lb)
2)
|
| Impulse force |
24,000
lb
|
| Mounting bracket type |
MR/LR8
|
|---|---|
| Min. working weight, flange mounted *1 |
1,315
kg
(2,900 lb)
1)
|
| Height |
871
mm
(34 in)
|
| Carrier weight, range *2 |
16 - 54
t
(35,000 - 120,000 lb)
2)
|
| Impulse force |
24,000
lb
|
| Operating frequency |
2,100
rpm
|
| Hydraulic flow options |
47
gal/min
|
| Compaction plate dimensions |
34 x 44 in
|
| Width |
864
mm
(34 )
in
|
| Hydraulic flow options |
47
gal/min
|
| Length |
1,229
mm
(48 in)
|
-
1) Includes average mounting bracket and standard wear parts
-
2) Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.
