Rotating Pulverizers

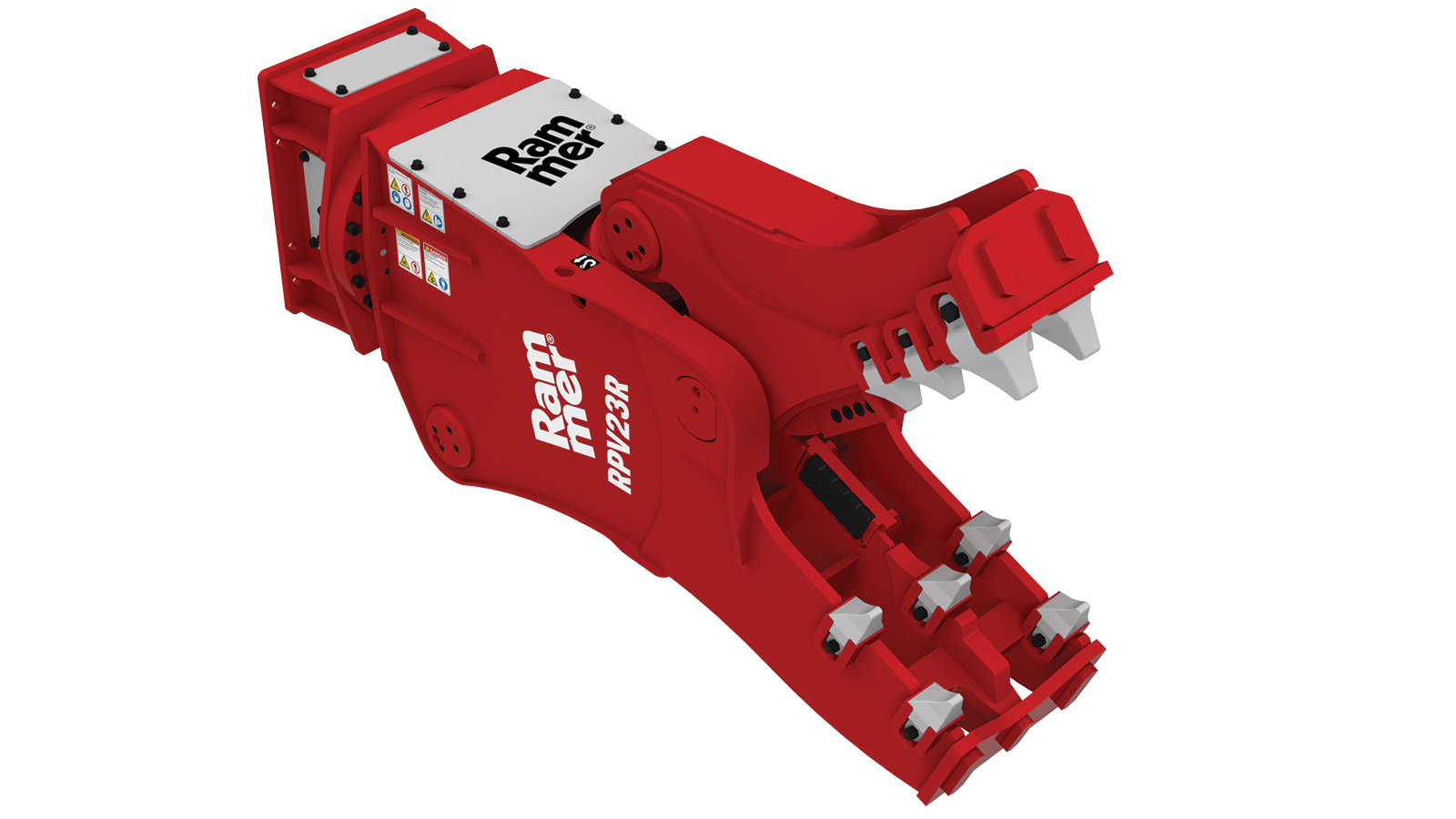

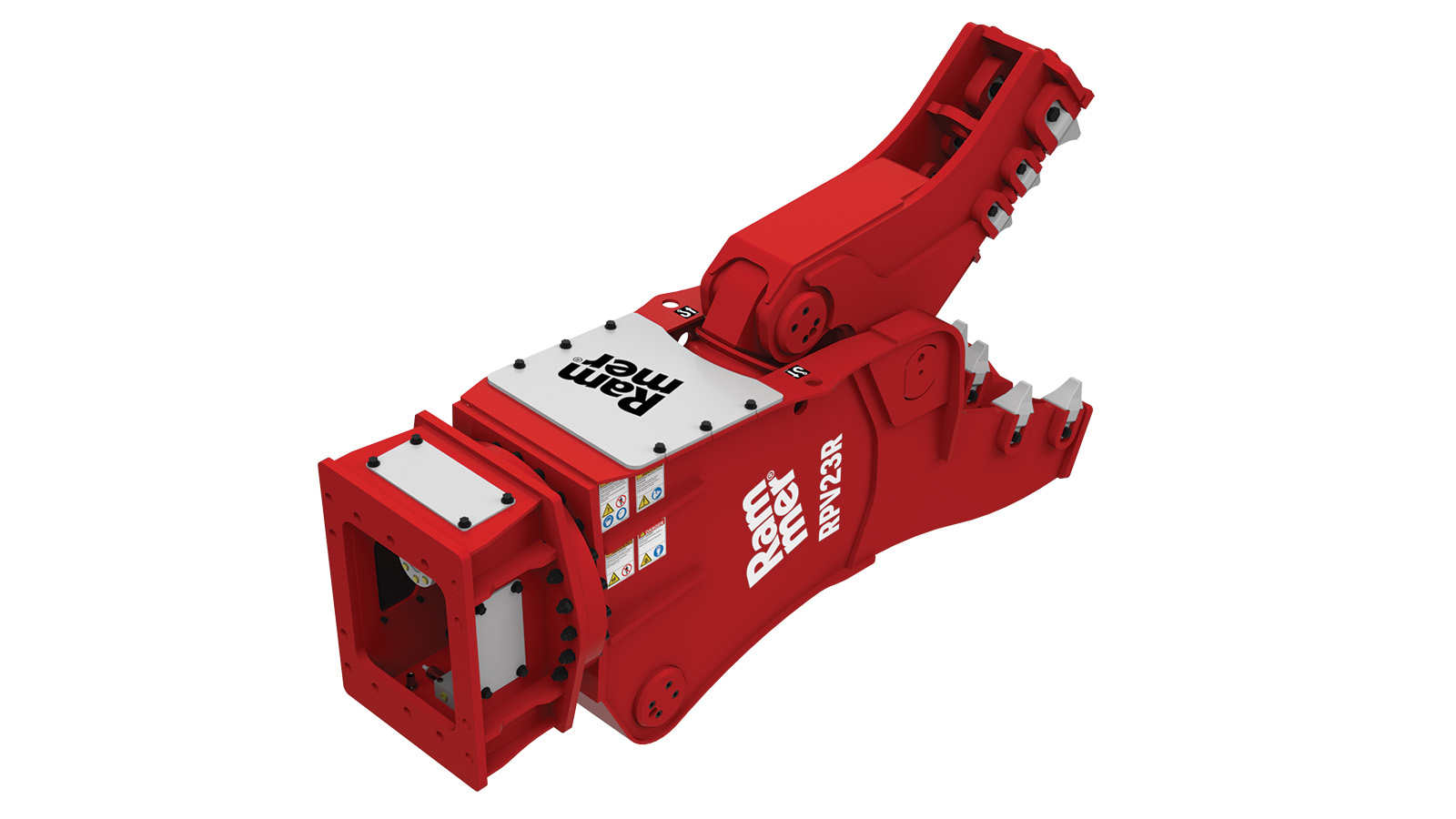

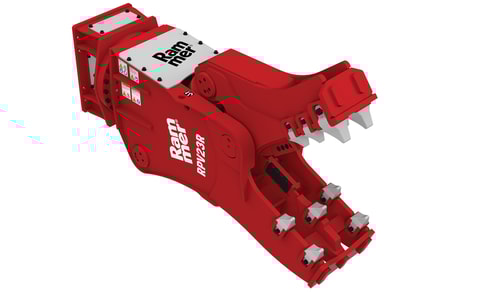

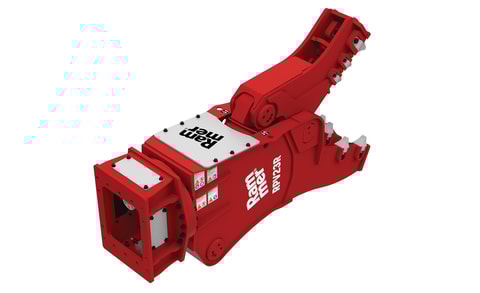

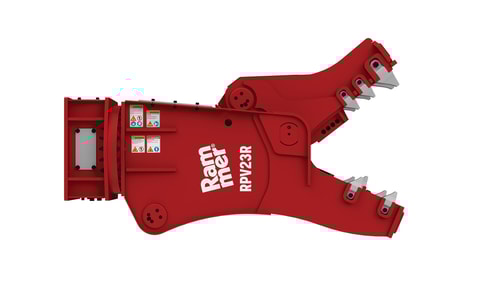

RPV23R
- Min. working weight, flange mounted *1
- 2,420 t (5,335 lb)
- Carrier weight, range *2
- 20 - 26 t (44,000 - 57,300 lb)
}
Balanced size and strength for high-productivity demolition
The RPV23R is well suited for 20–26 ton (44,000–57,300 lb) carriers, offering a strong balance of power and precision. Featuring an 840 mm (33 in) jaw opening and full hydraulic rotation, it enables efficient processing of concrete and reinforced material on demanding jobsites.
Product Specifications
- Min. working weight, flange mounted *1
- 2,420 t (5,335 lb)
- Weight
- 2,200 t (4,850 lb)
- Height
- 2,300 mm (90 in)
- Max. jaw opening
- 840 mm (33 in)
- Jaw width
- 500 mm (20 in)
- Min. working weight, flange mounted *1
- 2,420 t (5,335 lb)
- Weight
- 2,200 t (4,850 lb)
- Height
- 2,300 mm (90 in)
- Max. jaw opening
- 840 mm (33 in)
- Jaw width
- 500 mm (20 in)
- Operating pressure
- 340 bar (4,931 psi)
- Oil flow range
- 210 - 260 l/min (55 - 68 gal/min)
- Rotation
- 360 °
- Oil flow for hydraulic rotation
- 15.00 bar (4.00 psi)
- Carrier weight, range *2
- 20 - 26 t (44,000 - 57,300 lb)
- Max Pressure for Hydraulic Rotation
- 120 bar (1,740 psi)
Features & Applications
-
Features
- Hardox steel construction
Heavy-duty hardox steel construction ensures exceptional resistance to abrasion and impact in primary and secondary demolition applications. - Hydraulic rotation
Provides smooth, accurate positioning for efficient material processing and improved operator control. - Single inverted cylinder design
The protected inverted cylinder increases reliability and minimizes exposure to debris and damage. - Four-edge blades
Designed for extended wear life, blades can be rotated to maximize usability and reduce downtime. - Interchangeable high-penetration teeth
Teeth deliver aggressive concrete breakage and can be easily replaced to maintain peak performance. - Rotation control valve
Enables precise, controlled movements for improved handling and reduced machine stress. - Pressure relief valve
Protects the hydraulic circuit from pressure spikes, extending component life and system reliability. - Hardened pins and bushings
Reinforced wear points ensure durability under continuous high-load operation. - Regenerative valve
Faster cycle times increase productivity and efficiency (RPV23R–RPV110R models). - Double hydraulic motors
Provides consistent rotation power and torque under demanding loads (RPV23R–RPV110R models).
- Hardox steel construction
-
Applications
- Pulverizing
Separating rebar from concrete Preparation of material for crusher or landfill - Primary demolition
Demolition of standing buildings and structures. - Secondary demolition
Demolition of larger pieces on the ground (size reduction, separation and preliminary sorting tasks) - Recycling
Re-using parts or material which has been extracted from existing buildings or structures. Recyclng of products: Re-use of material or parts as such Recycling of material: Re-use of material for other purposes
