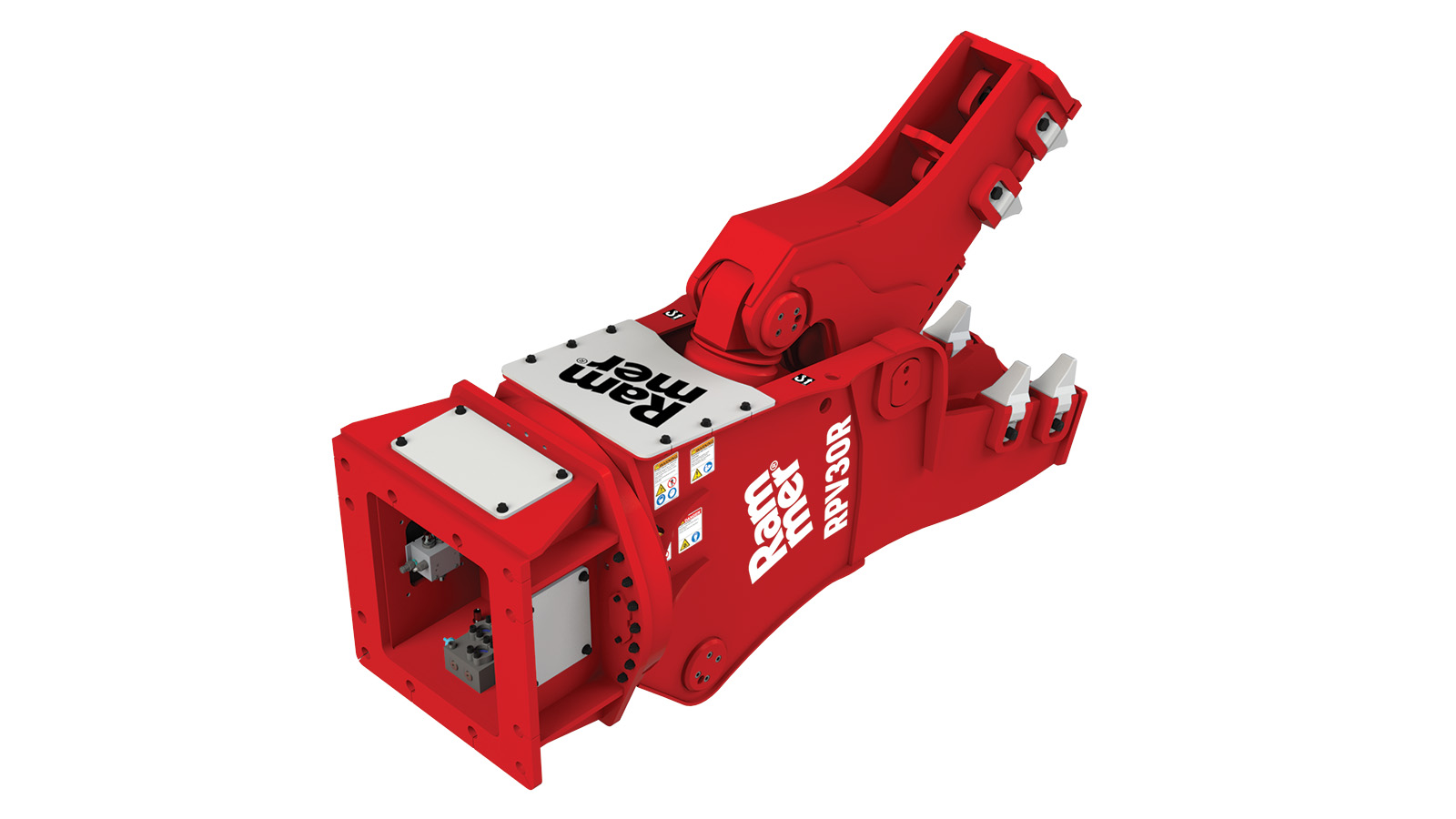

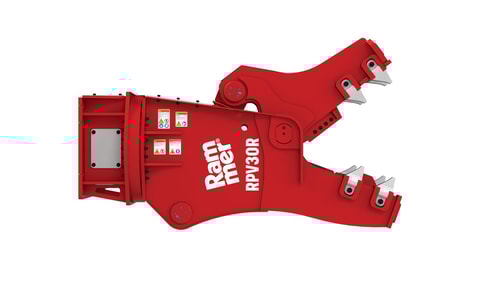

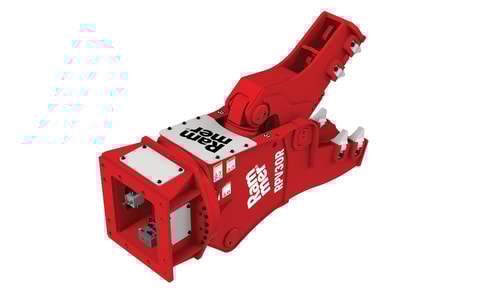

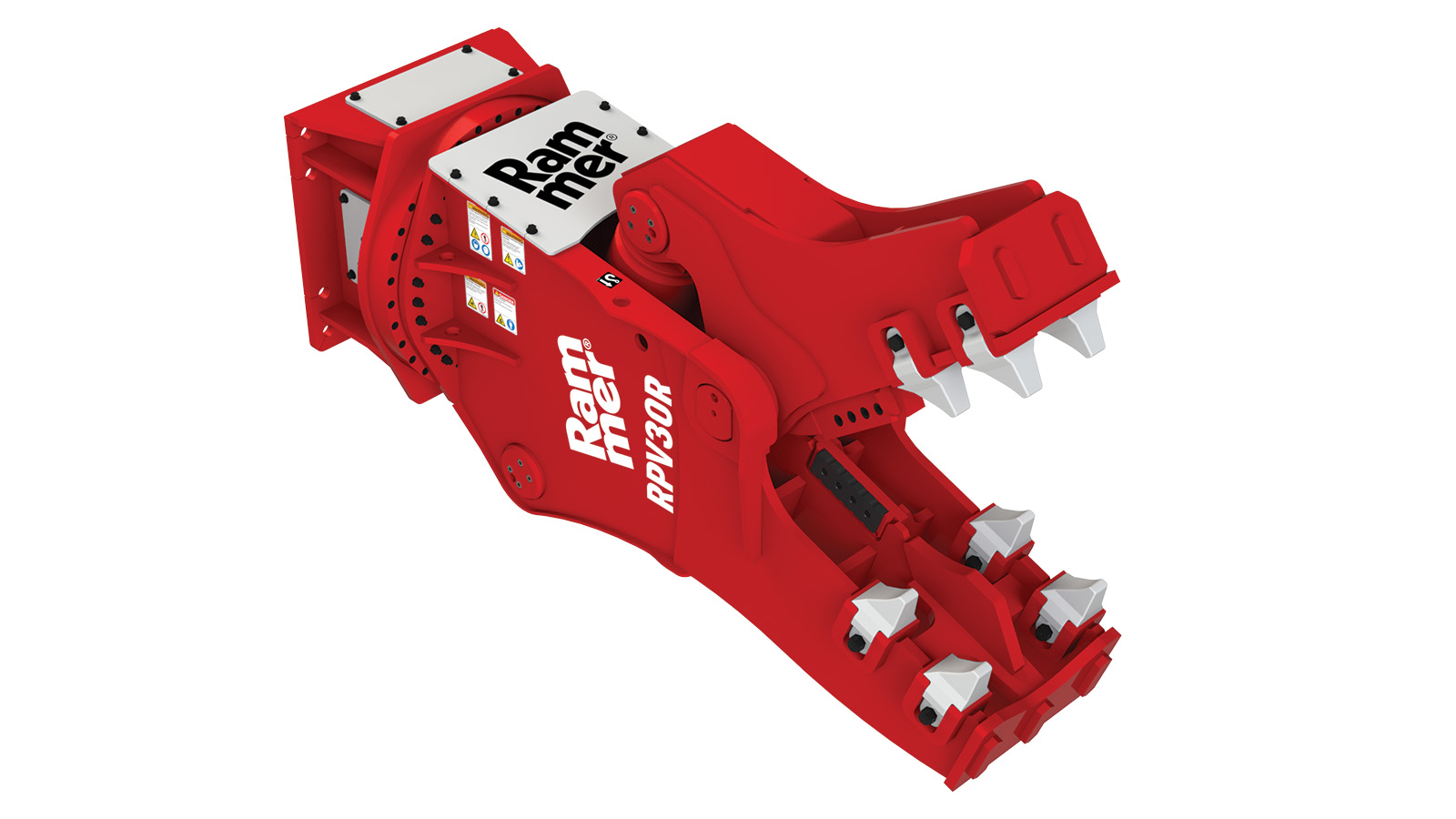

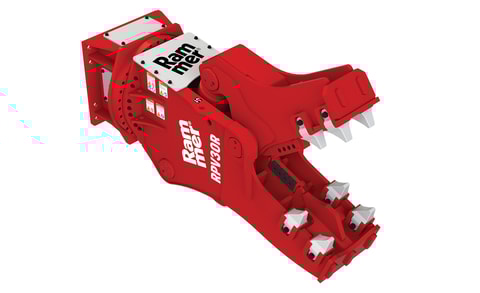

RPV30R
Rotating Pulverizers
RPV30R
- Min. working weight, flange mounted *1
- 2,800 t (6,173 lb)
- Carrier weight, range *2
- 25 - 32 t (55,000 - 70,500 lb)
}
Versatile rotating pulverizer for mid-size carriers
Designed for 25–32 ton (55,000–70,500 lb) excavators, the RPV30R provides dependable performance across a wide range of demolition applications. Its 880 mm (34.6 in) jaw opening and robust construction support high-volume material processing with excellent operator control.
Product Specifications
Technical specifications
| Min. working weight, flange mounted *1 |
2,800
t
(6,173 lb)
|
|---|---|
| Weight |
2,510
t
(5,534 lb)
|
| Height |
2,400
mm
(95 in)
|
| Max. jaw opening |
880
mm
(35 in)
|
| Jaw width |
530
mm
(21 in)
|
| Min. working weight, flange mounted *1 |
2,800
t
(6,173 lb)
|
|---|---|
| Weight |
2,510
t
(5,534 lb)
|
| Height |
2,400
mm
(95 in)
|
| Max. jaw opening |
880
mm
(35 in)
|
| Jaw width |
530
mm
(21 in)
|
| Operating pressure |
340
bar
(4,931 psi)
|
| Oil flow range |
250 - 300
l/min
(66 - 79 gal/min)
|
| Rotation |
360
°
|
| Oil flow for hydraulic rotation |
15.00
bar
(4.00 psi)
|
| Carrier weight, range *2 |
25 - 32
t
(55,000 - 70,500 lb)
|
| Max Pressure for Hydraulic Rotation |
120
bar
(1,740 psi)
|
Features & Applications
-
Features
- Hardox steel construction
Heavy-duty hardox steel construction ensures exceptional resistance to abrasion and impact in primary and secondary demolition applications. - Hydraulic rotation
Provides smooth, accurate positioning for efficient material processing and improved operator control. - Single inverted cylinder design
The protected inverted cylinder increases reliability and minimizes exposure to debris and damage. - Four-edge blades
Designed for extended wear life, blades can be rotated to maximize usability and reduce downtime. - Interchangeable high-penetration teeth
Teeth deliver aggressive concrete breakage and can be easily replaced to maintain peak performance. - Rotation control valve
Enables precise, controlled movements for improved handling and reduced machine stress. - Pressure relief valve
Protects the hydraulic circuit from pressure spikes, extending component life and system reliability. - Hardened pins and bushings
Reinforced wear points ensure durability under continuous high-load operation. - Regenerative valve
Faster cycle times increase productivity and efficiency (RPV23R–RPV110R models). - Double hydraulic motors
Provides consistent rotation power and torque under demanding loads (RPV23R–RPV110R models).
- Hardox steel construction
-
Applications
- Pulverizing
Separating rebar from concrete Preparation of material for crusher or landfill - Primary demolition
Demolition of standing buildings and structures. - Secondary demolition
Demolition of larger pieces on the ground (size reduction, separation and preliminary sorting tasks) - Recycling
Re-using parts or material which has been extracted from existing buildings or structures. Recyclng of products: Re-use of material or parts as such Recycling of material: Re-use of material for other purposes
- Pulverizing
