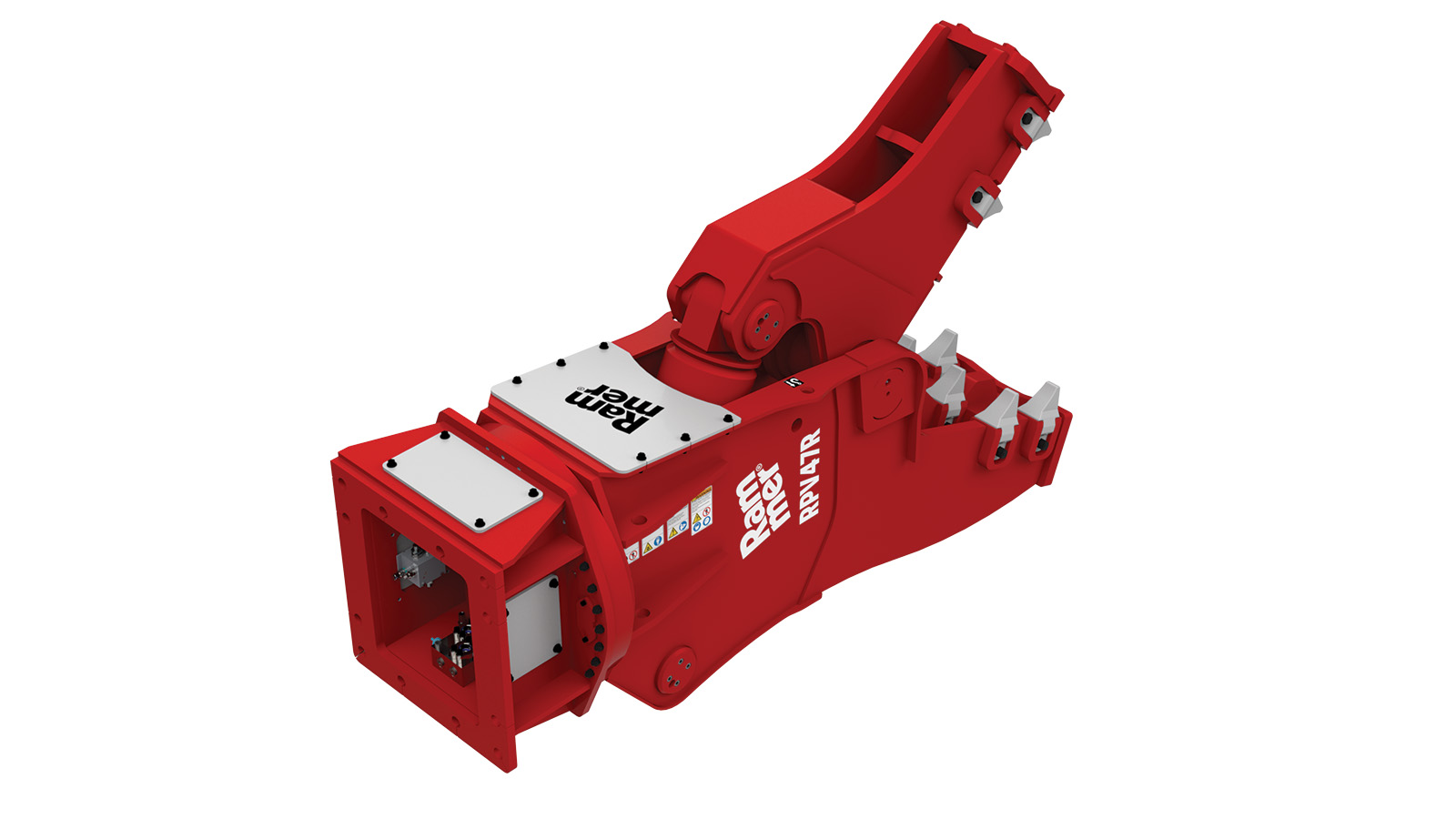

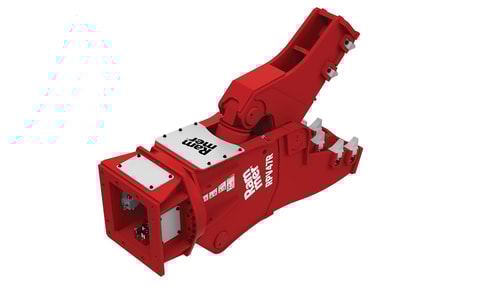

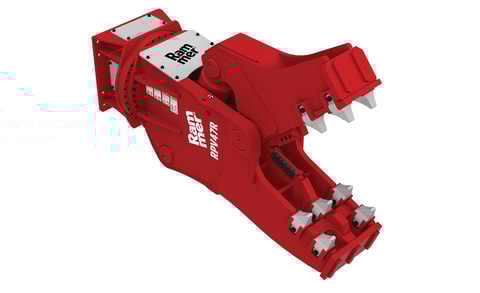

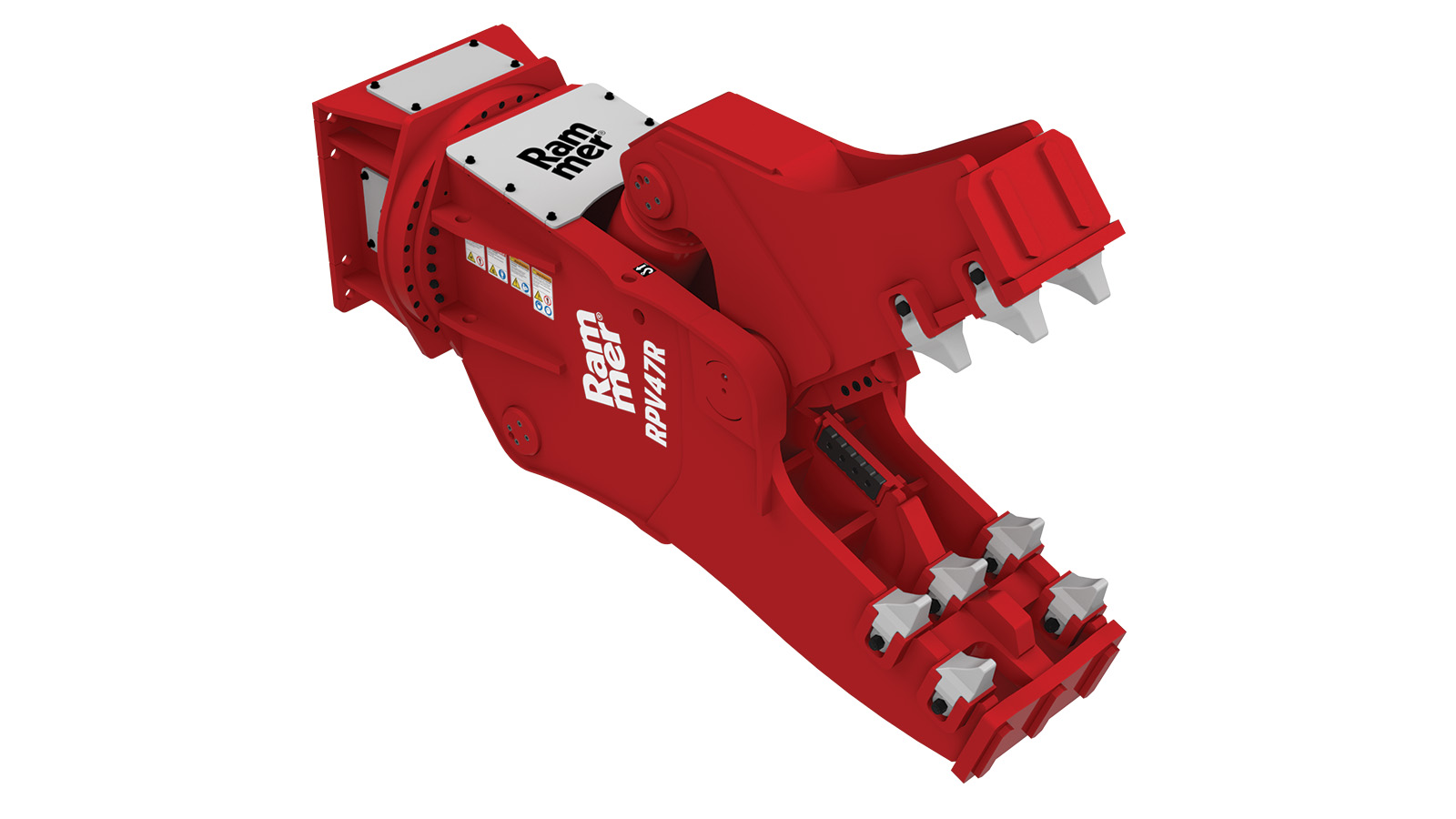

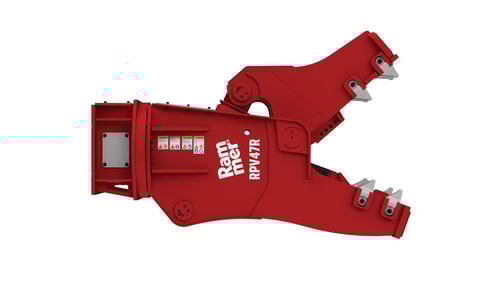

RPV47R
Rotating Pulverizers
RPV47R
- Min. working weight, flange mounted *1
- 4,300 kg (9,480 lb)
- Carrier weight, range *2
- 40 - 60 t (88,000 - 121,300 lb)
}
Heavy-duty performance for demanding demolition environments
Built for 40–60 ton (88,000–121,300 lb) excavators, the RPV47R offers powerful crushing capability for large-scale projects. Its 1,130 mm (45 in) jaw opening and fast cycle times support efficient breakdown of reinforced concrete and heavy structures.
Product Specifications
Technical specifications
| Min. working weight, flange mounted *1 |
4,300
kg
(9,480 lb)
|
|---|---|
| Weight |
3,930
t
(8,668 lb)
|
| Height |
2,850
mm
(112 in)
|
| Max. jaw opening |
1,130
mm
(45 in)
|
| Jaw width |
620
mm
(24 in)
|
| Min. working weight, flange mounted *1 |
4,300
kg
(9,480 lb)
|
|---|---|
| Weight |
3,930
t
(8,668 lb)
|
| Height |
2,850
mm
(112 in)
|
| Max. jaw opening |
1,130
mm
(45 in)
|
| Jaw width |
620
mm
(24 in)
|
| Operating pressure |
340
bar
(4,931 psi)
|
| Oil flow range |
300 - 350
l/min
(79 - 92 gal/min)
|
| Rotation |
360
°
|
| Oil flow for hydraulic rotation |
120.00
bar
(1,740.00 psi)
|
| Carrier weight, range *2 |
40 - 60
t
(88,000 - 121,300 lb)
|
| Max Pressure for Hydraulic Rotation |
120
bar
(1,740 psi)
|
Features & Applications
-
Features
- Hardox steel construction
Heavy-duty hardox steel construction ensures exceptional resistance to abrasion and impact in primary and secondary demolition applications. - Hydraulic rotation
Provides smooth, accurate positioning for efficient material processing and improved operator control. - Single inverted cylinder design
The protected inverted cylinder increases reliability and minimizes exposure to debris and damage. - Four-edge blades
Designed for extended wear life, blades can be rotated to maximize usability and reduce downtime. - Interchangeable high-penetration teeth
Teeth deliver aggressive concrete breakage and can be easily replaced to maintain peak performance. - Rotation control valve
Enables precise, controlled movements for improved handling and reduced machine stress. - Pressure relief valve
Protects the hydraulic circuit from pressure spikes, extending component life and system reliability. - Hardened pins and bushings
Reinforced wear points ensure durability under continuous high-load operation. - Regenerative valve
Faster cycle times increase productivity and efficiency (RPV23R–RPV110R models). - Double hydraulic motors
Provides consistent rotation power and torque under demanding loads (RPV23R-RPV110R models).
- Hardox steel construction
-
Applications
- Pulverizing
Separating rebar from concrete Preparation of material for crusher or landfill - Primary demolition
Demolition of standing buildings and structures. - Secondary demolition
Demolition of larger pieces on the ground (size reduction, separation and preliminary sorting tasks) - Recycling
Re-using parts or material which has been extracted from existing buildings or structures. Recyclng of products: Re-use of material or parts as such Recycling of material: Re-use of material for other purposes
- Pulverizing
