RSS24R
Scrap Shears
RSS24R
- Applications
-
- Scrapyards
- Structural steel
- Metal recycling
- Ship breaking
- Max. jaw opening
- 530 mm (21 in)
- Carrier weight at boom
- 14 - 18 t (30,800 - 39,700 lb)
}

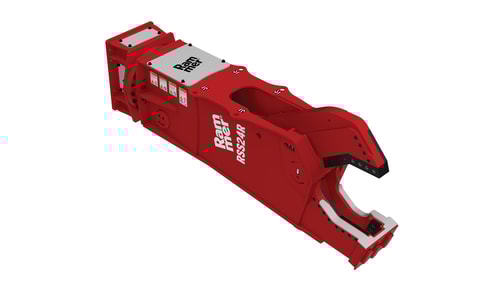

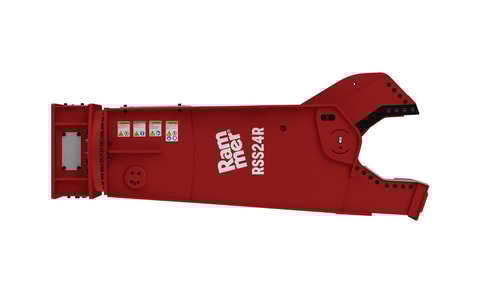

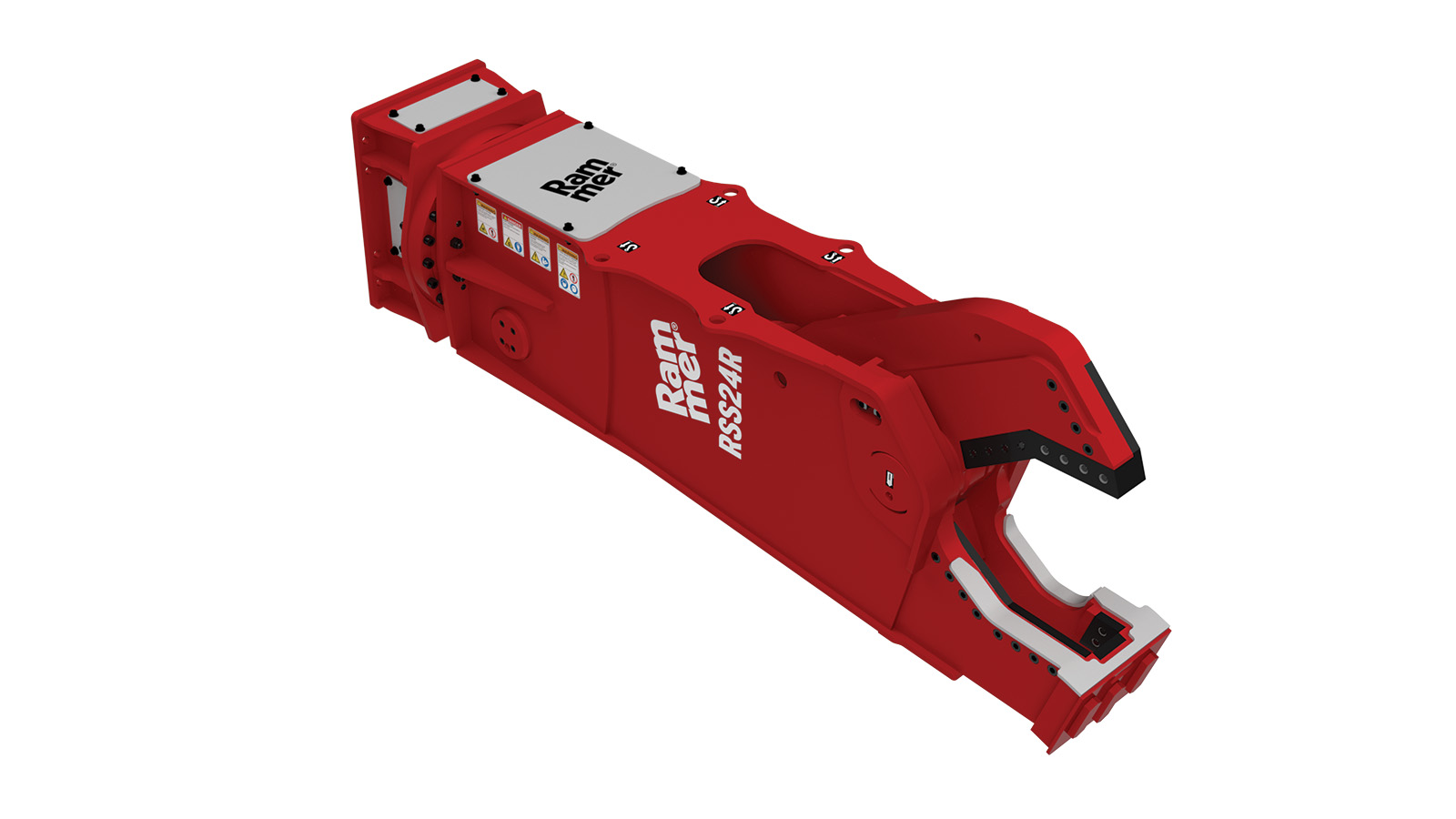

Compact scrap shear for precise cutting applications
The Rammer RSS24R is designed for 14–18 ton (30,800–39,700 lb) excavators at the boom, delivering accurate cutting performance for light demolition and scrap processing. With a 530 mm (21 in) jaw opening, it offers excellent control for tight job sites and detailed cutting work.
Product Specifications
Downloads
Technical specifications
| Weight |
2,080
kg
(4,586 lb)
|
|---|---|
| Length |
2,785
mm
(110 in)
|
| Max. jaw opening |
530
mm
(21 in)
|
| Jaw depth |
495
mm
(20 in)
|
| Operating pressure |
340
bar
(4,931 psi)
|
-
1) Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.
-
2) Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.
| Weight |
2,080
kg
(4,586 lb)
|
|---|---|
| Length |
2,785
mm
(110 in)
|
| Max. jaw opening |
530
mm
(21 in)
|
| Jaw depth |
495
mm
(20 in)
|
| Operating pressure |
340
bar
(4,931 psi)
|
| Oil flow range |
200 - 220
l/min
(53 - 58 gal/min)
|
| Rotation |
360
°
|
| Max pressure for hydraulic rotation |
120
bar
(1,740 psi)
|
| Oil flow for hydraulic rotation |
15
l/min
(4 gal/min)
|
| Carrier weight at bucket |
20 - 28
t
(44,000 - 61,700 lb)
|
| Carrier weight at boom |
14 - 18
t
(30,800 - 39,700 lb)
|
Features & Applications
-
Features
- Hardox steel construction
Manufactured from high-strength hardox steel, the shear is built to withstand extreme cutting forces while maintaining long-term structural integrity. - Hydraulic rotation
Hydraulic rotation allows the operator to precisely align the shear for optimal cutting angles, improving efficiency and reducing repositioning time. - Single inverted cylinder design
The inverted cylinder is protected from debris and damage, ensuring reliable performance and reduced maintenance requirements. - Reversible blade
The reversible blade design extends wear life and lowers operating costs by allowing blades to be flipped and reused before replacement is required. - Rotation control valve
Ensures controlled, smooth movements during operation, improving cutting precision and operator confidence. - Pressure relief valve
Protects the hydraulic system from pressure surges, helping prevent component damage and unplanned downtime. - Hardened pins and bushings
Reinforced wear components increase durability and support long service intervals in high-cycle demolition work.
- Hardox steel construction
-
Applications
- Steel structure demolition
Cutting and dismantling structural steel during demolition projects. - Scrap processing
Cutting and reducing scrap metal into manageable sizes for further handling and processing. - Rebar cutting
Cutting reinforcing steel recovered from concrete demolition and processing. - Recycling
Processing metal and steel materials to prepare them for further recycling.
- Steel structure demolition
