RSS30R
Request a quote
Scrap Shears

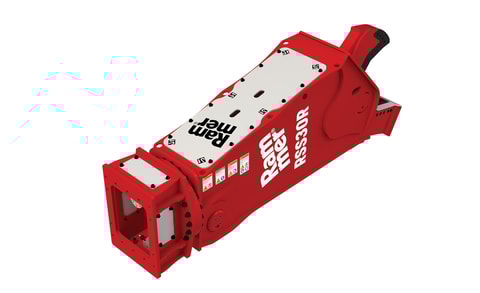

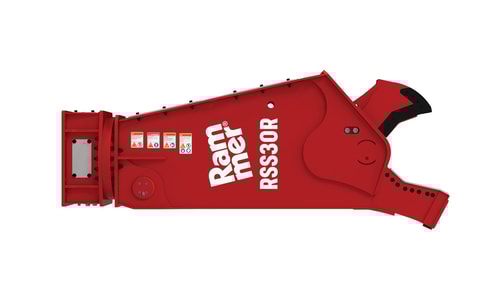

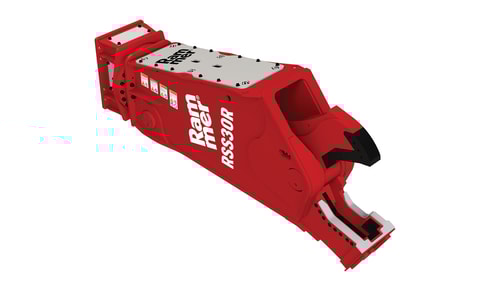

RSS30R
- Applications
-
- Scrapyards
- Structural steel
- Metal recycling
- Ship breaking
- Max. jaw opening
- 580 mm (23 in)
}
Efficient cutting performance for small demolition jobs
Built for 16–22 ton (35,300–48,500 lb) carriers, the RSS30R provides dependable cutting force in compact demolition and recycling applications. Its 580 mm (23 in) jaw opening allows operators to process steel and scrap efficiently while maintaining precise control.
Product Specifications
- Weight
- 2,530 kg (5,578 lb)
- Length
- 2,840 mm (112 in)
- Max. jaw opening
- 580 mm (23 in)
- Jaw depth
- 510 mm (20 in)
- Operating pressure
- 340 bar (4,931 psi)
- Weight
- 2,530 kg (5,578 lb)
- Length
- 2,840 mm (112 in)
- Max. jaw opening
- 580 mm (23 in)
- Jaw depth
- 510 mm (20 in)
- Operating pressure
- 340 bar (4,931 psi)
- Oil flow range
- 200 - 260 l/min (53 - 68 gal/min)
- Rotation
- 360 °
- Max pressure for hydraulic rotation
- 120 bar (1,740 psi)
- Oil flow for hydraulic rotation
- 15 l/min (4 galmin)
- Carrier weight at Bucket
- 26 - 34 t (57,300 - 75,000 lb)
- Carrier weight at Boom
- 16 - 22 t (35,300 - 48,500 lb)
Features & Applications
-
Features
- Hardox steel construction
Manufactured from high-strength hardox steel, the shear is built to withstand extreme cutting forces while maintaining long-term structural integrity. - Hydraulic rotation
Hydraulic rotation allows the operator to precisely align the shear for optimal cutting angles, improving efficiency and reducing repositioning time. - Single inverted cylinder design
The inverted cylinder is protected from debris and damage, ensuring reliable performance and reduced maintenance requirements. - Reversible blade
The reversible blade design extends wear life and lowers operating costs by allowing blades to be flipped and reused before replacement is required. - Rotation control valve
Ensures controlled, smooth movements during operation, improving cutting precision and operator confidence. - Pressure relief valve
Protects the hydraulic system from pressure surges, helping prevent component damage and unplanned downtime. - Hardened pins and bushings
Reinforced wear components increase durability and support long service intervals in high-cycle demolition work. - Regenerative valve
Faster opening and closing cycles improve overall productivity and job efficiency (RSS30R–RSS120R). - Double hydraulic motor
Dual motors deliver powerful, reliable rotation even in challenging cutting applications (RSS30R–RSS120R models).
- Hardox steel construction
-
Applications
- Scrapyards
Scrapyards (also known as a wrecking yard, junkyard, or breaker's yard) trade in scrap. - Structural steel
Structural steel is primarily removed during a demolition project by means of an attachment, with cutter blades. - Metal recycling
The metal recycling industry encompasses a wide range of metals. The more frequently recycled metals are scrap steels. - Ship breaking
Ship breaking or ship demolition is a type of ship disposal involving the breaking up of ships for either a source of parts, which can be sold for re-use, or for the extraction of raw materials, mainly scrap.
- Scrapyards
