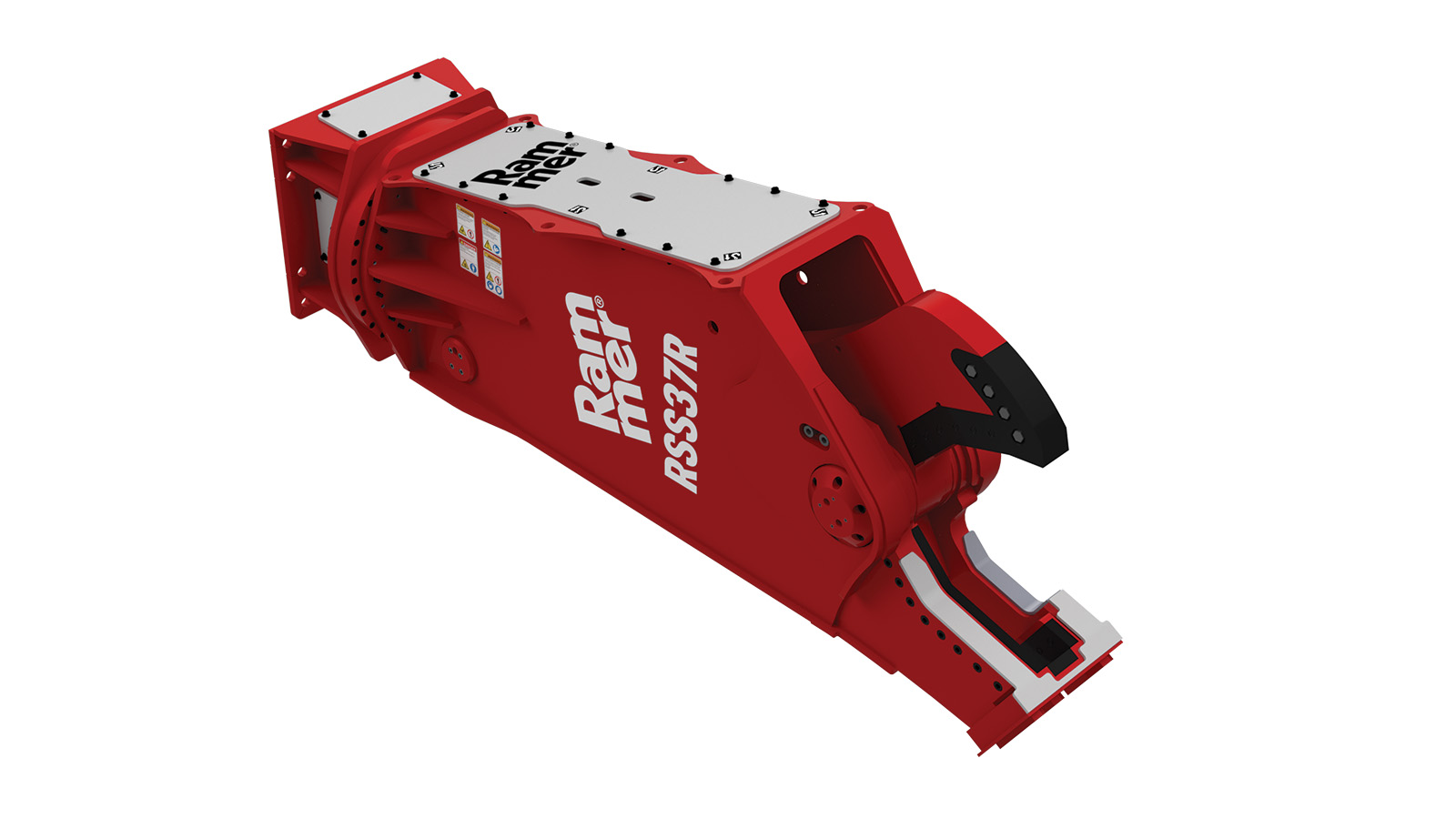

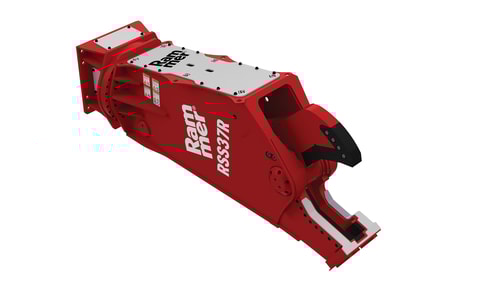

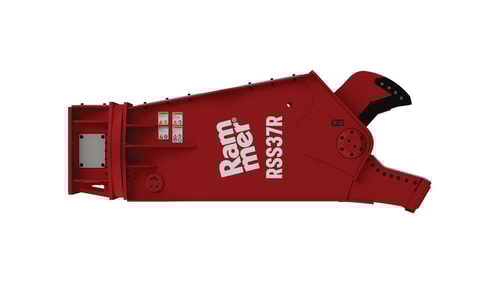

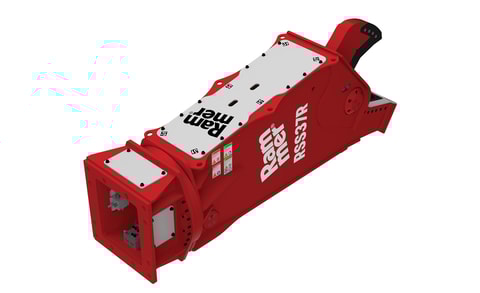

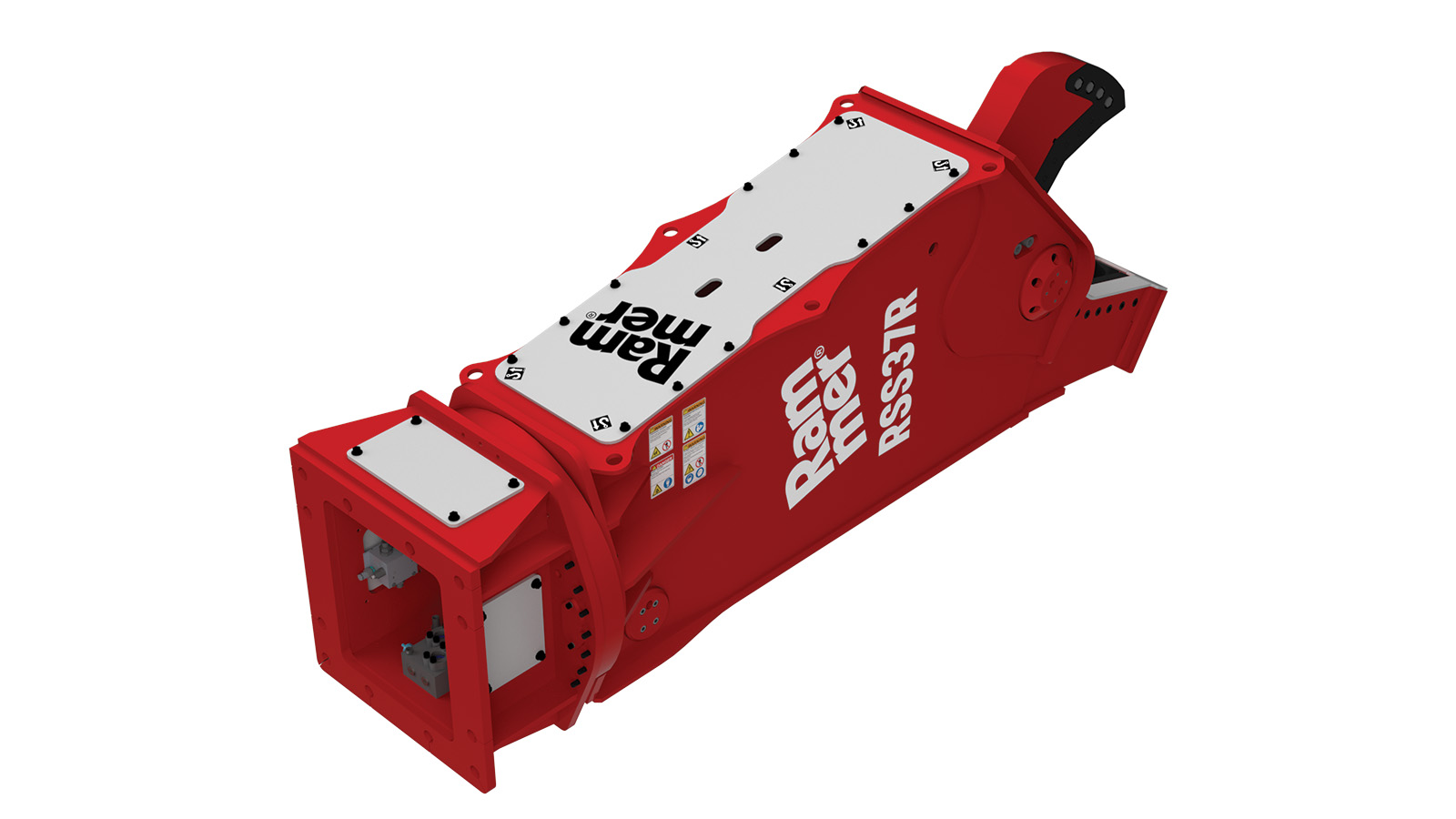

RSS37R
Scrap Shears
RSS37R
- Applications
-
- Scrapyards
- Structural steel
- Metal recycling
- Ship breaking
- Max. jaw opening
- 690 mm (70 in)
}
Balanced shear design for mid-size demolition work
The RSS35R is suited for 22–30 ton (48,500–66,100 lb) excavators, offering a strong balance of power and maneuverability. Featuring a 690 mm (27 in) jaw opening, it supports efficient cutting of structural steel and reinforced materials on active jobsites.
Product Specifications
Technical specifications
| Weight |
3,200
kg
(7,054 lb)
|
|---|---|
| Length |
3,170
mm
(125 in)
|
| Max. jaw opening |
690
mm
(70 in)
|
| Jaw depth |
572
mm
(23 in)
|
| Operating pressure |
340
bar
(4,931 psi)
|
| Weight |
3,200
kg
(7,054 lb)
|
|---|---|
| Length |
3,170
mm
(125 in)
|
| Max. jaw opening |
690
mm
(70 in)
|
| Jaw depth |
572
mm
(23 in)
|
| Operating pressure |
340
bar
(4,931 psi)
|
| Oil flow range |
240 - 300
l/min
(63 - 79 gal/min)
|
| Rotation |
360
°
|
| Max pressure for hydraulic rotation |
120
bar
(1,740 psi)
|
| Oil flow for hydraulic rotation |
15
l/min
(4 galmin)
|
| Carrier weight at Bucket |
34 - 40
t
(75,000 - 88,100 lb)
|
| Carrier weight at Boom |
22 - 30
t
(48,500 - 66,100 lb)
|
Features & Applications
-
Features
- Hardox steel construction
Manufactured from high-strength hardox steel, the shear is built to withstand extreme cutting forces while maintaining long-term structural integrity. - Hydraulic rotation
Hydraulic rotation allows the operator to precisely align the shear for optimal cutting angles, improving efficiency and reducing repositioning time. - Single inverted cylinder design
The inverted cylinder is protected from debris and damage, ensuring reliable performance and reduced maintenance requirements. - Reversible blade
The reversible blade design extends wear life and lowers operating costs by allowing blades to be flipped and reused before replacement is required. - Rotation control valve
Ensures controlled, smooth movements during operation, improving cutting precision and operator confidence. - Pressure relief valve
Protects the hydraulic system from pressure surges, helping prevent component damage and unplanned downtime. - Hardened pins and bushings
Reinforced wear components increase durability and support long service intervals in high-cycle demolition work. - Regenerative valve
Faster opening and closing cycles improve overall productivity and job efficiency (RSS30R–RSS120R). - Double hydraulic motor
Dual motors deliver powerful, reliable rotation even in challenging cutting applications (RSS30R–RSS120R models).
- Hardox steel construction
-
Applications
- Scrapyards
Scrapyards (also known as a wrecking yard, junkyard, or breaker's yard) trade in scrap. - Structural steel
Structural steel is primarily removed during a demolition project by means of an attachment, with cutter blades. - Metal recycling
The metal recycling industry encompasses a wide range of metals. The more frequently recycled metals are scrap steels. - Ship breaking
Ship breaking or ship demolition is a type of ship disposal involving the breaking up of ships for either a source of parts, which can be sold for re-use, or for the extraction of raw materials, mainly scrap.
- Scrapyards
