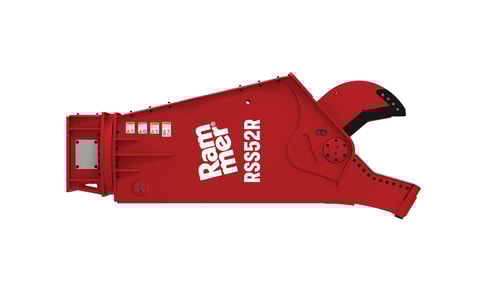

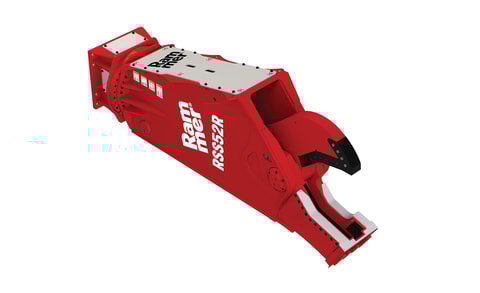

RSS52R
Scrap Shears
RSS52R
- Applications
-
- Scrapyards
- Structural steel
- Metal recycling
- Ship breaking
- Max. jaw opening
- 700 mm (28 in)
}
Versatile scrap shear for increased jobsite productivity
Designed for 28–35 ton (61,700–77,200 lb) carriers, the RSS52R delivers increased cutting capacity for demanding demolition tasks. With a 700 mm (28 in) jaw opening, it enables efficient processing of thicker materials while maintaining smooth operation.
Product Specifications
Technical specifications
| Weight |
4,365
kg
(9,623 lb)
|
|---|---|
| Length |
3,361
mm
(132 in)
|
| Max. jaw opening |
700
mm
(28 in)
|
| Jaw depth |
690
mm
(27 in)
|
| Operating pressure |
340
bar
(4,931 psi)
|
| Weight |
4,365
kg
(9,623 lb)
|
|---|---|
| Length |
3,361
mm
(132 in)
|
| Max. jaw opening |
700
mm
(28 in)
|
| Jaw depth |
690
mm
(27 in)
|
| Operating pressure |
340
bar
(4,931 psi)
|
| Oil flow range |
300 - 350
l/min
(79 - 92 gal/min)
|
| Rotation |
360
°
|
| Max pressure for hydraulic rotation |
120
bar
(1,740 psi)
|
| Oil flow for hydraulic rotation |
40
l/min
(11 galmin)
|
| Carrier weight at Bucket |
45 - 60
t
(99,200 - 132,300 lb)
|
| Carrier weight at Boom |
28 - 35
t
(61,700 - 77,200 lb)
|
Features & Applications
-
Features
- Hardox steel construction
Manufactured from high-strength hardox steel, the shear is built to withstand extreme cutting forces while maintaining long-term structural integrity. - Hydraulic rotation
Hydraulic rotation allows the operator to precisely align the shear for optimal cutting angles, improving efficiency and reducing repositioning time. - Single inverted cylinder design
The inverted cylinder is protected from debris and damage, ensuring reliable performance and reduced maintenance requirements. - Reversible blade
The reversible blade design extends wear life and lowers operating costs by allowing blades to be flipped and reused before replacement is required. - Rotation control valve
Ensures controlled, smooth movements during operation, improving cutting precision and operator confidence. - Pressure relief valve
Protects the hydraulic system from pressure surges, helping prevent component damage and unplanned downtime. - Hardened pins and bushings
Reinforced wear components increase durability and support long service intervals in high-cycle demolition work. - Regenerative valve
Faster opening and closing cycles improve overall productivity and job efficiency (RSS30R–RSS120R). - Double hydraulic motor
Dual motors deliver powerful, reliable rotation even in challenging cutting applications (RSS30R–RSS120R models).
- Hardox steel construction
-
Applications
- Scrapyards
Scrapyards (also known as a wrecking yard, junkyard, or breaker's yard) trade in scrap. - Structural steel
Structural steel is primarily removed during a demolition project by means of an attachment, with cutter blades. - Metal recycling
The metal recycling industry encompasses a wide range of metals. The more frequently recycled metals are scrap steels. - Ship breaking
Ship breaking or ship demolition is a type of ship disposal involving the breaking up of ships for either a source of parts, which can be sold for re-use, or for the extraction of raw materials, mainly scrap.
- Scrapyards
