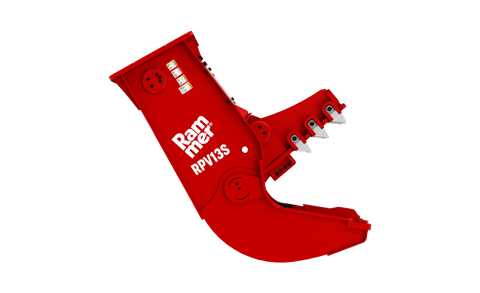

RPV13S

The RPV13S is ideal attachment for secondary demolition.

Built for 12–17 ton carriers (26,500–37,500 lbs), the RPV13S balances power and agility. Featuring a 27 in (700 mm) jaw opening and weighing 1,220 kg (2,690 lbs), this model is engineered for reliable secondary demolition. With optimized oil flow and 310 bar operating pressure, it delivers the crushing force contractors need without sacrificing control.

Product Specifications

Applications: Pulverizing / Secondary demolition / Recycling
Min. working weight: 490 kg (1,080 lb)
Weight: 1,200 kg (2,690 lb)
Height: 1,920.00000 mm (76.00000 in)
Max. jaw opening: 700.00 mm (27.00 in)
Jaw width: 400 mm (16 in)
Max. operating pressure: 310 bar (4,495 psi)
Oil flow range: 180 - 220 l/min (47 - 58 gal/min)
Carrier weight, range *1: 12 - 17 (35,200 - 44,000 )

Features & Applications

Features
- Grated jaw design
  The fixed jaw allows crushed material to pass through increasing productivity
- Manufactured from HB400 steel
  Highly resistant material to work on concrete.
- Field replaceable cutting blades
  Field replaceable, reversible and adjustable cutting blades increase the cutting capacity and availability. This reduces maintenance costs and keeps performance at a high level.
- Hardened pins and bushings
  Hardened parts are more wear resistant, extending their working life and lowering owning and operating costs
Applications
- Pulverizing
  Separating rebar from concrete Preparation of material for crusher or landfill
- Secondary demolition
  Demolition of larger pieces on the ground (size reduction, separation and preliminary sorting tasks)
- Recycling
  Re-using parts or material which has been extracted from existing buildings or structures. Recyclng of products: Re-use of material or parts as such Recycling of material: Re-use of material for other purposes
