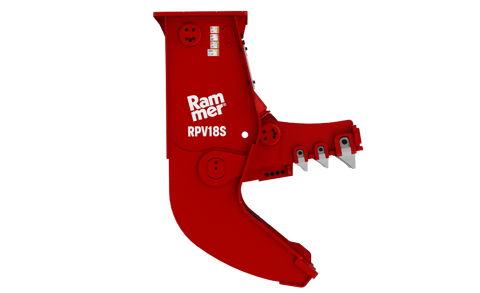

RPV18S
Request a quoteStatic Pulverizers
RPV18S
- Min. working weight
- 1,065 kg (2,350 lb)
The RPV18S is ideal attachment for secondary demolition.
Product Specifications
- Applications
-
Pulverizing / Secondary demolition / Recycling
- Min. working weight
- 1,065 kg (2,350 lb)
- Weight
- 970.00 kg (2,140.00 lb)
- Height
- 1,600.00 mm (63.00 in)
- Max. jaw opening
- 620.00 mm (24.40 in)
- Applications
-
Pulverizing / Secondary demolition / Recycling
- Min. working weight
- 1,065 kg (2,350 lb)
- Weight
- 970.00 kg (2,140.00 lb)
- Height
- 1,600.00 mm (63.00 in)
- Max. jaw opening
- 620.00 mm (24.40 in)
- Jaw width
- 460.00 mm (18.10 in)
- Max. operating pressure
- 320.00 bar (4,640.00 psi)
- Oil flow range
- 100.00 - 180.00 l/min (26.40 - 47.60 gal/min)
- Carrier weight, range *1
- 10.00 - 15.00 t (22,000.00 - 33,000.00 lb)
- Features
-
Grated jaw design / Manufactured from HB400 steel / Hardened pins and bushings / Hydraulic cylinder shielding / Field replaceable symmetrical cutter blades / Field replaceable pulverizing plate / Field replaceable loading teeth
1 Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.
Specifications are subject to change without notice (Tuesday, September 6, 2022)
Features & Applications
-
Features
- Hydraulic cylinder shielding
The cylinders are fully protected throughout the working cycle. Increasing durability and extending service intervals. - Grated jaw design
The fixed jaw allows crushed material to pass through increasing productivity - Manufactured from HB400 steel
Highly resistant material to work on concrete. - Field replaceable symmetrical cutter blades
Field replaceable and adjustable symmetrical cutter blades minimize downtime and significantly increase the working life of wear parts - Field replaceable pulverizing plate
Minimizing downtime as there is no need for welding/rebuilding Three different designs for different pulverizing applications. Please contact your dealer for advise on proper application. - Field replaceable loading teeth
A wearpart for the loading and sorting of material. Functionality and replaceability like an bucket tooth. - Hardened pins and bushings
Hardened parts are more wear resistant, extending their working life and lowering owning and operating costs
- Hydraulic cylinder shielding
-
Applications
- Pulverizing
Separating rebar from concrete Preparation of material for crusher or landfill - Secondary demolition

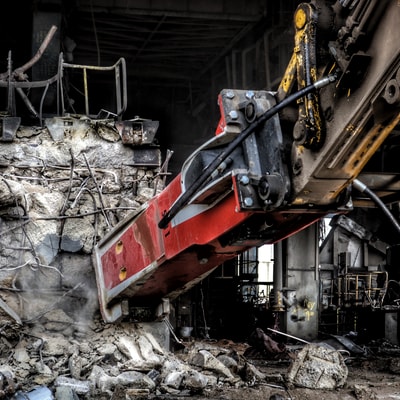

Demolition of larger pieces on the ground (size reduction, separation and preliminary sorting tasks) - Recycling
Re-using parts or material which has been extracted from existing buildings or structures. Recyclng of products: Re-use of material or parts as such Recycling of material: Re-use of material for other purposes
- Pulverizing
