RPV38S
Static Pulverizers
RPV38S
- Min. working weight
- 3,080 kg (6,790 lb)

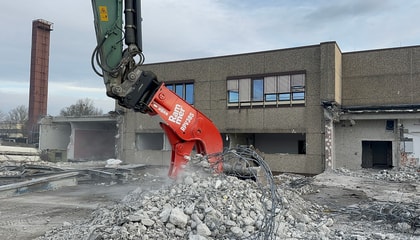

The RPV38S is ideal attachment for secondary demolition
For contractors stepping into larger demolition projects, the RPV38S matches perfectly with 30–45 ton excavators (66,100–99,200 lbs). With a 41 in (1,040 mm) jaw opening and weighing 3,100 kg (6,834 lbs), it’s built to process substantial concrete volumes efficiently. High oil flow capacity supports fast, productive crushing cycles.
Product Specifications
Technical specifications
| Applications |
Pulverizing / Secondary demolition / Recycling
|
|---|---|
| Min. working weight |
3,080
kg
(6,790 lb)
|
| Weight |
2,800
kg
(6,173 lb)
|
| Height |
2,660
mm
(106 in)
|
| Max. jaw opening |
1,040
mm
(43 in)
|
| Applications |
Pulverizing / Secondary demolition / Recycling
|
|---|---|
| Min. working weight |
3,080
kg
(6,790 lb)
|
| Weight |
2,800
kg
(6,173 lb)
|
| Height |
2,660
mm
(106 in)
|
| Max. jaw opening |
1,040
mm
(43 in)
|
| Jaw width |
560
mm
(22 in)
|
| Max. operating pressure |
340
bar
(4,931 psi)
|
| Oil flow range |
280 - 330
l/min
(73 - 87 gal/min)
|
| Carrier weight, range *1 |
30 - 45
(66,100 - 99,200 )
|
| Features |
Hardened pins and bushings
|
Features & Applications
-
Features
- Speed valve
Shorter working cycles to increase productivity - Hydraulic cylinder shielding
The cylinders are fully protected throughout the working cycle. Increasing durability and extending service intervals. - Grated jaw design
The fixed jaw allows crushed material to pass through increasing productivity - Manufactured from HB400 steel
Highly resistant material to work on concrete. - Field replaceable symmetrical cutter blades
Field replaceable and adjustable symmetrical cutter blades minimize downtime and significantly increase the working life of wear parts - Field replaceable pulverizing plate
Minimizing downtime as there is no need for welding/rebuilding Three different designs for different pulverizing applications. Please contact your dealer for advise on proper application. - Field replaceable loading teeth
A wearpart for the loading and sorting of material. Functionality and replaceability like an bucket tooth. - Hardened pins and bushings
Hardened parts are more wear resistant, extending their working life and lowering owning and operating costs
- Speed valve
-
Applications
- Pulverizing
Separating rebar from concrete Preparation of material for crusher or landfill - Secondary demolition
Demolition of larger pieces on the ground (size reduction, separation and preliminary sorting tasks) - Recycling
Re-using parts or material which has been extracted from existing buildings or structures. Recyclng of products: Re-use of material or parts as such Recycling of material: Re-use of material for other purposes
- Pulverizing
