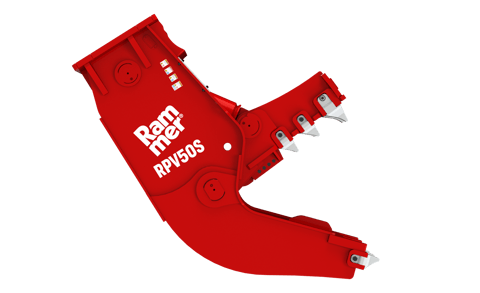

RPV50S
Static Pulverizers
RPV50S
- Min. working weight
- 4,180 kg (9,220 lb)
The RPV50S is ideal attachment for secondary demolition.
The RPV50S is built for heavy-duty secondary demolition on 40–60 ton carriers (88,200–132,300 lbs). Featuring a 42.5 in (1,080 mm) jaw opening and an operating weight of 4,700 kg (10,360 lbs), it delivers exceptional crushing force for large-scale concrete processing. Engineered for durability, uptime, and consistent performance.
Product Specifications
Technical specifications
| Applications |
Pulverizing / Secondary demolition / Recycling
|
|---|---|
| Min. working weight |
4,180
kg
(9,220 lb)
|
| Weight |
4,500
kg
(9,920 lb)
|
| Height |
2,700
mm
(106 in)
|
| Max. jaw opening |
1,080
mm
(43 in)
|
| Applications |
Pulverizing / Secondary demolition / Recycling
|
|---|---|
| Min. working weight |
4,180
kg
(9,220 lb)
|
| Weight |
4,500
kg
(9,920 lb)
|
| Height |
2,700
mm
(106 in)
|
| Max. jaw opening |
1,080
mm
(43 in)
|
| Jaw width |
660
mm
(26 in)
|
| Max. operating pressure |
340
bar
(4,931 psi)
|
| Oil flow range |
280.00 - 320.00
l/min
(74.00 - 84.50 gal/min)
|
| Carrier weight, range *1 |
40 - 60
(88,200 - 132,300 )
|
| Features |
Hardened pins and bushings
|
Features & Applications
-
Features
- Speed valve
Shorter working cycles to increase productivity - Hydraulic cylinder shielding
The cylinders are fully protected throughout the working cycle. Increasing durability and extending service intervals. - Grated jaw design
The fixed jaw allows crushed material to pass through increasing productivity - Manufactured from HB400 steel
Highly resistant material to work on concrete. - Field replaceable symmetrical cutter blades
Field replaceable and adjustable symmetrical cutter blades minimize downtime and significantly increase the working life of wear parts - Field replaceable pulverizing plate
Minimizing downtime as there is no need for welding/rebuilding Three different designs for different pulverizing applications. Please contact your dealer for advise on proper application. - Field replaceable loading teeth
A wearpart for the loading and sorting of material. Functionality and replaceability like an bucket tooth. - Hardened pins and bushings
Hardened parts are more wear resistant, extending their working life and lowering owning and operating costs
- Speed valve
-
Applications
- Pulverizing
Separating rebar from concrete Preparation of material for crusher or landfill - Secondary demolition
Demolition of larger pieces on the ground (size reduction, separation and preliminary sorting tasks) - Recycling
Re-using parts or material which has been extracted from existing buildings or structures. Recyclng of products: Re-use of material or parts as such Recycling of material: Re-use of material for other purposes
- Pulverizing
