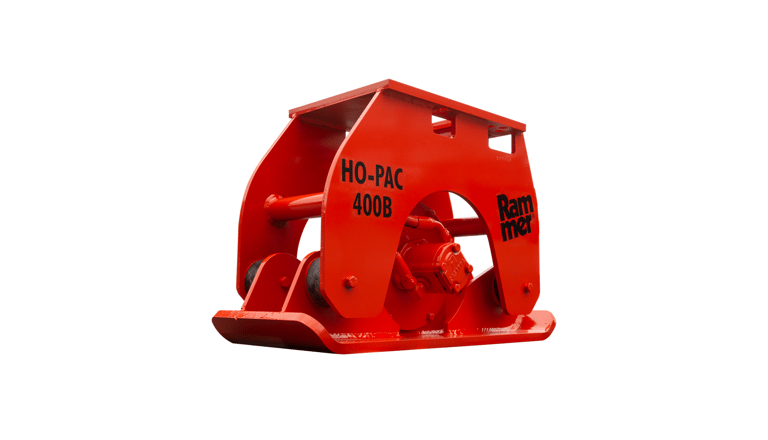

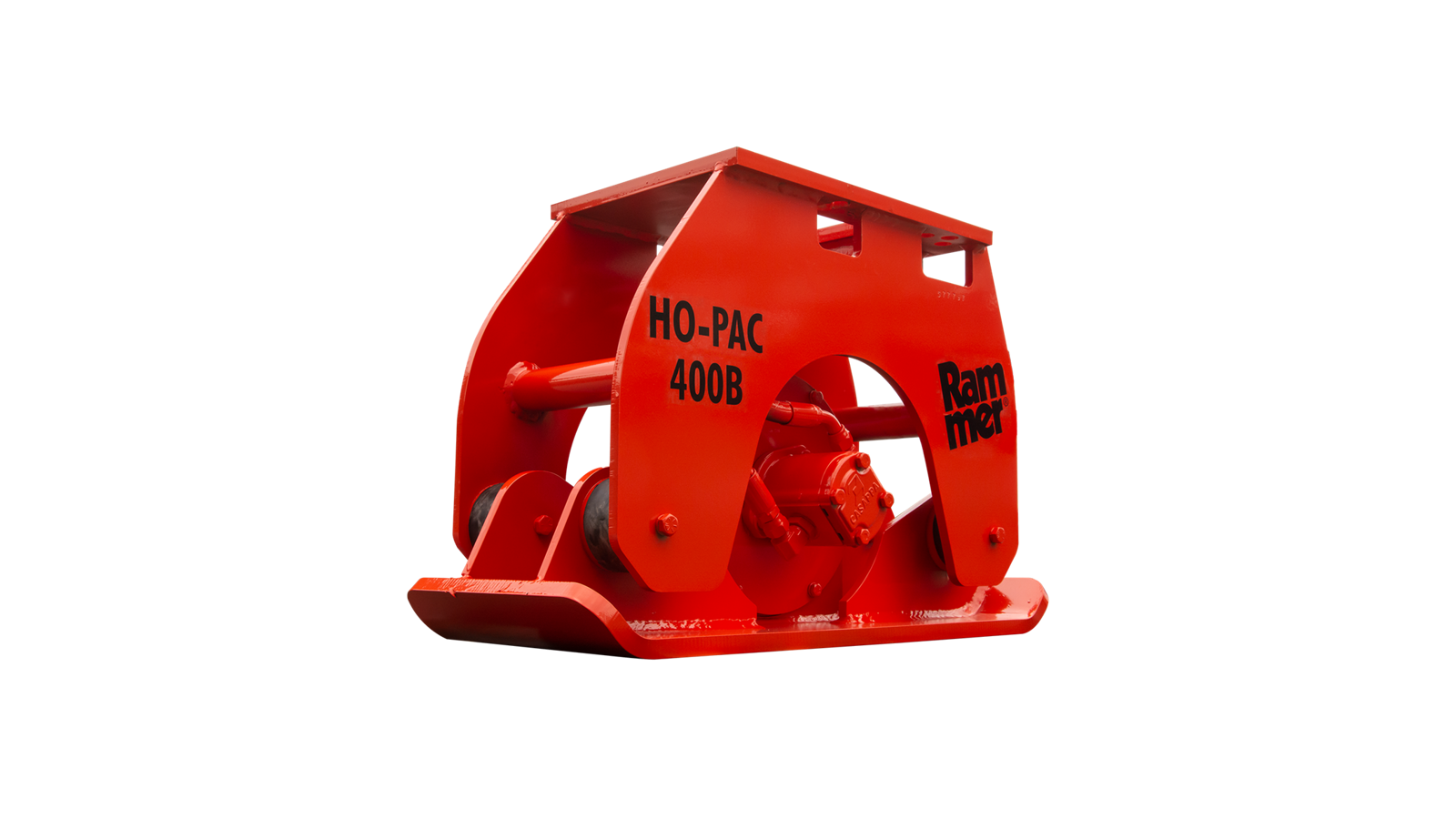

Ho-Pac 400B

Mounting bracket type

IN1/IN2/XR

Min. working weight, flange mounted  *1

500 kg

Carrier weight, range  *2

2 - 5 t (3,000 - 12,000 lb)

Hydraulic flow options

6/9/14/18 gal/min

Compaction plate dimensions

13 x 31 in

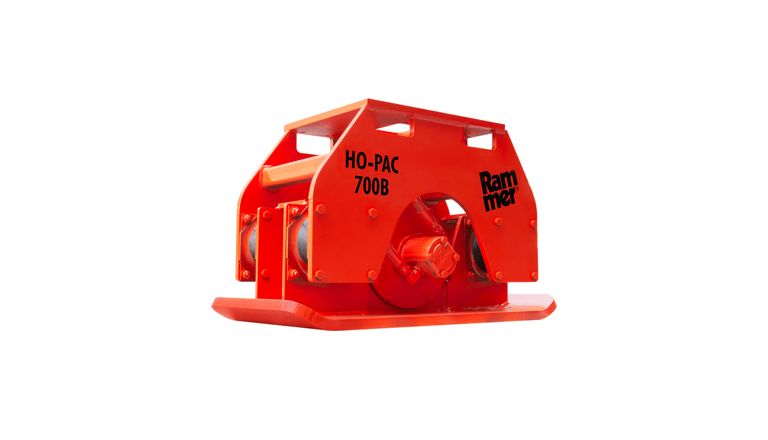

Ho-Pac 700B

Mounting bracket type

XR/BR

Min. working weight, flange mounted  *1

750 kg

Carrier weight, range  *2

4 - 9 t (8,000 - 20,000 lb)

Hydraulic flow options

6/9/14/18 gal/min

Compaction plate dimensions

18 x 35 in

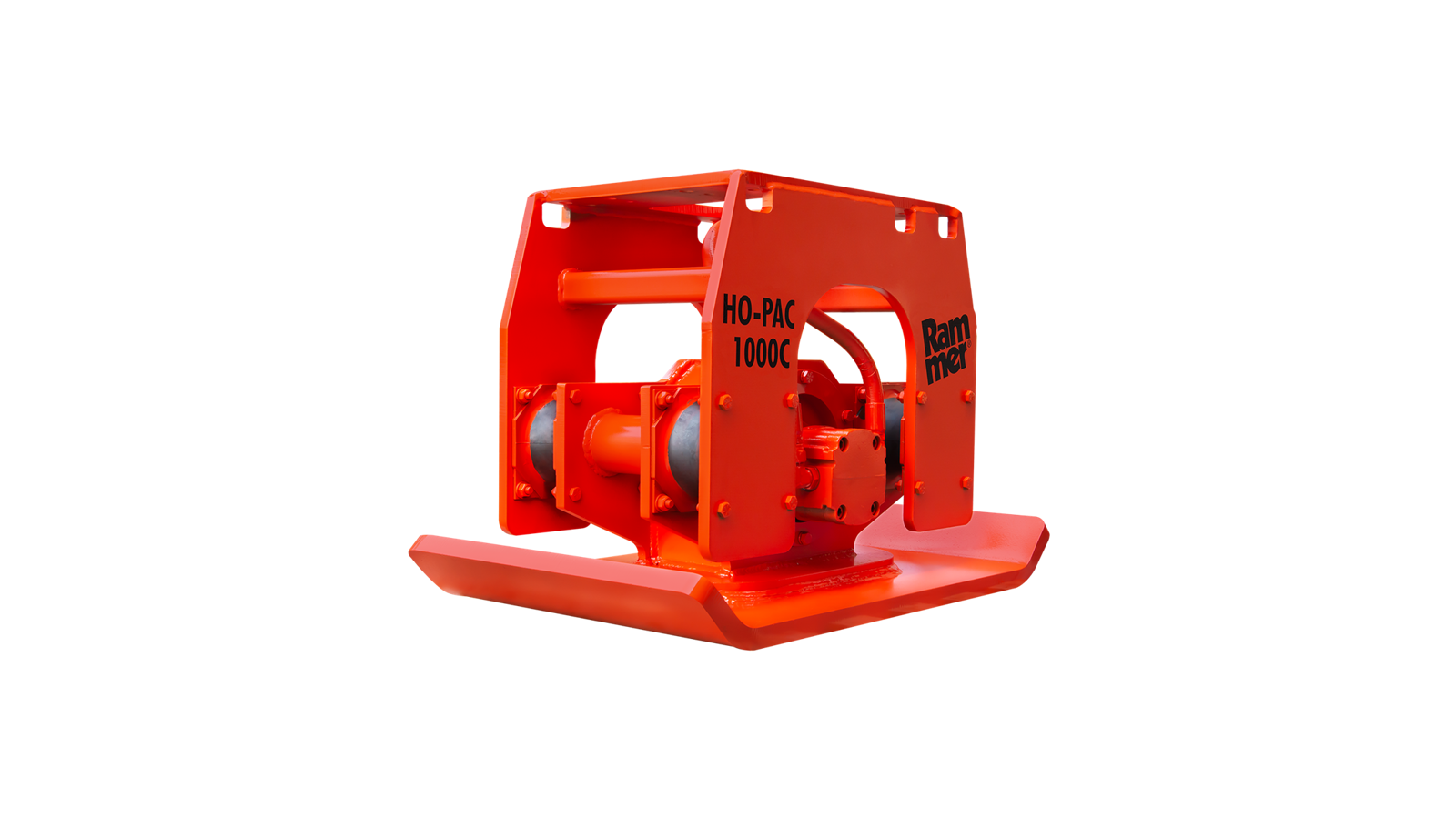

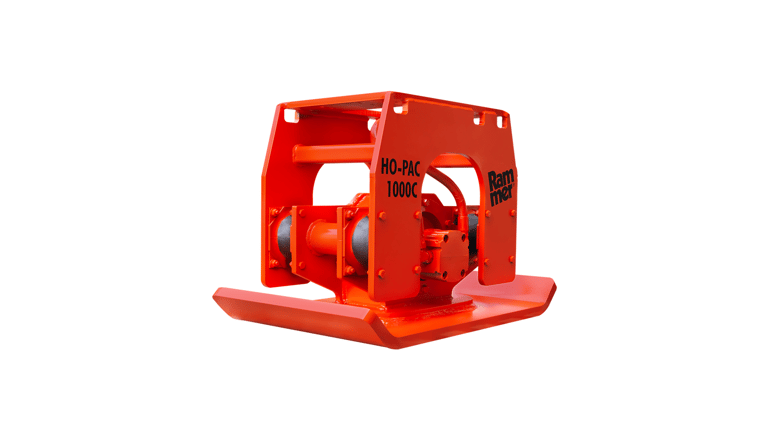

Ho-Pac 1000C

Mounting bracket type

BR/SR

Min. working weight, flange mounted  *1

1,120 kg

Carrier weight, range  *2

6 - 14 t (14,000 - 30,000 lb)

Hydraulic flow options

12/18/21 gal/min

Compaction plate dimensions

24 x 37 in

Miniexcavator, tractor backhoe weight, Range  *2

4 - 11 t (9,000 - 30,000 lb)

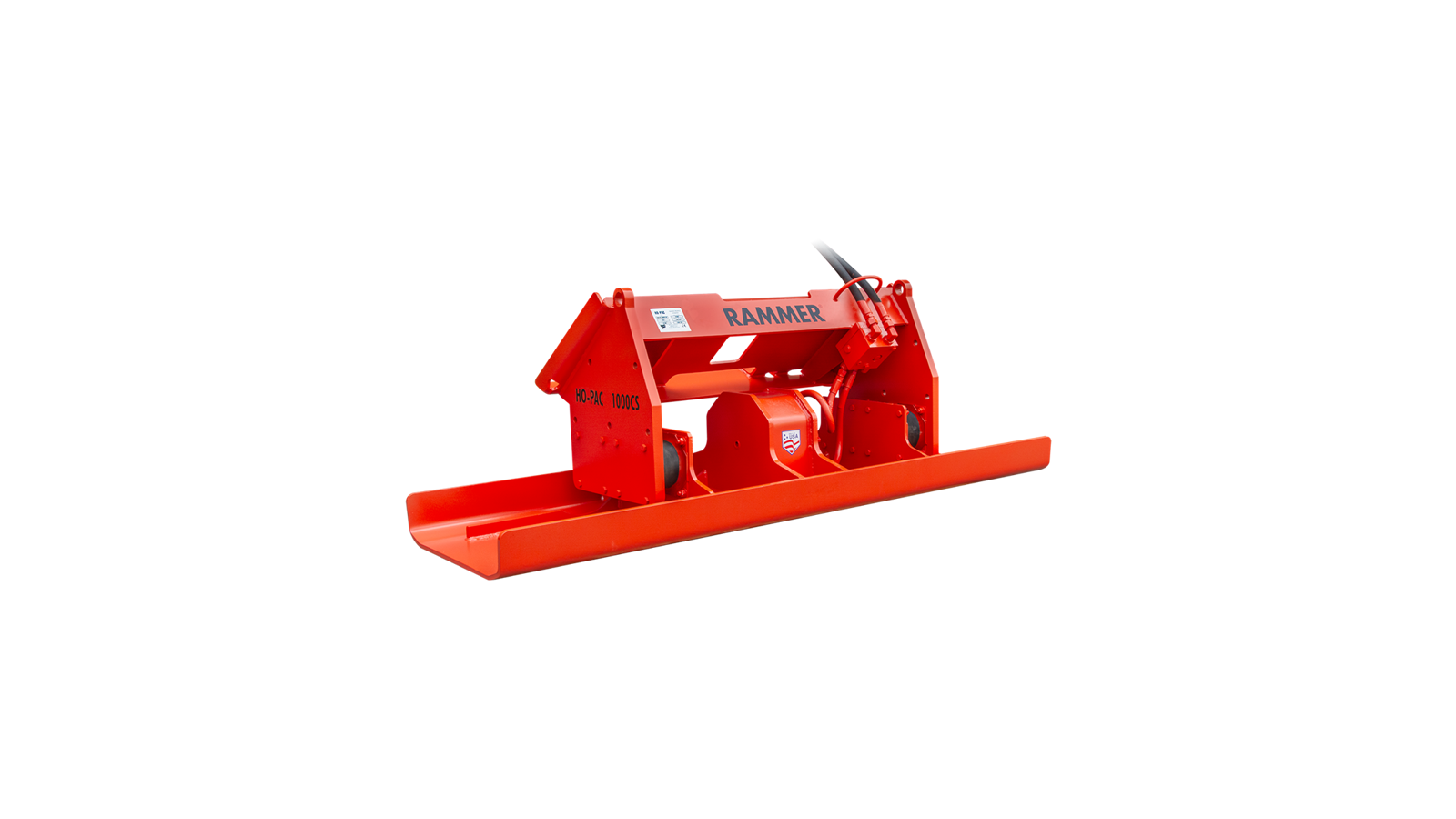

Ho-Pac 1000CS

Mounting bracket type

SSU

Min. working weight, flange mounted  *1

499 kg (1,110 lb)

Hydraulic flow options

18 gal/min

Compaction plate dimensions

18 x 84 in

Skid steer, robot weight, range  *2

2 - 6 t (4,000 - 12,000 lb)

Hydraulic flow options

18 gal/min

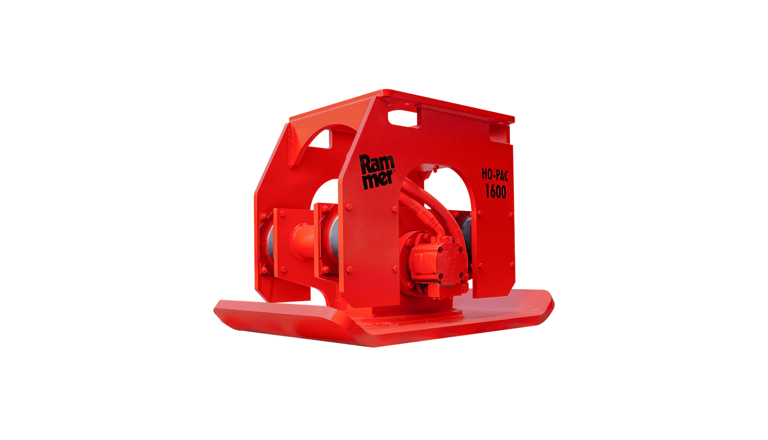

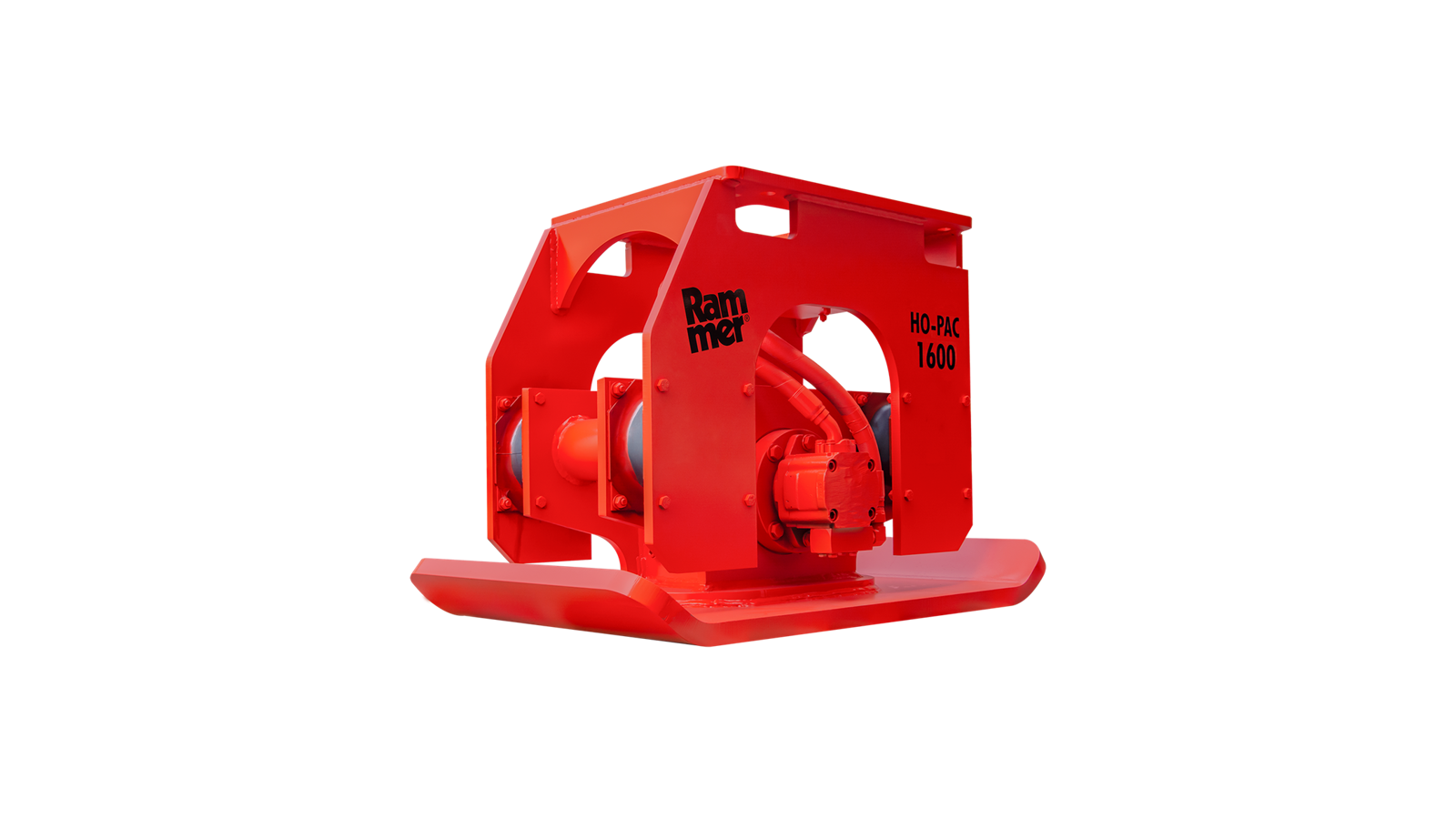

Ho-Pac 1600

Mounting bracket type

SR/MR

Min. working weight, flange mounted  *1

862 kg (1,900 lb)

Carrier weight, range  *2

9 - 21 t (2,000 - 45,000 lb)

Hydraulic flow options

25/30/43 gal/min

Compaction plate dimensions

29 x 44 in

Miniexcavator, tractor backhoe weight, Range  *2

9 - 11 t (19,000 - 25,000 lb)

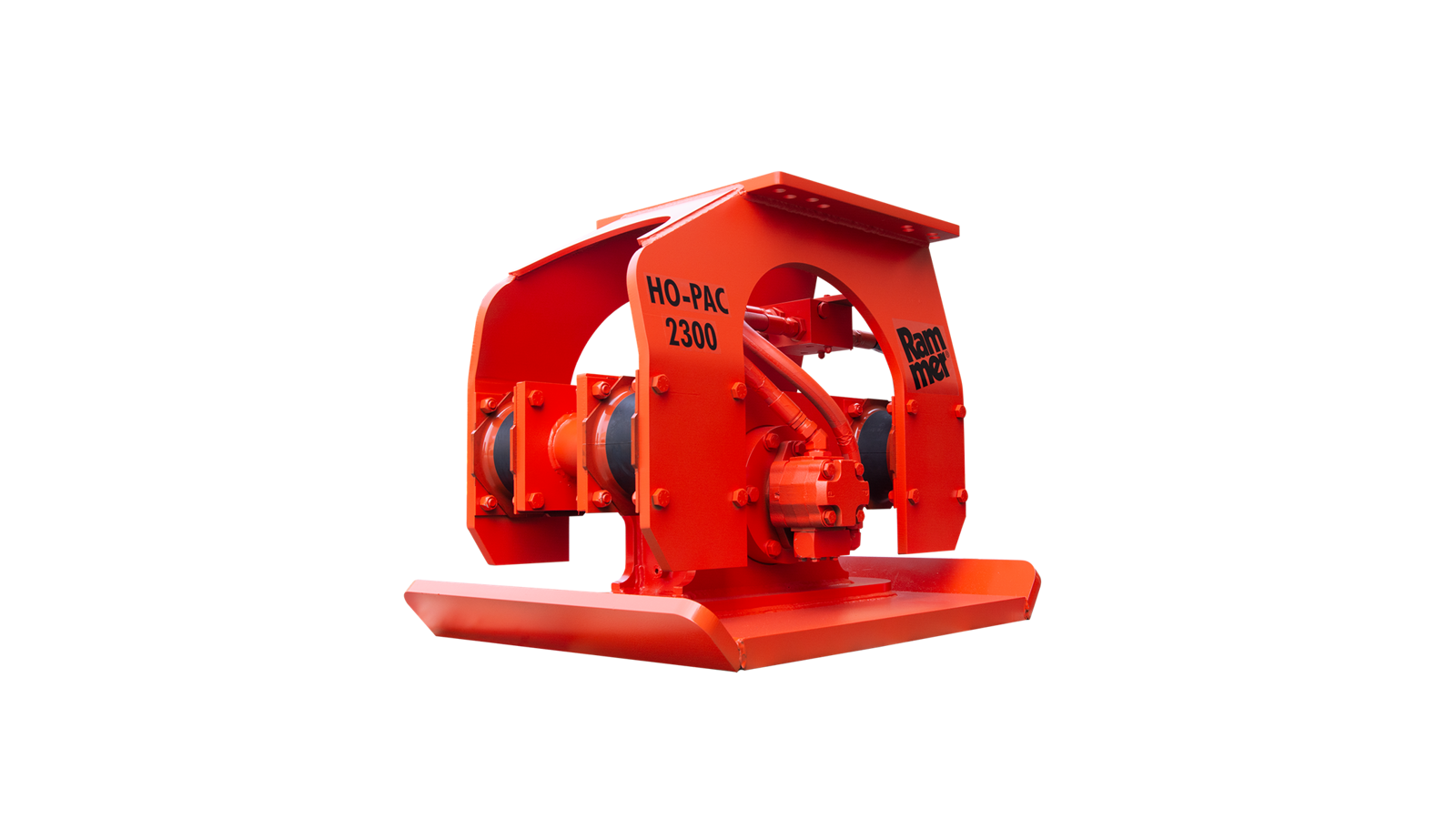

Ho-Pac 2300

Mounting bracket type

MR/LR8

Min. working weight, flange mounted  *1

1,315 kg (2,900 lb)

Carrier weight, range  *2

16 - 54 t (35,000 - 120,000 lb)

Hydraulic flow options

47 gal/min

Compaction plate dimensions

34 x 44 in

Hydraulic flow options

47 gal/min

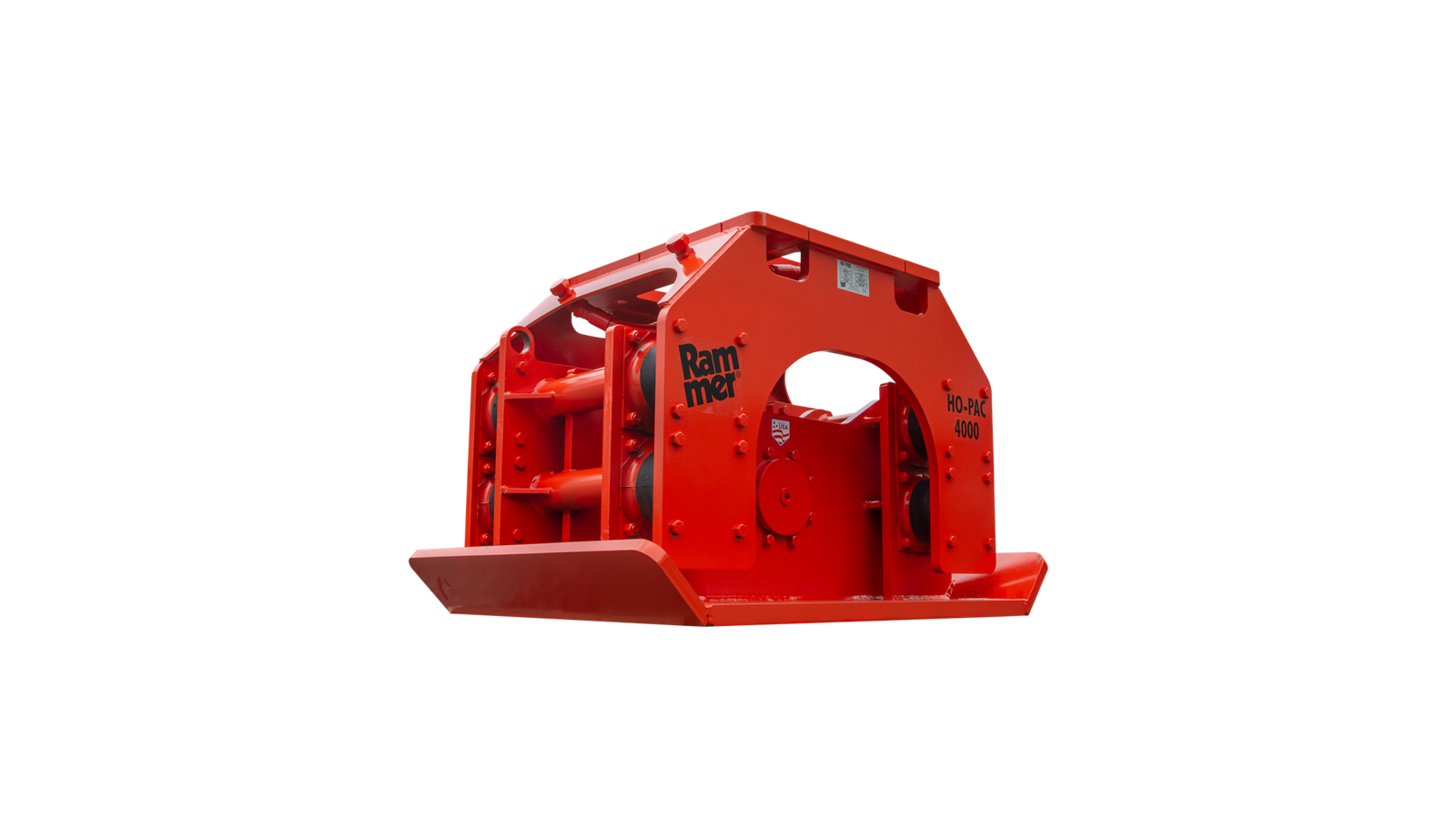

Ho-Pac 4000

Mounting bracket type

LR9

Min. working weight, flange mounted  *1

2,222 kg (4,899 lb)

Carrier weight, range  *2

35 - 70 t (77,000 - 150,000 lb)

Hydraulic flow options

62/86 gal/min

Compaction plate dimensions

42 x 60 in
