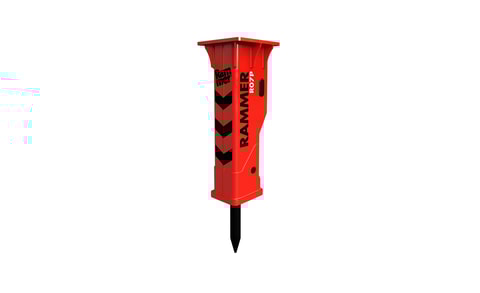

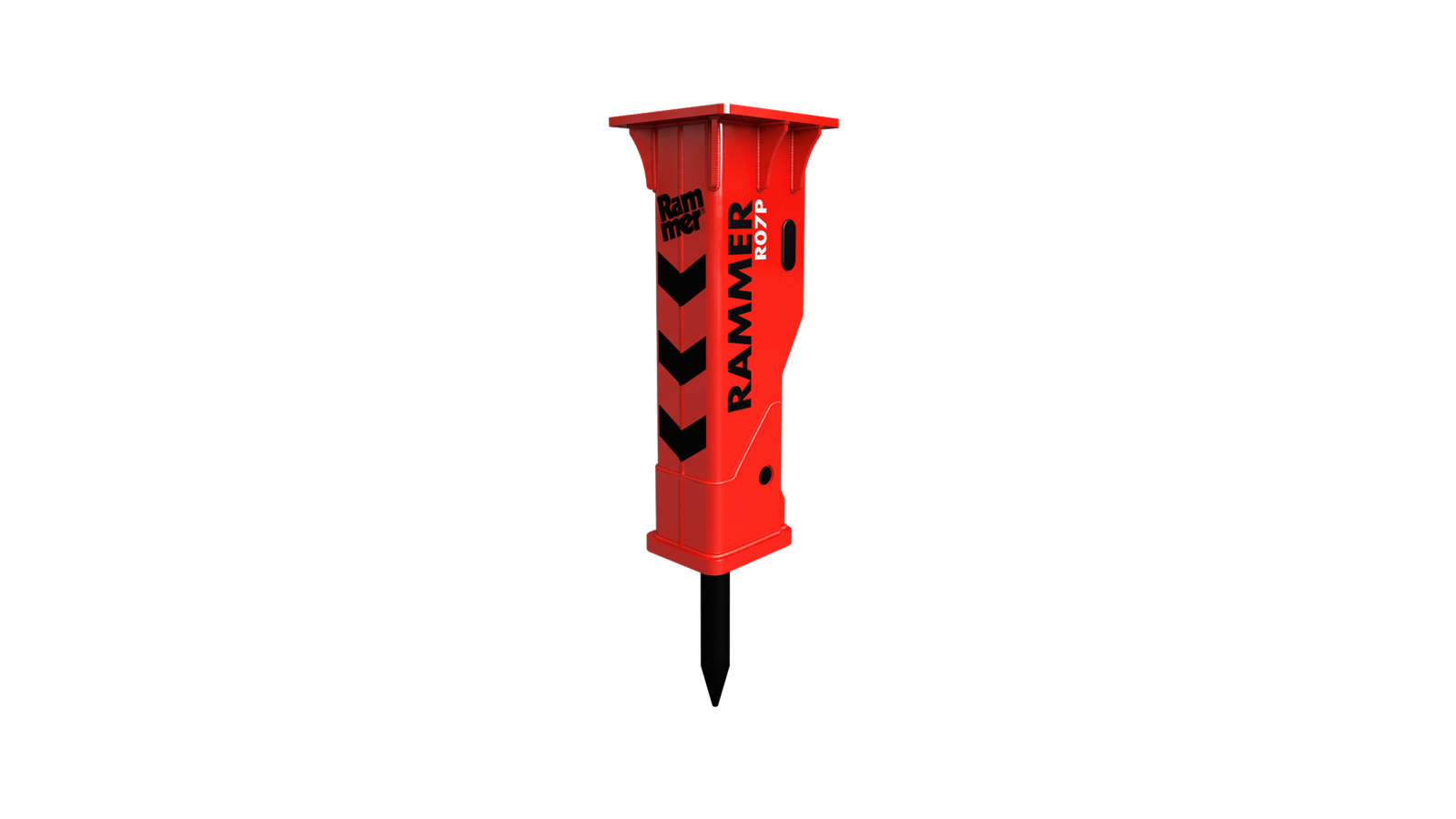

Specification

Minimum working weight, flange mounted  *1400 kg880 lb
Weight329 kg730 lb
Impact rate (frequency)450 - 950 bpm
Operating pressure80 - 140 bar1160 - 2030 psi
Pressure relief setting  *2200 bar2900 psi
Pressure relief max220 bar3190 psi
Oil flow range45 - 90 l/min11.9 - 23.8 gal/min
Back pressure max15 bar220 psi
Input power21 kW28 hp
Tool diameter75 mm2.95 in
Pressure line connection (IN)BSPP internal 3/4"
Return line connection (OUT)BSPP internal 3/4"
Pressure line size, min. inner diameter15 mm0.59 in
Return line size, min. inner diameter15 mm0.59 in
Optimum oil temperature40 - 60 °C104 - 140 °F
Allowed oil temperature range-20 - 80 °C-4 - 176 °F
Optimum oil viscosity at operating temperature30 - 60 cSt
Allowed viscosity range20 - 1000 cSt
Skid steer, robot weight, range  *33.5 - 6.0 t7716 - 13228 lb
Carrier weight, range  *35.0 - 9.0 t11000 - 19842 lb
Noise level, measured (2000/14/EC)117 dB(A)
Noise level, guaranteed (2000/14/EC)121 dB(A)
*1   Includes average mounting bracket and standard tool
*2   Minimum setting = actually measured operating pressure + 50 bar or 725 psi
*3   Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

Specifications are subject to change without notice (Wednesday, April 1, 2020)

Tools

The Standard Chisel Tool is used for rock and reinforced concrete.
Moil Point tools allow for optimum positioning in material which is loose or can be easily separated, e.g. brick walls or loose rock in tunn...

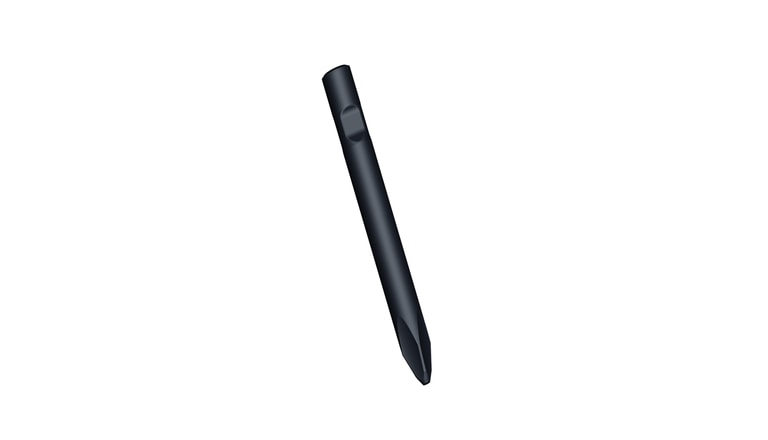

The pyramid chisel is a further development of the moil point tool and is intended for penetrative work. Its pyramide shape allows optimal p...

Parts

RD3 is the latest in monitoring technology for hydraulic hammers. The monitoring data is available for all stakeholders through the MyFleet ...
Tool grease is essential when using hydraulic hammers. It needs to withstand high temperatures and pressure. Our special tool grease has bee...
