Small Range Performance
R10P
- Applications
-
- Trenching
- Secondary demolition
- Landscaping
- Rental
- Primary demolition
- Min. working weight, flange mounted *1
- 530 kg (1,170 lb)
- Tool diameter
- 85 mm (3 in)

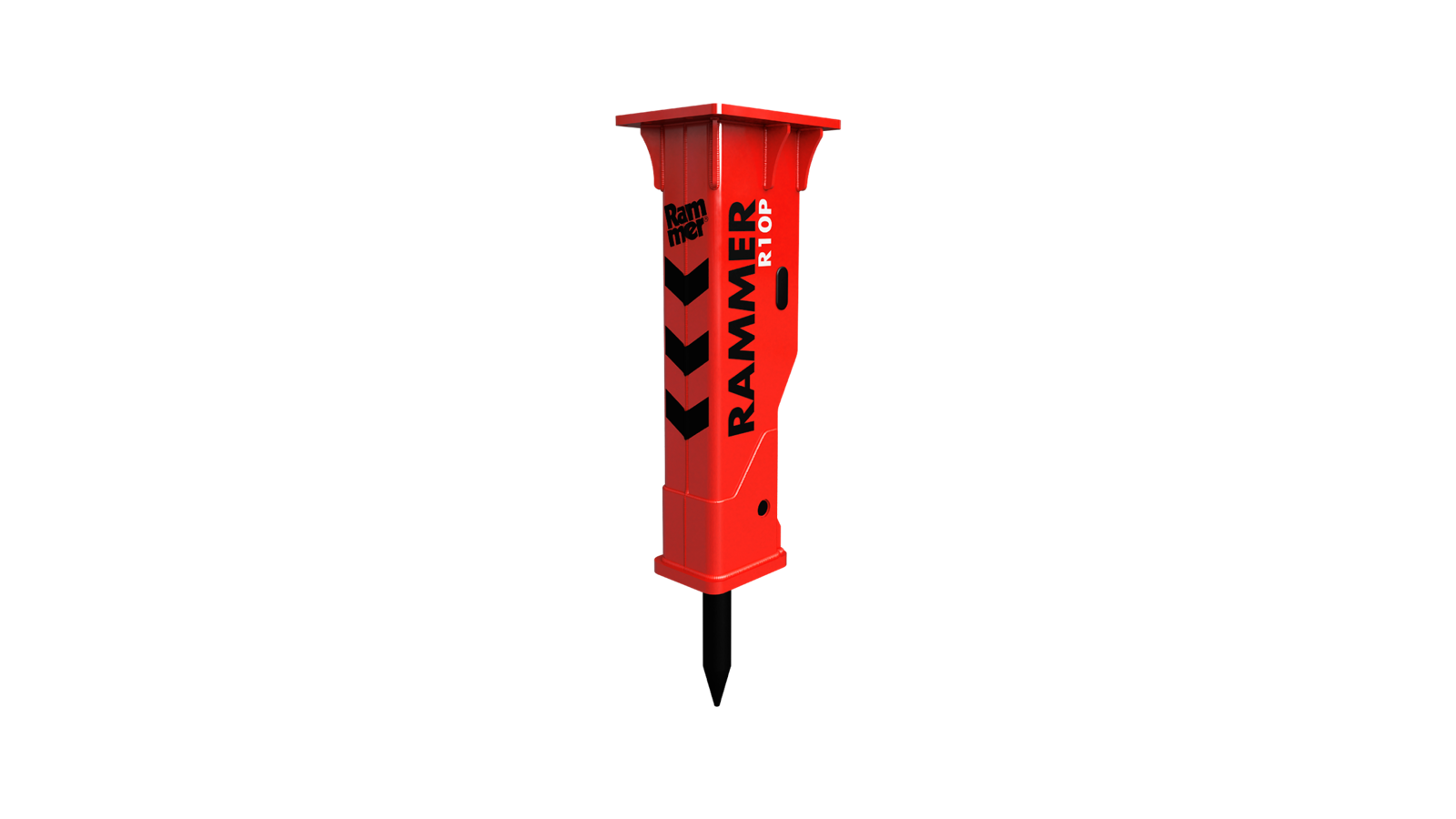

The Rammer R10P is your solid and profitable solution for carriers between 4-12 tons.
The 530 kg hammer features a robust, silenced and vibration suppressed housing, which increases both application versatility and housing lifetime.The R10P's simple impact unit design with piston accumulator operating principle and excellent power-to-weight ratio guarantees low owning and operating costs.
Product Specifications
Downloads
- Min. working weight, flange mounted *1
- 530 kg (1,170 lb) 1)
- Weight
- 440 kg (970 lb)
- Impact rate (frequency)
- 450 - 900 bpm
- Operating pressure
- 110 - 160 bar (1,595 - 2,320 psi)
- Oil flow range
- 50 - 95 l/min (13 - 25 gal/min)
- Min. working weight, flange mounted *1
- 530 kg (1,170 lb) 1)
- Weight
- 440 kg (970 lb)
- Impact rate (frequency)
- 450 - 900 bpm
- Operating pressure
- 110 - 160 bar (1,595 - 2,320 psi)
- Oil flow range
- 50 - 95 l/min (13 - 25 gal/min)
- Pressure relief setting *2
- 200 bar (2,900 psi) 2)
- Pressure relief max
- 220 bar (3,190 psi)
- Back pressure max
- 15 bar (220 psi)
- Input power
- 25 kW (34 hp)
- Tool diameter
- 85 mm (3 in)
- Pressure line connection (IN)
- BSPP internal 1"
- Return line connection (OUT)
- BSPP internal 1"
- Pressure line size, min. inner diameter
- 25 mm (1 in)
- Return line size, min. inner diameter
- 25 mm (1 in)
- Optimum oil temperature
- 40 - 60 °C (104 - 140 °F)
- Allowed oil temperature range
- -20 - 80 °C (-4 - 176 °F)
- Optimum oil viscosity at operating temperature
- 30 - 60
- Allowed viscosity range
- 20 - 1,000
- Skid steer, robot weight, range *3
- 4 - 8 t (8,818 - 16,535 lb)
- Carrier weight, range *3
- 6 - 12 t (13,200 - 26,455 lb) 3)
- Noise level, measured (2000/14/EC)
- 119
- Noise level, guaranteed (2000/14/EC)
- 123
-
1) Includes average mounting bracket and standard wear parts
-
2) Minimum setting = actually measured operating pressure + 50 bar or 725 psi
-
3) Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.
Features & Applications
-
Features
- Twin handed
The twin handed design allows optimal mounting on both left and right handed carriers, prolonging the service life of the hose connections. Easy installation for hydraulic quick hitch mounting brackets. - Vibration and sound suppressed
Less vibrations and at the same time significantly lower noise levels are achieved with this ultra-modern, low-wear design. This protects the operator, the carrier and relieves the environment. This extends your range of applications on narrow job sites and wherever noise protection is required. - Flange mounting
The Flange mounting design allows for the use of existing mounting plates, as well as carrier and application specific customization. - Fast-change tool system
Quick and safe tool change system transverse to the hammer. No need to reach under the hammer during tool change. - RD3 incl. SAM (retrofit)
RD3 device for SAM service available for retrofit installation. Please consult your distributor for proper version. Online hour meter and location tracking in Google MapsTM - Original RAMMER tools
All our experience reflects the unique quality and reliability of RAMMER original tools. You are advised to choose the right RAMMER tool for every application. This will increase your production and reduce your costs. - Piston type accumulator
The nitrogen piston accumulator is a safe and durable design, thanks to the use of the latest sealing technologies, . Fail-safe operation, high impact energy and simple and fast service help to improve your operating results. - Excellent power-to-weight ratio
RAMMER sets the standard in the industry with these outstanding values in the power-to-weight ratio. The impact force has been increased and at the same time the operating weight has been optimized.
- Twin handed
-
Applications
- Primary demolition
Demolition of standing buildings and structures. - Trenching
Trenching is a form of primary breaking in which a narrow trench is excavated especially for laying pipes, cables or for installing drainage - Secondary demolition
Demolition of larger pieces on the ground (size reduction, separation and preliminary sorting tasks) - Landscaping
Gardening, graveyard and landscaping applications, hard ground and removal of smaller boulders, concrete fundaments or similar. - Rental
Rental includes most applications
- Primary demolition

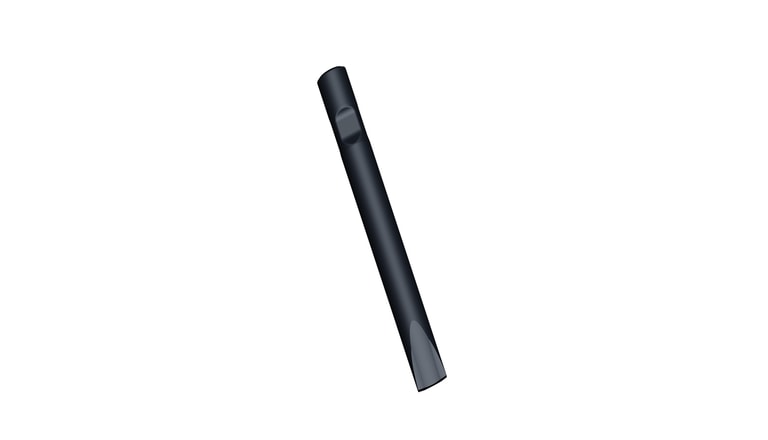

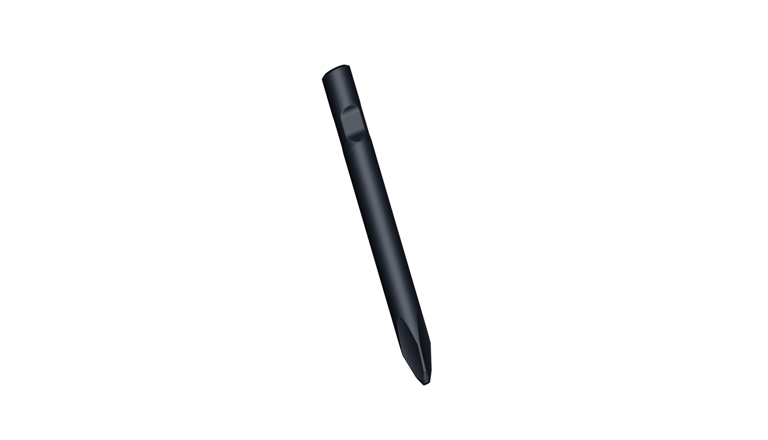

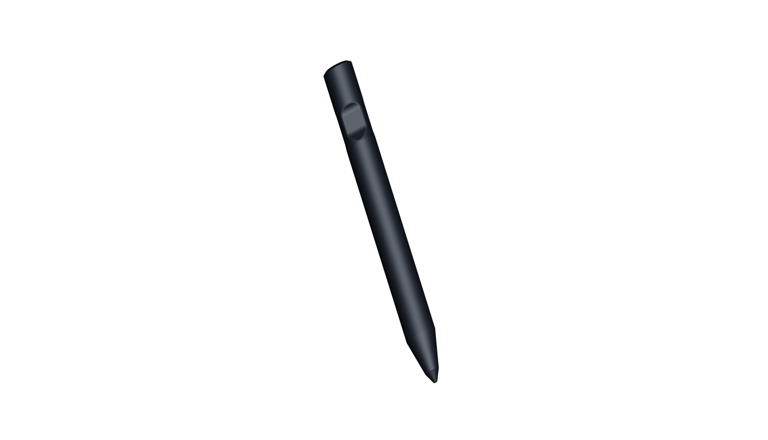

Tools
