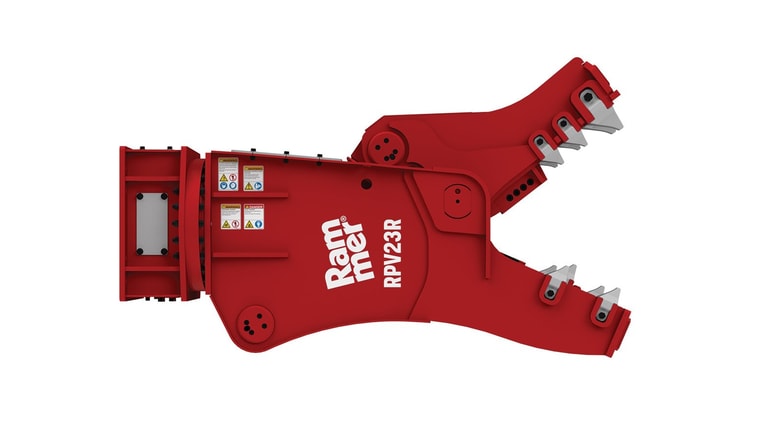

RPV23R

Min. working weight, flange mounted  *1

2,420 t (5,335 lb)

Max. jaw opening

840 mm (33 in)

Oil flow range

210 - 260 l/min (55 - 68 gal/min)

Carrier weight, range  *2

20 - 26 t (44,000 - 57,300 lb)

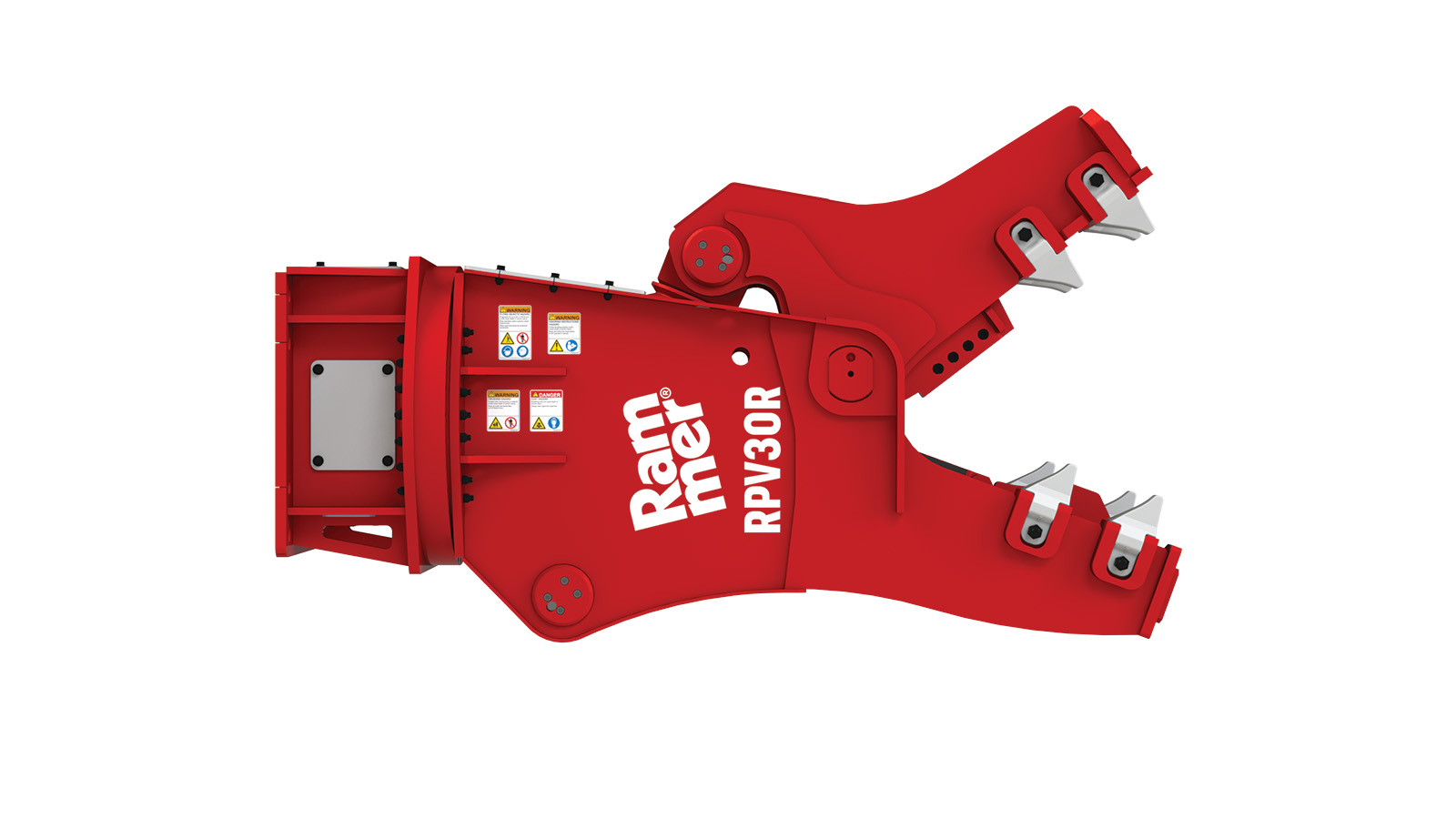

RPV30R

Min. working weight, flange mounted  *1

2,800 t (6,173 lb)

Max. jaw opening

880 mm (35 in)

Oil flow range

250 - 300 l/min (66 - 79 gal/min)

Carrier weight, range  *2

25 - 32 t (55,000 - 70,500 lb)

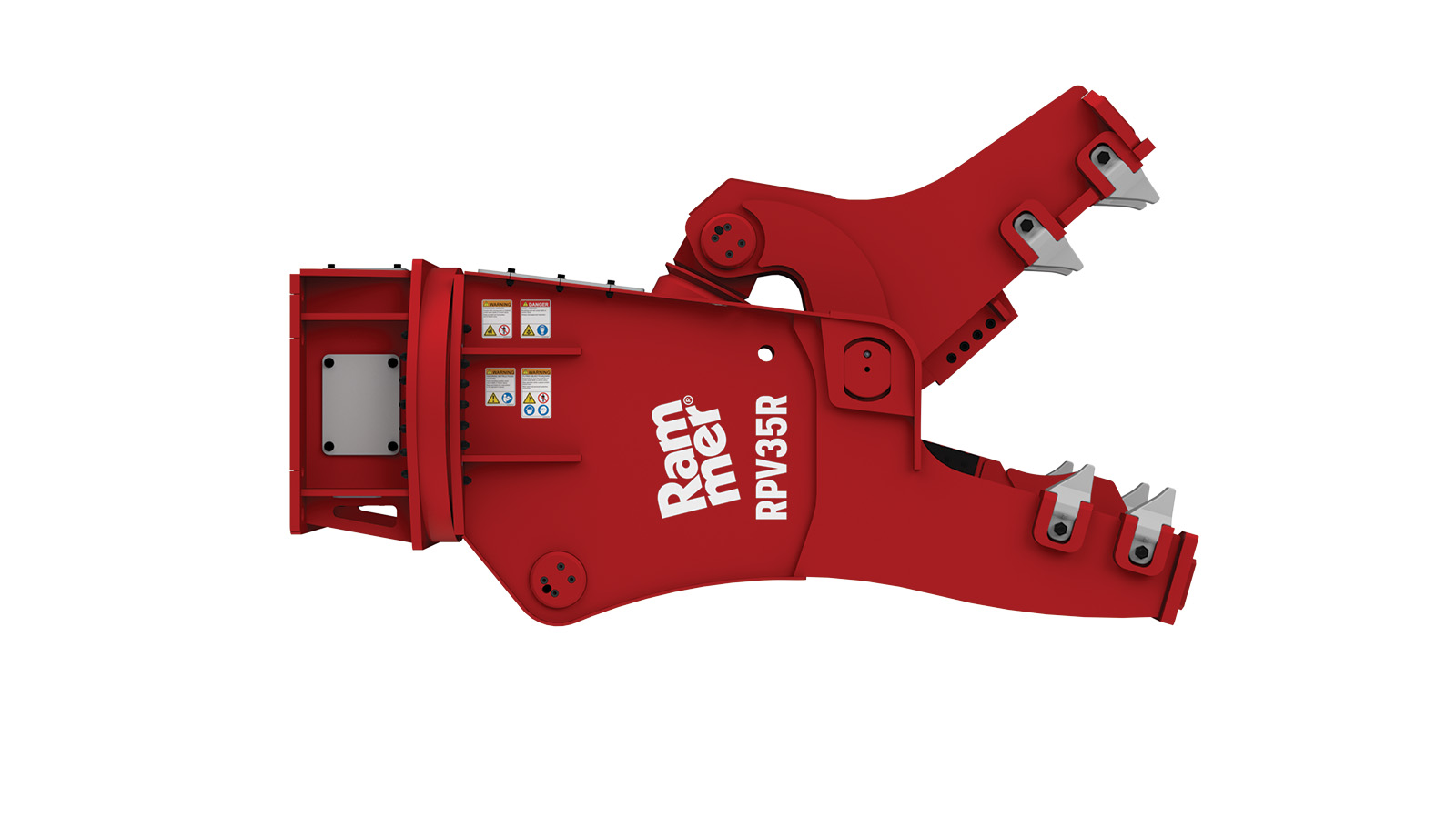

RPV35R

Min. working weight, flange mounted  *1

3,100 t (6,834 lb)

Max. jaw opening

1,010 mm (40 in)

Oil flow range

280 - 320 l/min (74 - 84 gal/min)

Carrier weight, range  *2

30 - 40 t (66,000 - 88,000 lb)

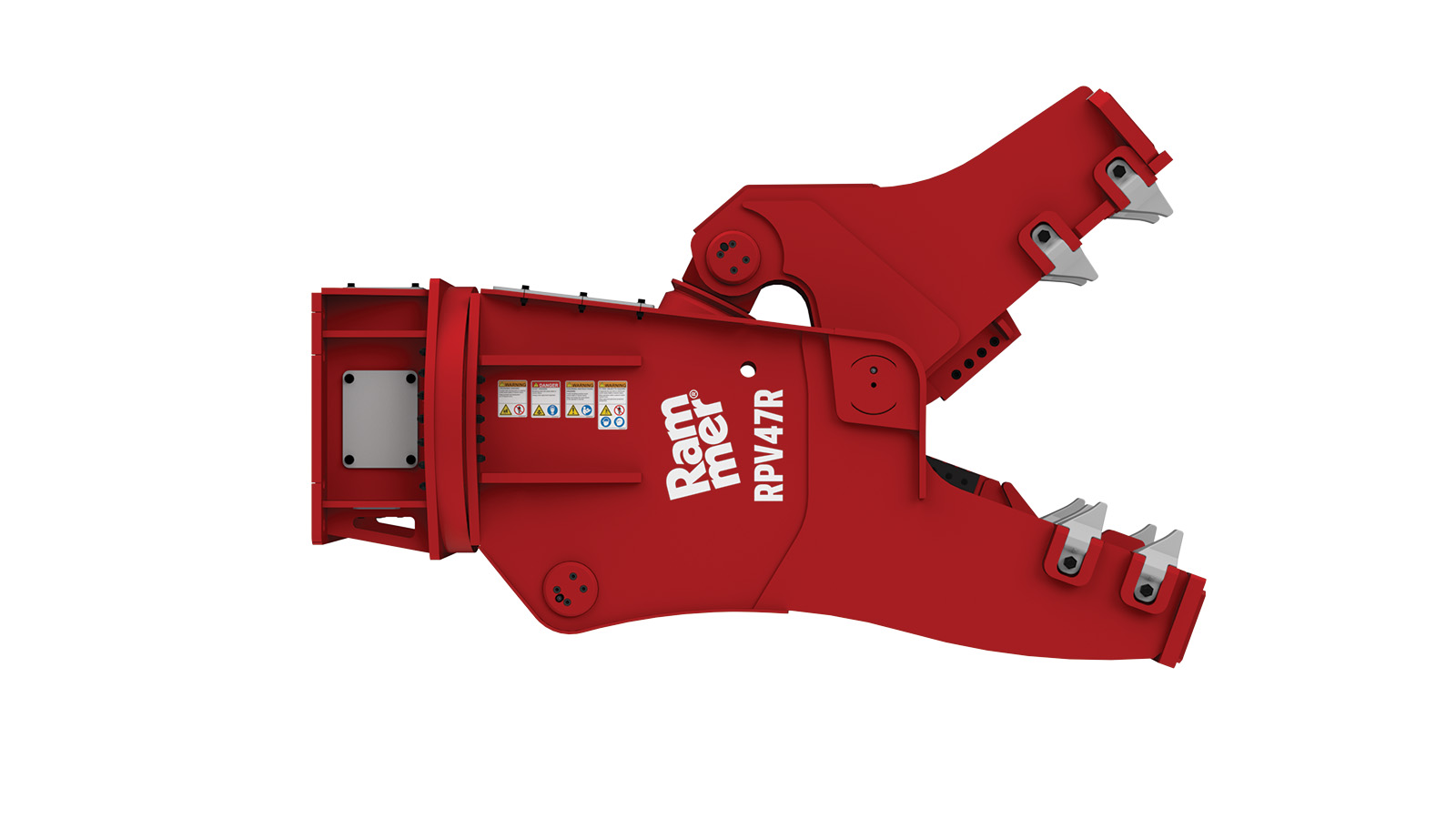

RPV47R

Min. working weight, flange mounted  *1

4,300 kg (9,480 lb)

Max. jaw opening

1,130 mm (45 in)

Oil flow range

300 - 350 l/min (79 - 92 gal/min)

Carrier weight, range  *2

40 - 60 t (88,000 - 121,300 lb)
