E04

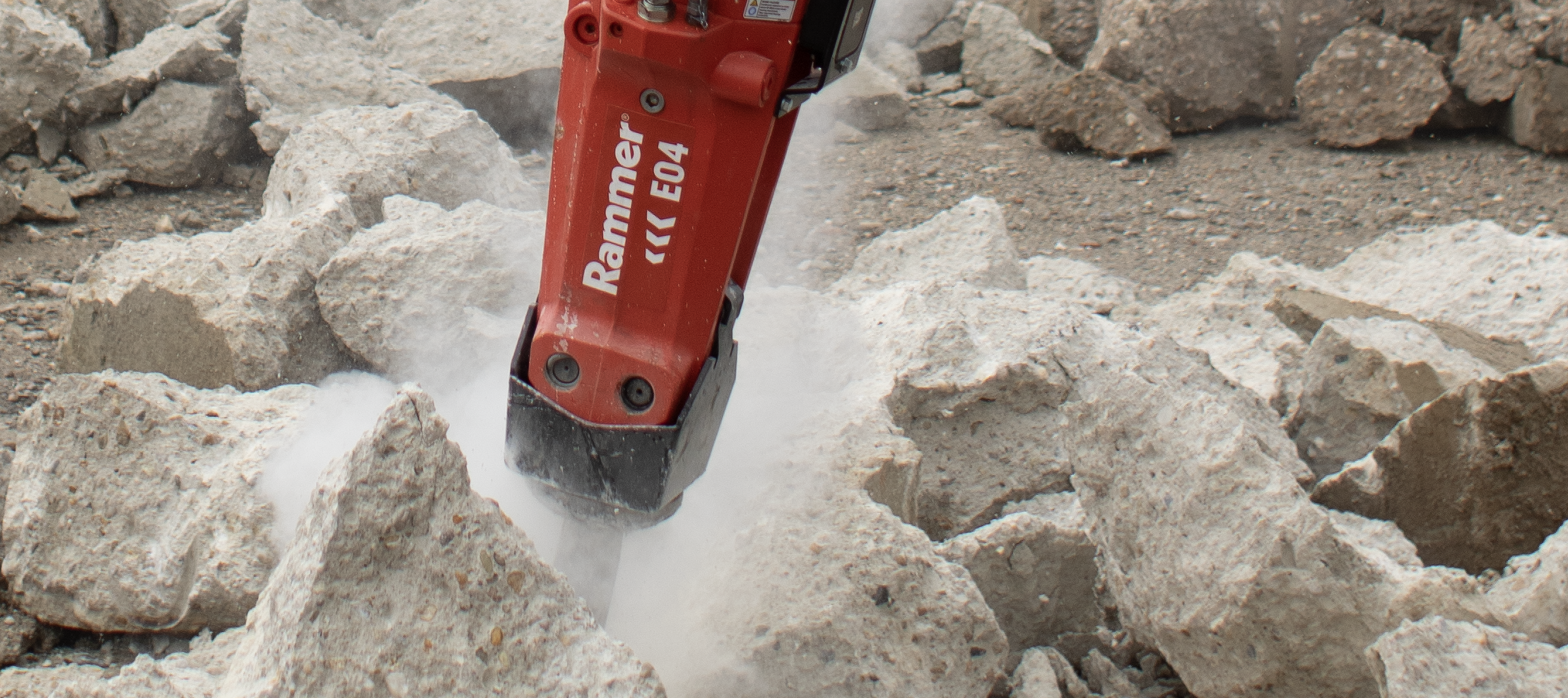

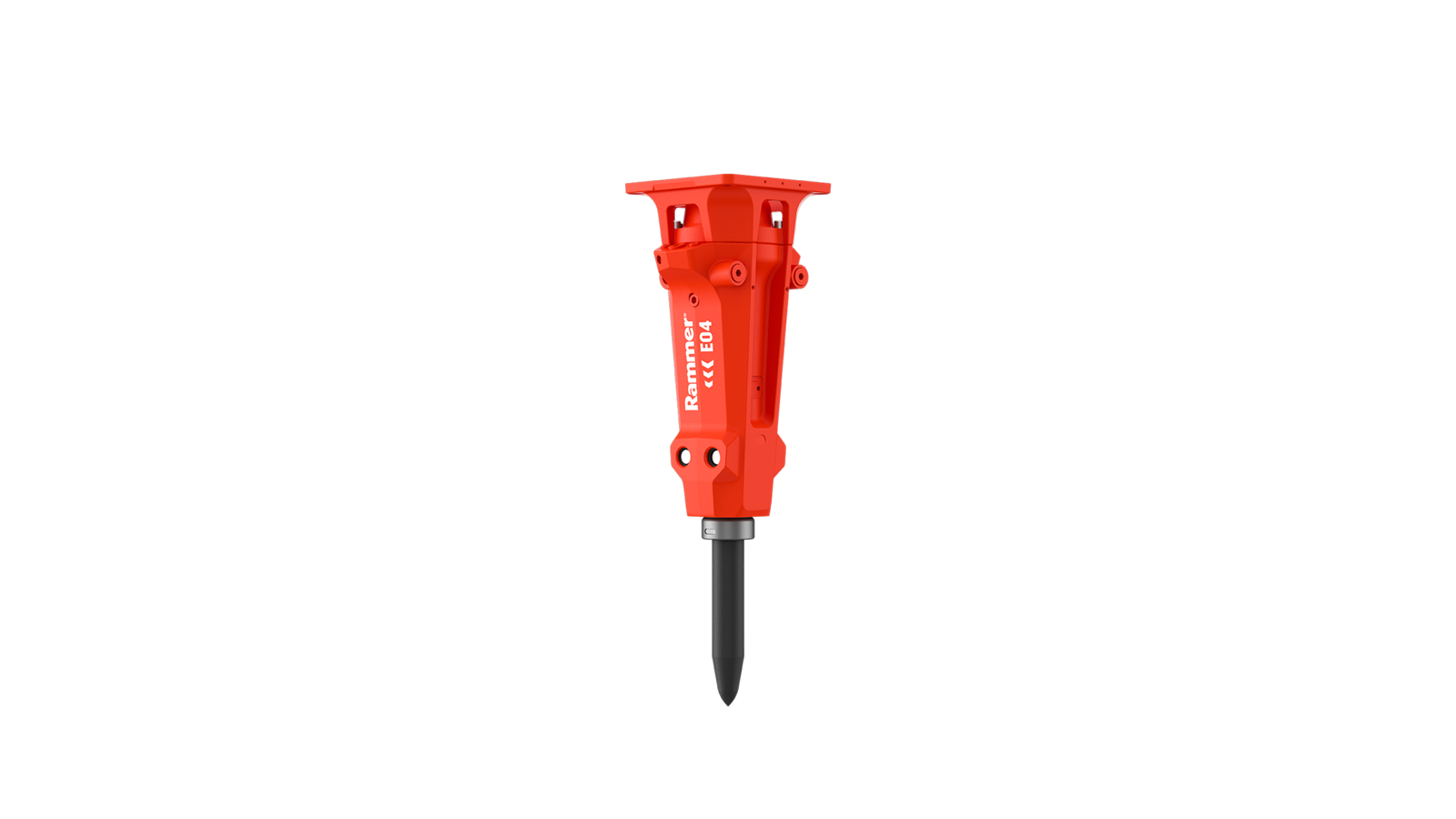

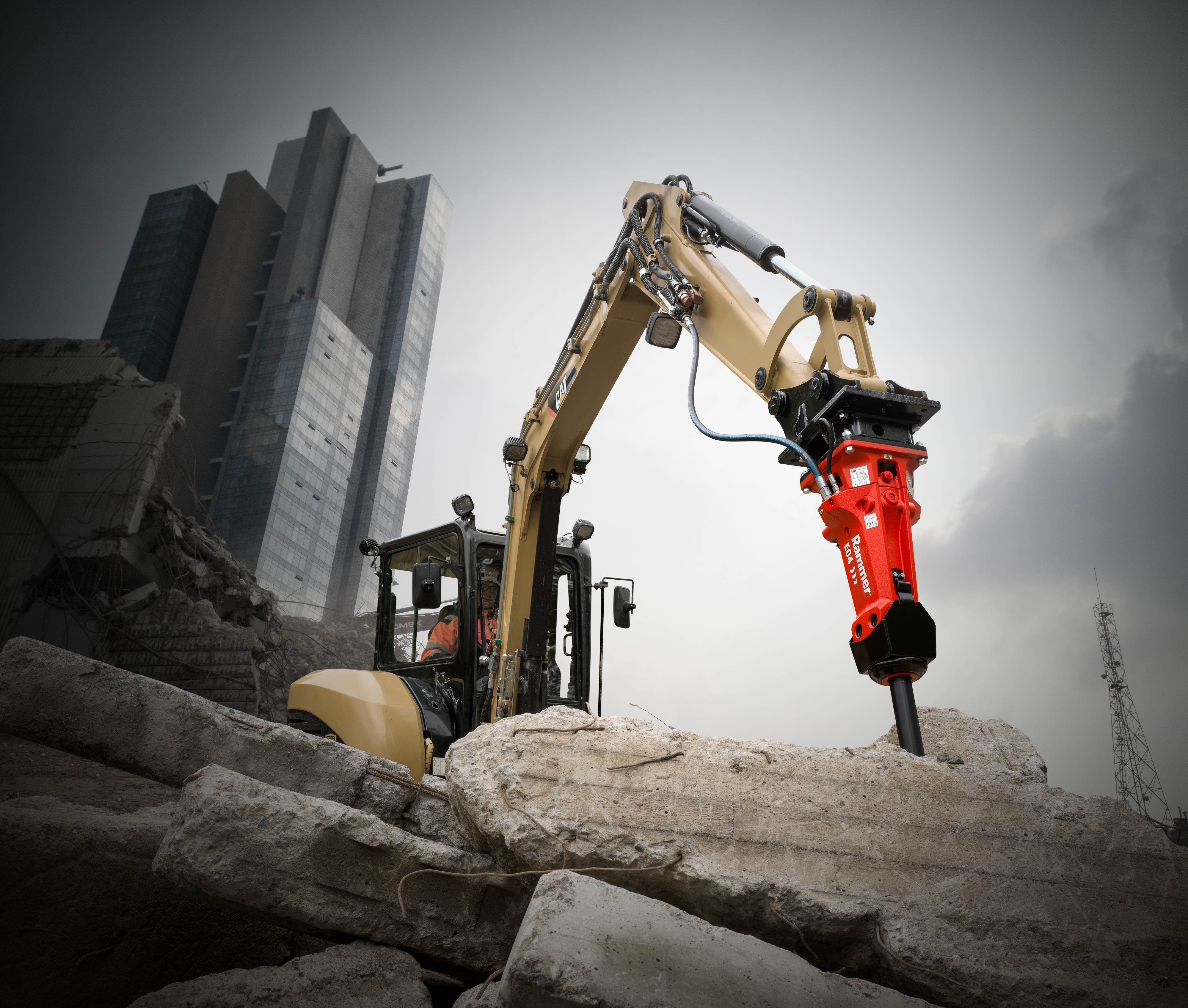

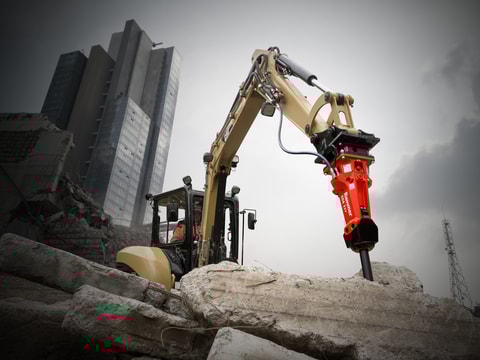

Rammer E04 compact range hydraulic hammer is suited for carriers in the 1.2 to 6.0 tonne range. Despite the small size, E04 packs the power of Rammer so you can enjoy piece of mind and smooth flow of operations in various applications.

Featuring CBE operating principle and membrane accumulator, E04 is easy to maintain and install to different carriers. Compact, right size for the job ensures higher productivity and optimized fuel consumption.

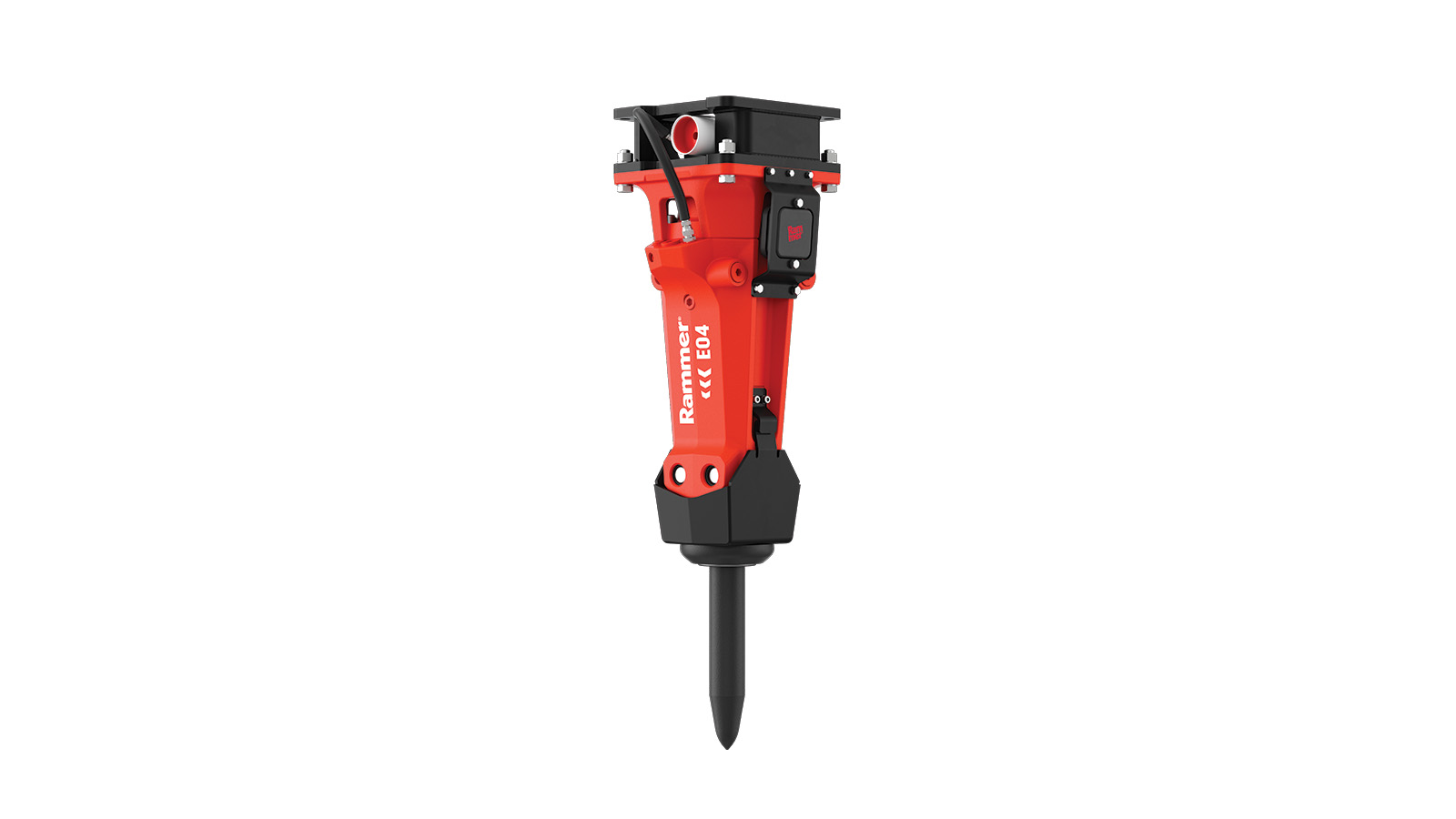

Modular body design structure enables versatile use through the whole lifecycle, and optional features including wear plates for cast body protection, RD3 and automatic greasing device further enhance durability.

Features

Low pressure accumulator

This accumulator accelerates the piston at constant energy (CBE).
Flange mounting

The Flange mounting design allows for the use of existing mounting plates, as well as carrier and application specific customization.
CBE (Constant Blow Energy)

Optimum impact energy for every stroke, ensuring 100% constant power and productivity
Light weight

The light weight design allows the use of smaller carriers without compromising the stability of the carrier.
Idle blow protector

The Idle Blow Protection (IBP) ensures the hammer cannot be operated until pressure is placed on tool. This eliminates tie rod stress, reduces oil overheating and protects against premature failures.
No tie rods

A smart design without tie rods allows for ideal guidance of the piston and optimal alignment of the tool.

Fast, safe and easy to maintain without the need for special tools.
Single part tool bushing retained with shared tool pin

The one-piece quick-change tool bushing inludes a thrust ring, the upper and the lower tool bushing into one component.

This quick-change tool bushing can easily be replaced on site, making maintenance easier, faster and safer.
Fast-change tool system

Quick and safe tool change system transverse to the hammer. No need to reach under the hammer during tool change.

Applications

Primary demolition

Demolition of standing buildings and structures.
Trenching

Trenching is a form of primary breaking in which a narrow trench is excavated especially for laying pipes, cables or for installing drainage

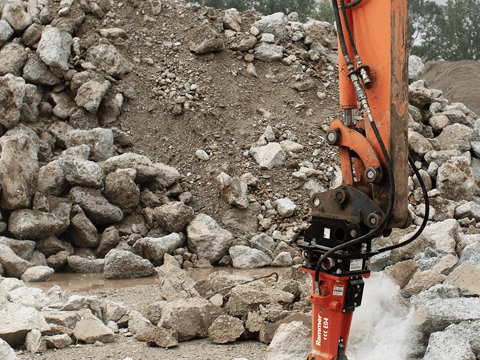

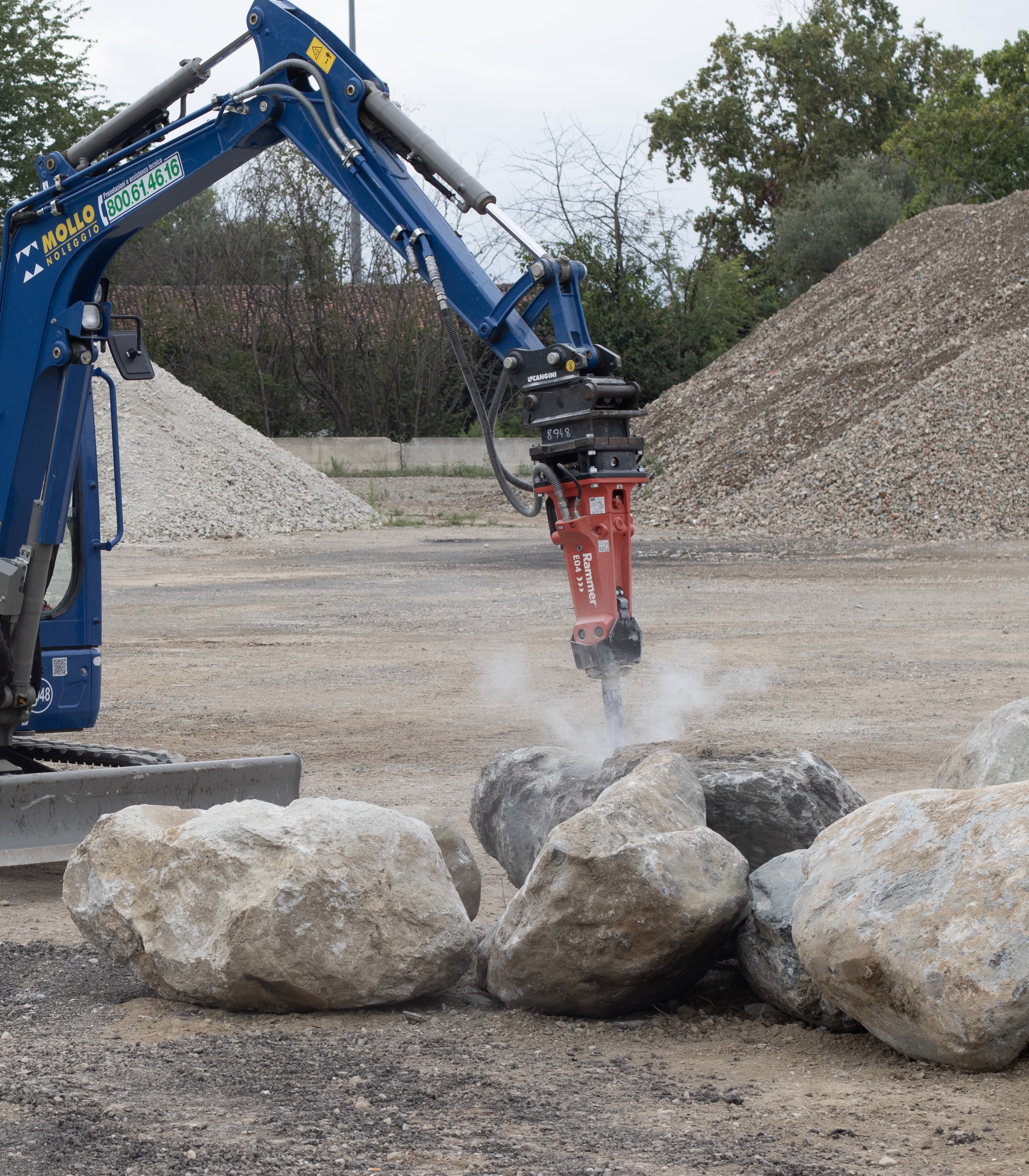

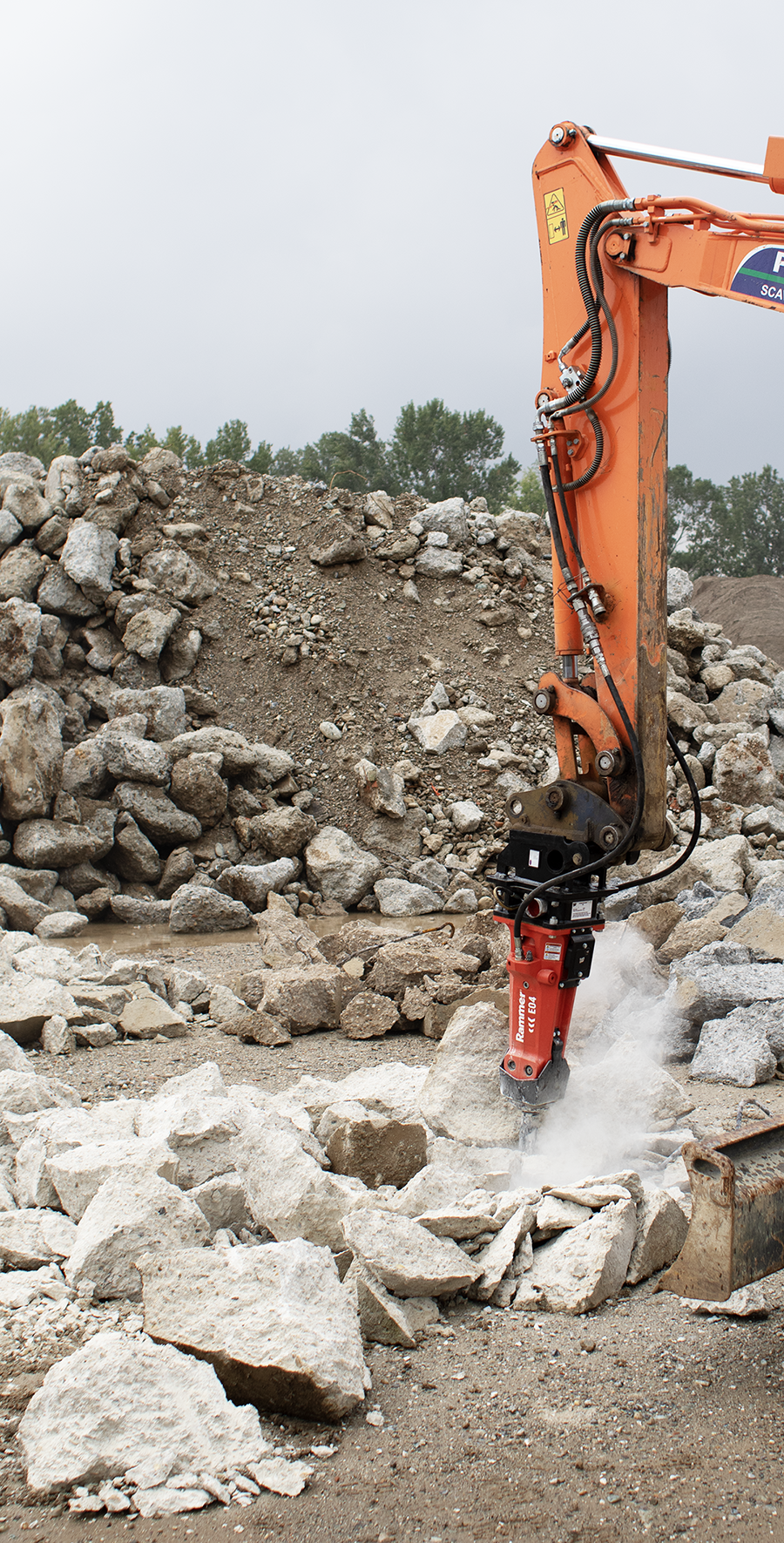

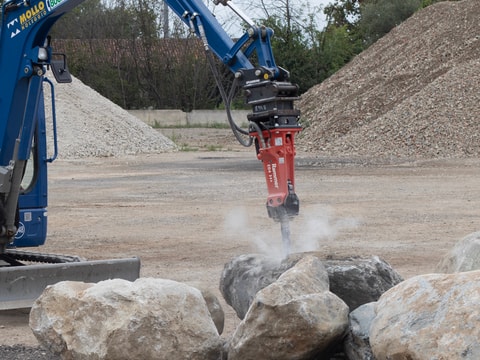

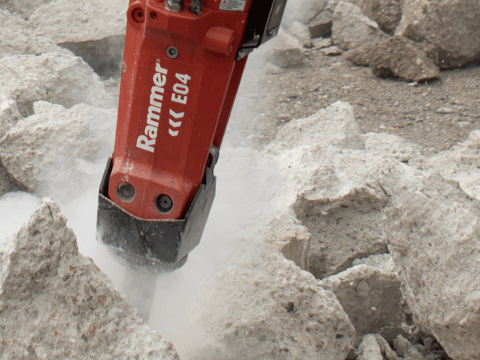

Secondary demolition

Demolition of larger pieces on the ground (size reduction, separation and preliminary sorting tasks)
Recycling

Re-using parts or material which has been extracted from existing buildings or structures.

Recyclng of products: Re-use of material or parts as such

Recycling of material: Re-use of material for other purposes

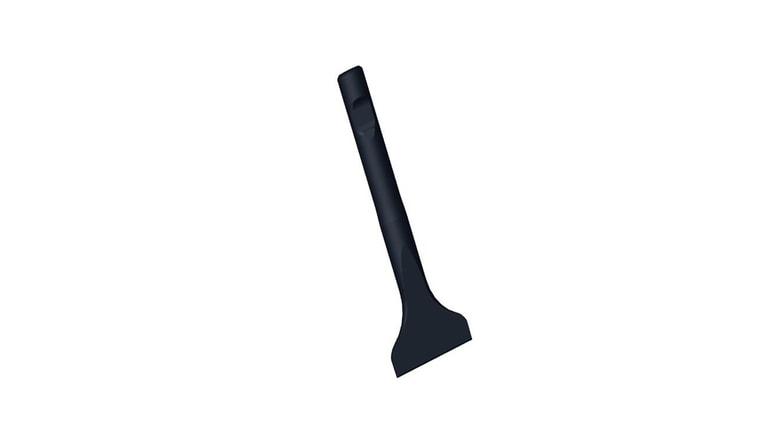

Cutting of asphalt or frozen ground

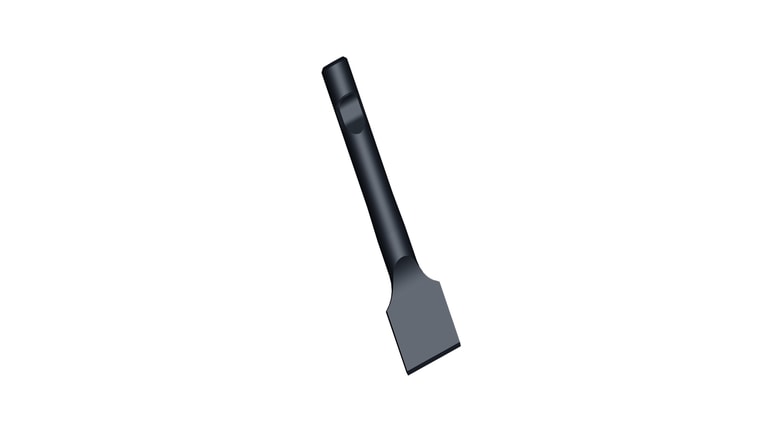

The RAMMER "Spade tool" was specially developed for cutting of asphalt or frozen ground in road construction or infrastructure.
Landscaping

Gardening, graveyard and landscaping applications, hard ground and removal of smaller boulders, concrete fundaments or similar.

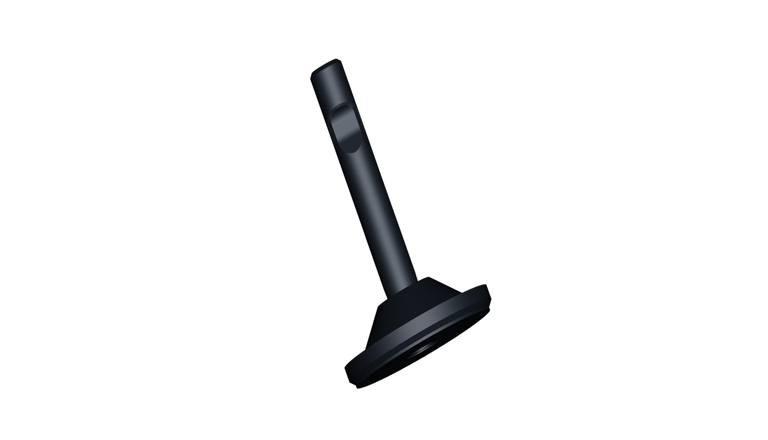

Ground Compacting

With special compacting plate tool.
Underwater breaking

Underwater breaking, be it primary breaking and/or demolition is a specialized application, in which material is broken and removed by equipment which is partly or fully submerged.

Specification sheet Operator manuals

Specification

Minimum working weight, flange mounted *1	150 kg	331 lb
Impact rate (frequency)	600 - 1800 bpm
Operating pressure	120 - 160 bar	1740 - 2320 psi
Oil flow range	20 - 62 l/min	5.3 - 16.4 gal/min
Pressure relief max	220 bar	3190 psi
Back pressure max	30 bar	435 psi
Input power	16.5 kW	22 hp
Tool diameter	60 mm	2.36 in
Skid steer, robot weight, range *2	1.2 - 4.0 t	2600 - 8800 lb
Miniexcavator weight, range *2	2.0 - 6.0 t	4400 - 13200 lb
1 Includes average mounting bracket and standard wear parts 2 Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.
