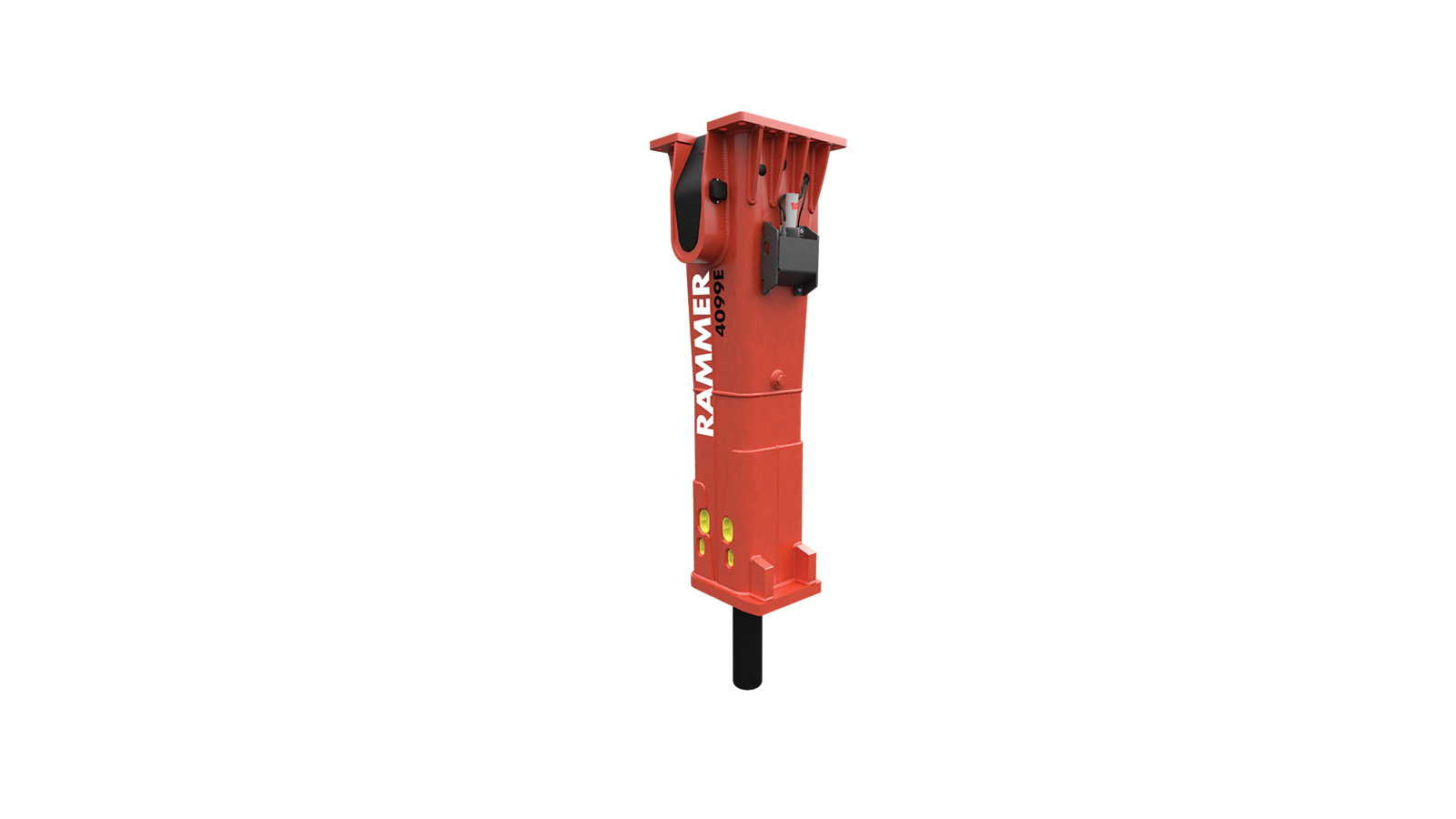

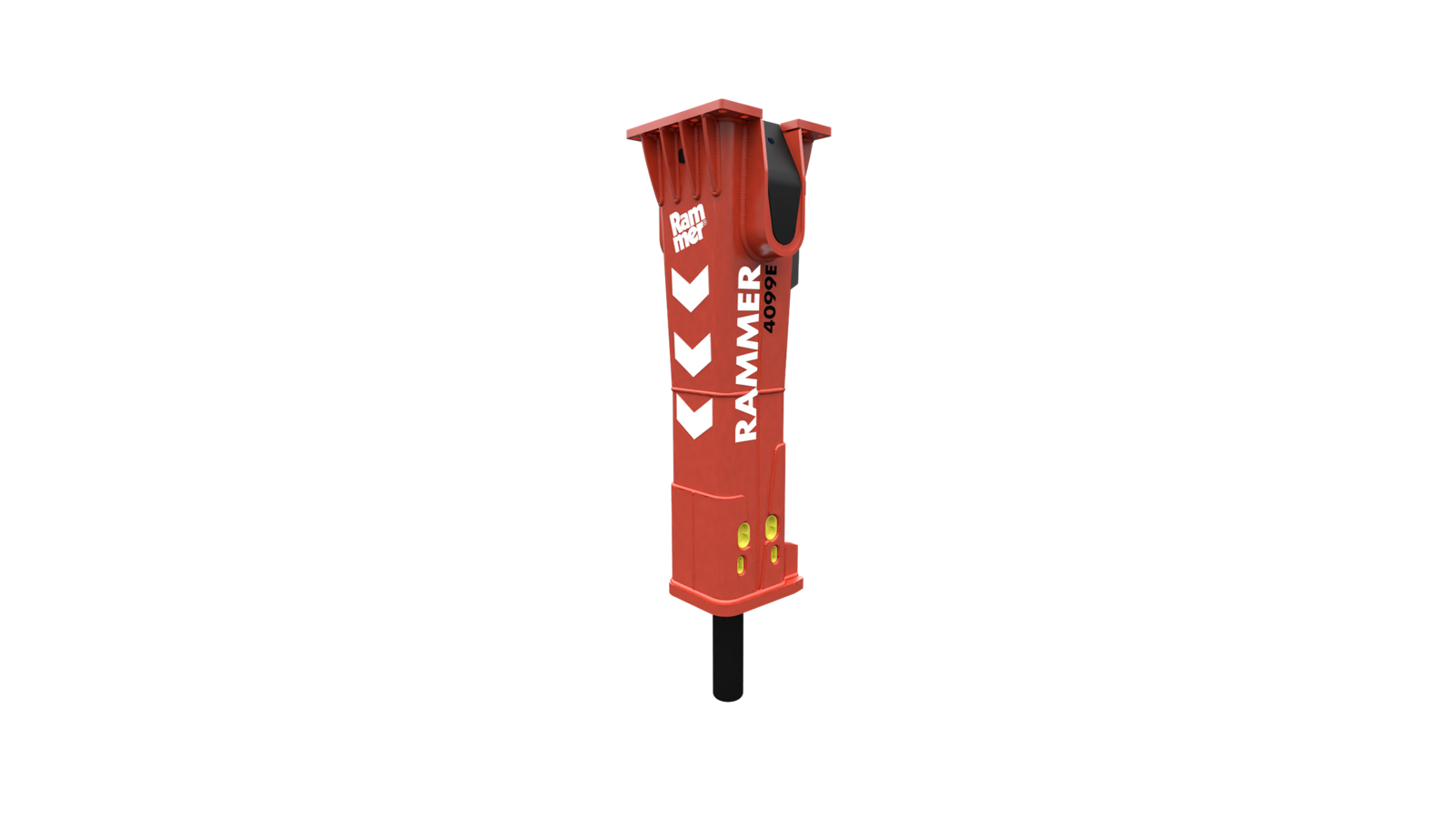

Specification

Minimum working weight, flange mounted  *13380 kg7450 lb
Weight2800 kg6170 lb
Working length2962 mm116.6 in
Impact rate, Long stroke400 - 560 bpm
Impact rate, Short stroke520 - 700 bpm
Operating pressure150 - 160 bar2175 - 2320 psi
Oil flow range250 - 350 l/min66.0 - 92.5 gal/min
Pressure relief setting  *2210 bar3045 psi
Pressure relief max230 bar3335 psi
Back pressure max12 bar175 psi
Input power93 kW125 hp
Tool diameter166 mm6.54 in
Pressure line connection (IN)SAE 6000 psi 1 1/4"
Return line connection (OUT)SAE 6000 psi 1 1/4"
Pressure line size, min. inner diameter32 mm1.26 in
Return line size, min. inner diameter32 mm1.26 in
Grease connectionBSPP-internal 3/8"
Air connection (A)BSPP-internal 3/8"
Optimum oil temperature40 - 60 °C104 - 140 °F
Allowed oil temperature range-20 - 80 °C-4 - 176 °F
Optimum oil viscosity at operating temperature30 - 60 cSt
Allowed viscosity range20 - 1000 cSt
Carrier weight, optimum37 - 50 t81600 - 110200 lb
Carrier weight, range  *336 - 55 t79400 - 121300 lb
Noise level, measured (2000/14/EC)126 dB(A)
Noise level, guaranteed (2000/14/EC)130 dB(A)
*1   Includes average mounting bracket and standard wear parts
*2   Minimum setting = actually measured operating pressure + 50 bar or 725 psi
*3   Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

Specifications are subject to change without notice (Wednesday, February 9, 2022)

Tools

The Standard Chisel Tool is used for rock and reinforced concrete.

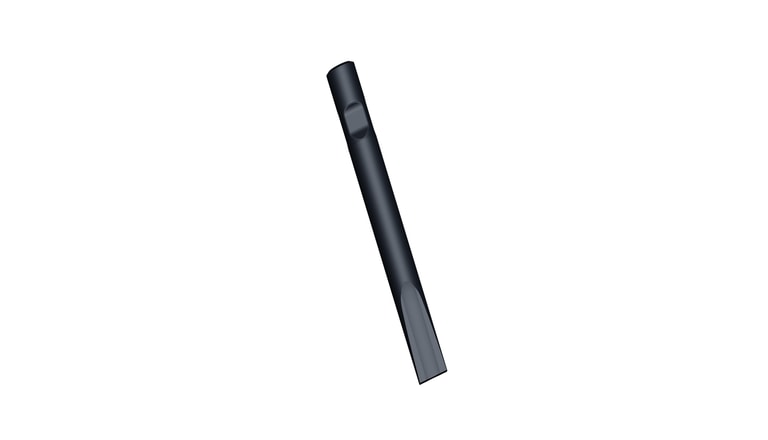

Drilling and blasting have always been the traditional solution when it comes to hard rock. But the hard rock chisel has turned the tides, a...
Limestone Chisel Tool is used in application with high penetration rate. Wedge of tool is large which decrease penetration and so increase c...
The Long Chisel is designed to be used mainly on a breaker boom, where it supplies the extra length to tackle hard rock that may obstruct a ...
Moil Point tools allow for optimum positioning in material which is loose or can be easily separated, e.g. brick walls or loose rock in tunn...

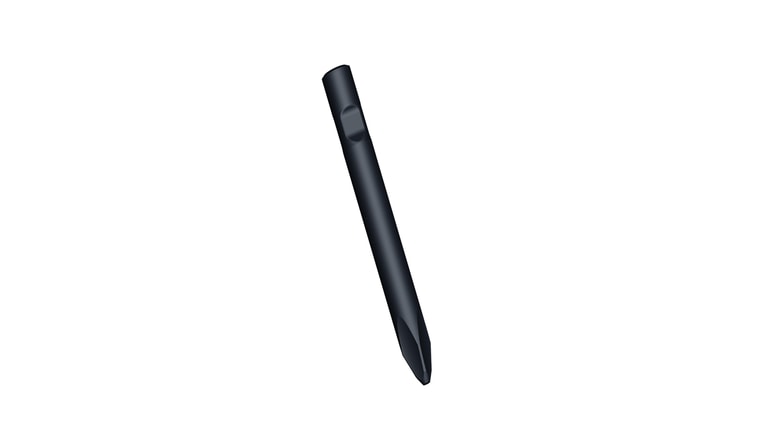

The Pyramid Tool makes light work of breaking non-abrasive material of all strengths. Non-abrasive materials which allow a high penetration ...

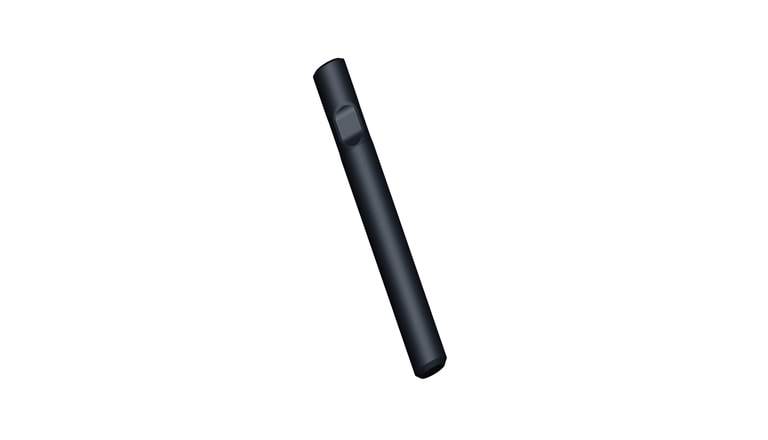

The Standard Blunt tool is designed to deliver the full force of a hammers impact energy directly into the hard materials that it has been d...

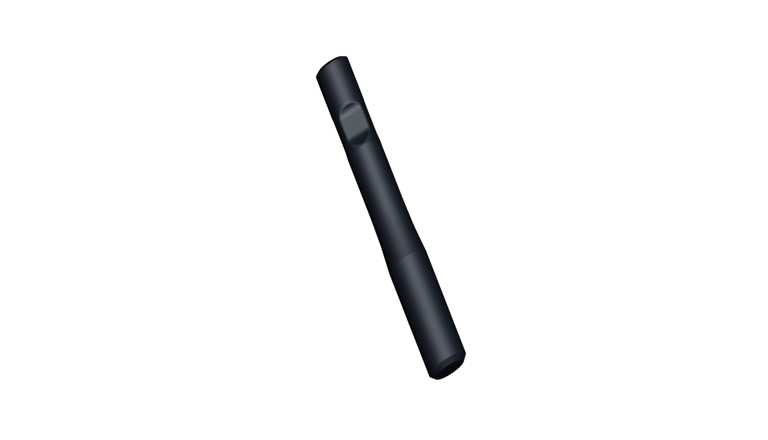

Rammer's Super Blunt tool is designed to deliver the maximum force of a hammer's impact energy directly into boulders. The Super Blunt is on...
The Long Moil Point Tool is designed to be used mainly with a breaker boom where it supplies the extra length to break rock which may block ...

Parts

RD3 is the latest in monitoring technology for hydraulic hammers. The monitoring data is available for all stakeholders through the SAM digi...
Tool grease is essential when using hydraulic hammers. It needs to withstand high temperatures and pressure. Our special tool grease has bee...
Tool grease needs to withstand high temperatures and pressure. But in some climates and applications it may also be exposed to extremely col...
BIO Tool grease is a modern high performance biodegradable grease for hydraulic hammers. This tool grease is specially formulated to be envi...

Accessories

Automatic lubrication system has been designed to ensure a long, trouble-free life specifically for hydraulic hammers. The pump unit is elec...
Ramlube II automatic greasing device can be installed to the existing hammers, to better ensure a long, trouble-free service life.
