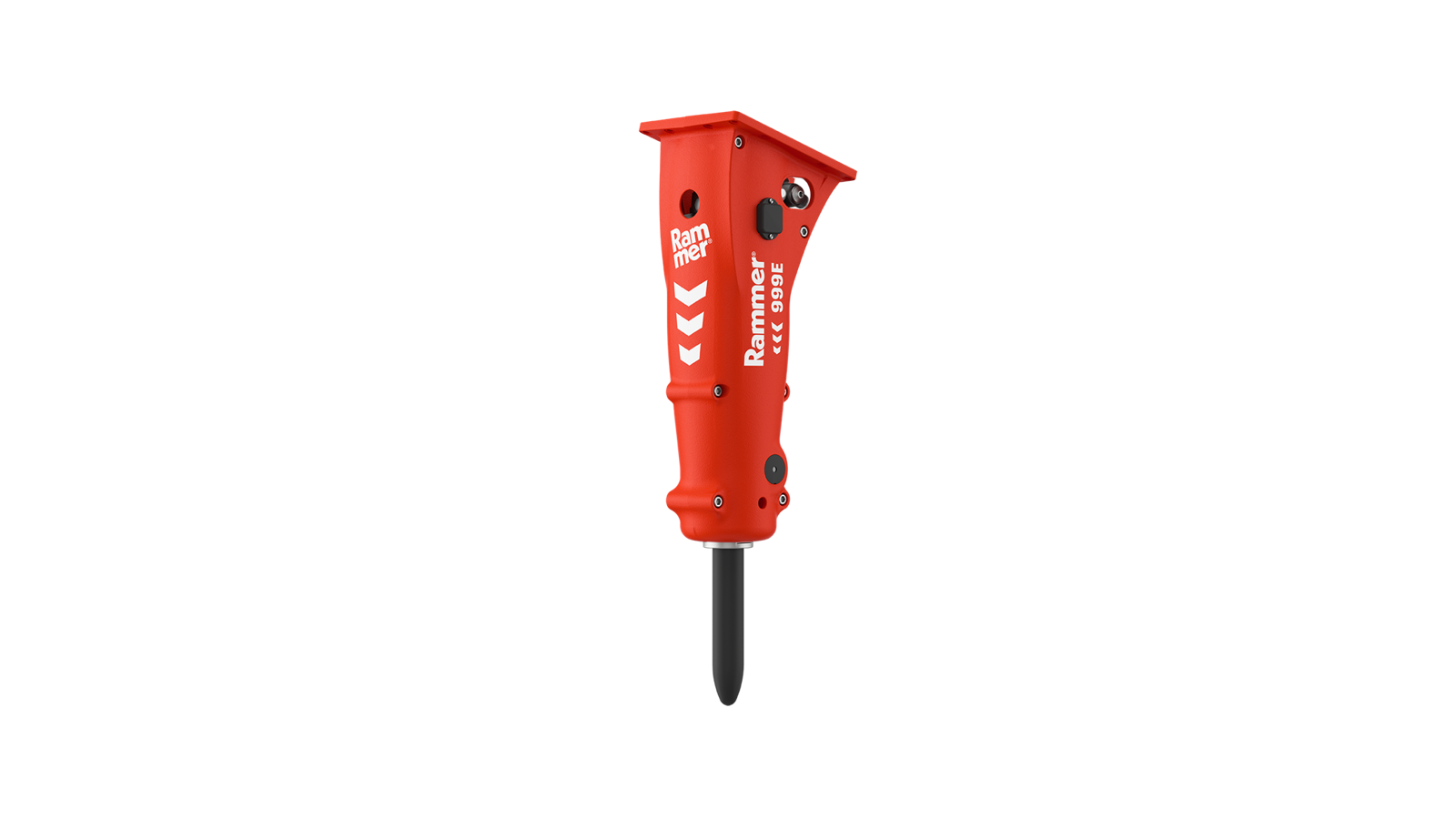

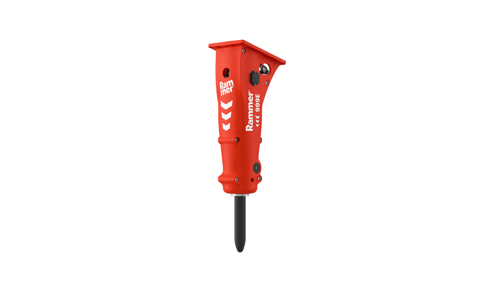

Specification

Minimum working weight, flange mounted  *1505 kg1110 lb
Weight415 kg910 lb
Working length1669 mm65.7 in
Impact rate (frequency)500 - 1700 bpm
Operating pressure100 - 140 bar1450 - 2030 psi
Oil flow range50 - 150 l/min13.2 - 39.6 gal/min
Pressure relief setting  *2150 - 190 bar2175 - 2755 psi
Pressure relief max220 bar3190 psi
Pressure in LP-circuit36 - 38 bar520 - 550 psi
Back pressure max20 bar290 psi
Input power35 kW47 hp
Tool diameter90 mm3.54 in
Pressure line connection (IN)BSPP-internal 1"
Return line connection (OUT)BSPP-internal 1"
Pressure line size, min. inner diameter26 mm1.02 in
Return line size, min. inner diameter26 mm1.02 in
Optimum oil temperature40 - 60 °C104 - 140 °F
Allowed oil temperature range-20 - 80 °C-4 - 176 °F
Optimum oil viscosity at operating temperature30 - 60 cSt
Allowed viscosity range20 - 1000 cSt
Skid steer, robot weight, optimum4.4 - 7.1 t9700 - 15700 lb
Skid steer, robot weight, range  *33.9 - 8.7 t8600 - 19200 lb
Miniexcavator, tractor backhoe weight, Optium6.6 - 10.6 t14600 - 23400 lb
Miniexcavator, tractor backhoe weight, Range  *35.8 - 13.0 t12800 - 28700 lb
Noise level, measured (2000/14/EC)123 dB(A)
Noise level, guaranteed (2000/14/EC)127 dB(A)
*1   Includes average mounting bracket and standard wear parts
*2   Minimum setting = actually measured operating pressure + 50 bar or 725 psi
*3   Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

Specifications are subject to change without notice (Wednesday, August 23, 2023)

Tools

The Standard Chisel Tool is used for rock and reinforced concrete.
The Long Chisel is designed to be used mainly on a breaker boom, where it supplies the extra length to tackle hard rock that may obstruct a ...
Moil Point tools allow for optimum positioning in material which is loose or can be easily separated, e.g. brick walls or loose rock in tunn...

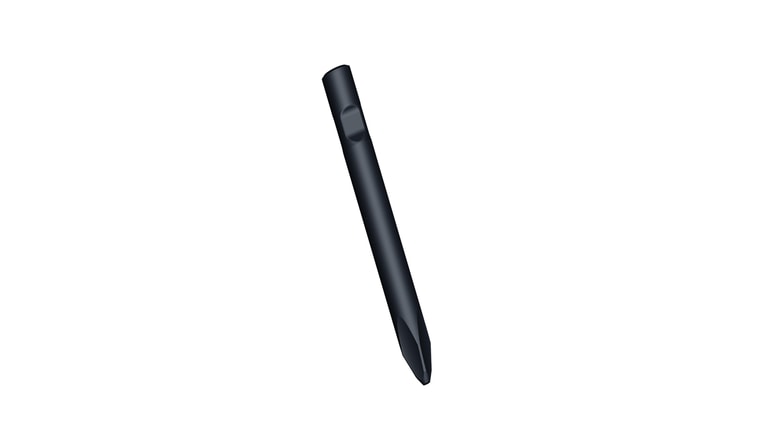

The Pyramid Tool makes light work of breaking non-abrasive material of all strengths. Non-abrasive materials which allow a high penetration ...

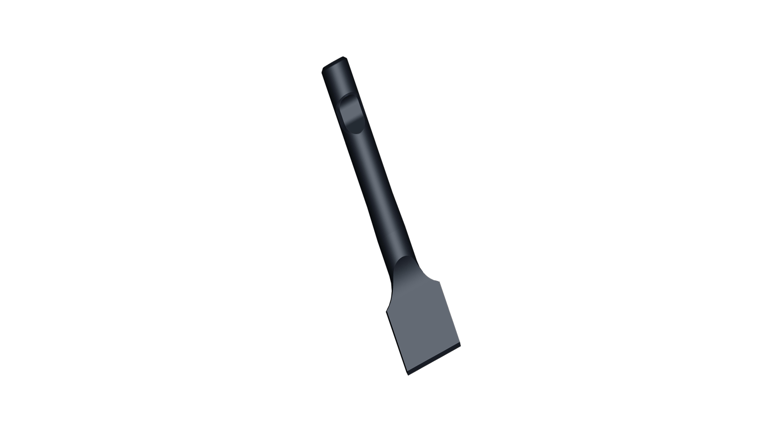

"Parallel" tools have the cutting edge in line with the boom.  Spade tools are ideal for cutting through materials such as asphalt and froze...
"Transverse" tools have the cutting edge across the boom.  Spade tools are ideal for cutting through materials such as asphalt and frozen or...

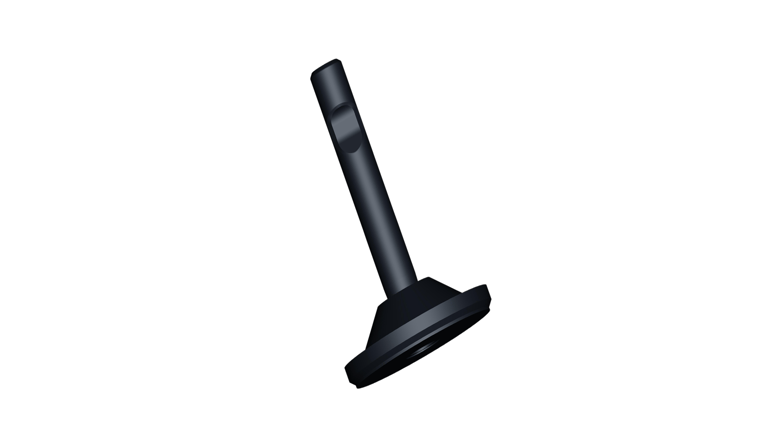

The Ground Compacting Tool allows compatible hammers to double in function as a ground compactor, removing the need to have a specialized co...
The Long Moil Point Tool is designed to be used mainly with a breaker boom where it supplies the extra length to break rock which may block ...

Parts

RD3 is the latest in monitoring technology for hydraulic hammers. The monitoring data is available for all stakeholders through the SAM digi...
The Ramair air flush system is designed to prevent dirt from entering the hammer housing and keep the tool grease flowing towards the lower ...
Tool grease is essential when using hydraulic hammers. It needs to withstand high temperatures and pressure. Our special tool grease has bee...
BIO Tool grease is a modern high performance biodegradable grease for hydraulic hammers. This tool grease is specially formulated to be envi...
