Minimum working weight, flange mounted  *1830 kg1830 lb
Weight682 kg1500 lb
Impact rate (frequency)380 - 750 bpm
Operating pressure100 - 160 bar1450 - 2320 psi
Oil flow range60 - 100 l/min15.9 - 26.4 gal/min
Pressure relief setting  *2200 bar2900 psi
Pressure relief max220 bar3190 psi
Back pressure max15 bar220 psi
Input power27 kW36 hp
Tool diameter90 mm3.54 in
Pressure line connection (IN)BSPP internal 1"
Return line connection (OUT)BSPP internal 1"
Pressure line size, min. inner diameter25 mm0.98 in
Return line size, min. inner diameter25 mm0.98 in
Optimum oil temperature40 - 60 °C104 - 140 °F
Allowed oil temperature range-20 - 80 °C-4 - 176 °F
Optimum oil viscosity at operating temperature30 - 60 cSt
Allowed viscosity range20 - 1000 cSt
Carrier weight, range  *39 - 14 t19800 - 30865 lb
Noise level, measured (2000/14/EC)121 dB(A)
Noise level, guaranteed (2000/14/EC)125 dB(A)
*1   Includes average mounting bracket and standard wear parts
*2   Minimum setting = actually measured operating pressure + 50 bar or 725 psi
*3   Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

Specifications are subject to change without notice (Wednesday, May 19, 2021)


The Standard Chisel Tool is used for rock and reinforced concrete.
Moil Point tools allow for optimum positioning in material which is loose or can be easily separated, e.g. brick walls or loose rock in tunn...

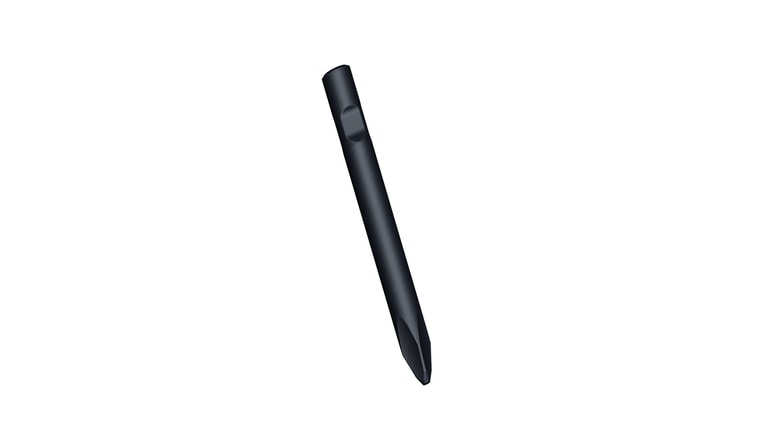

The pyramid tool is a further development of the moil point tool and is intended for penetrative work. Its pyramid shape allows optimal posi...

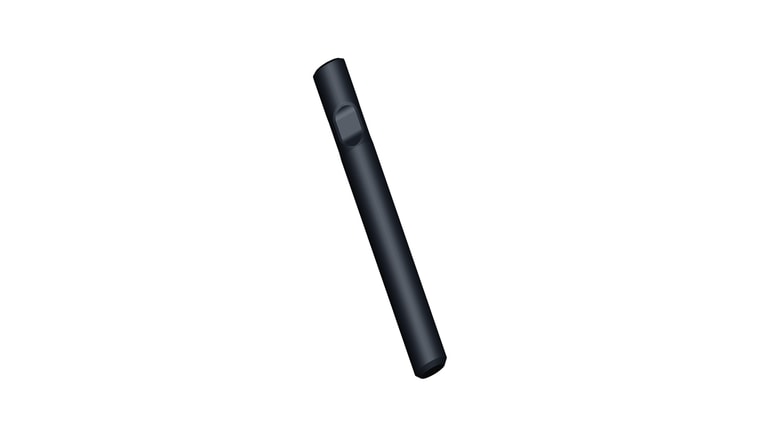

The Standard Blunt tool is designed to deliver the full force of a hammers impact energy directly into the hard materials that it has been d...


RD3 is the latest in monitoring technology for hydraulic hammers. The monitoring data is available for all stakeholders through the MyFleet ...
Tool grease is essential when using hydraulic hammers. It needs to withstand high temperatures and pressure. Our special tool grease has bee...
