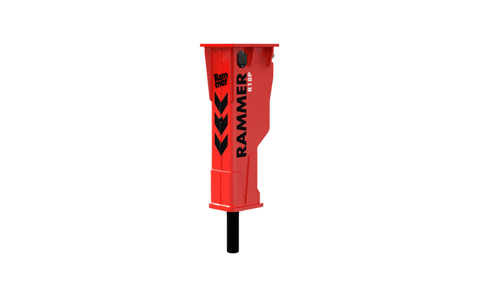

Specification

Minimum working weight, flange mounted  *11240 kg2730 lb
Weight1000 kg2200 lb
Impact rate (frequency)280 - 760 bpm
Operating pressure160 - 180 bar2320 - 2610 psi
Pressure relief min  *2230 bar3335 psi
Pressure relief max250 bar3625 psi
Oil flow range26.4 - 37 gal/min100 - 140 l/min
Back head pressure10 - 15 bar145 - 220 psi
Back pressure max10 bar145 psi
Input power56 hp42 kW
Tool diameter4.72 in120 mm
Pressure line connection (IN)SAE 6000 psi 1
Return line connection (OUT)SAE 6000 psi 1
Pressure line size  *30.75 in19 mm
Return line size  *30.75 in19 mm
Grease connectionBSP internal 3/8"
Air connection (A)BSP internal 1/2"
Optimum oil temperature40 - 60 °C104 - 140 °F
Allowed oil temperature range-20 - 80 °C-4 - 176 °F
Optimum oil viscosity at operating temperature30 - 60 cSt
Allowed viscosity range20 - 1000 cSt
Carrier weight, range  *433100 - 50700 lb15 - 23 t
Noise level, measured (2000/14/EC)118 dB(A)
Noise level, guaranteed (2000/14/EC)122 dB(A)
*1   Includes average mounting bracket and standard tool
*2   Minimum setting = actual operating pressure + 50 bar or 725 psi
*3   minimum inner diameter
*4   Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

Specifications are subject to change without notice (Sunday, August 27, 2017)

Tools

The Standard Chisel Tool is design to suply the breaking means to tackle hard rock and re-enforced concrete.

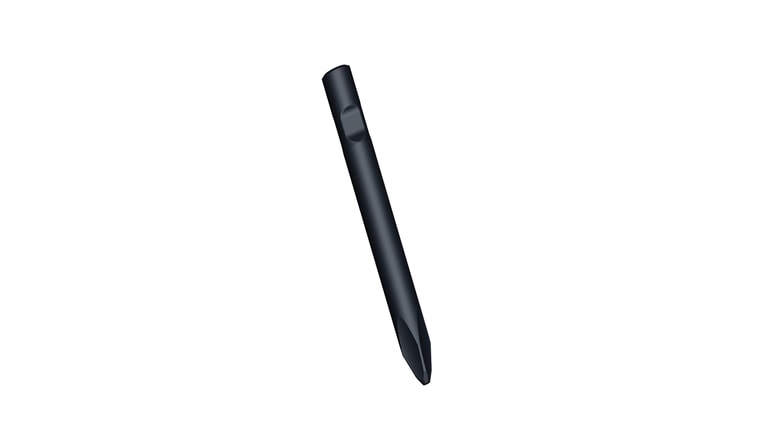

Moil Point tools allow for optimum positioning in material which are loose or can be easily separated, eg brick walls or loose rock in tunne...

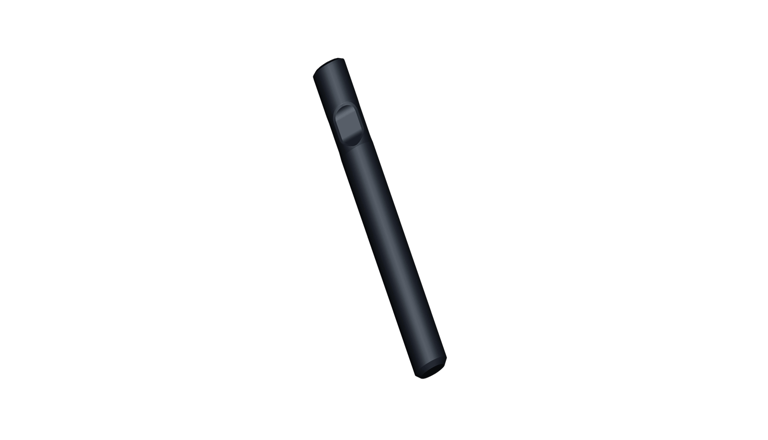

The Standard Blunt tool is designed to deliver the full force of a hammers impact energy directly into the hard materials that it has been d...
