Minimum working weight, flange mounted  *195 kg209 lb
Weight75 kg165 lb
Impact rate (frequency)700 - 1400 bpm
Operating pressure80 - 120 bar1160 - 1740 psi
Oil flow range15 - 25 l/min4 - 6.6 gal/min
Pressure relief setting  *2150 bar2175 psi
Pressure relief max170 bar2465 psi
Back pressure max20 bar190 psi
Input power5 kW7 hp
Tool diameter40 mm1.57 in
Pressure line connection (IN)BSPP-internal 1/2"
Return line connection (OUT)BSPP-internal 1/2"
Pressure line size, min. inner diameter12 mm0.47 in
Return line size, min. inner diameter12 mm0.47 in
Optimum oil temperature40 - 60 °C104 - 140 °F
Allowed oil temperature range-20 - 80 °C-4 - 176 °F
Optimum oil viscosity at operating temperature30 - 60 cSt
Allowed viscosity range20 - 1000 cSt
Skid steer, robot weight, range  *30.7 - 1.6 t1500 - 3500 lb
Carrier weight, range  *30.8 - 2.1 t1800 - 4600 lb
Noise level, measured (2000/14/EC)110 dB(A)
Noise level, guaranteed (2000/14/EC)114 dB(A)
*1   Includes average mounting bracket and standard wear parts
*2   Minimum setting = actually measured operating pressure + 50 bar or 725 psi
*3   Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

Specifications are subject to change without notice (Monday, June 27, 2022)

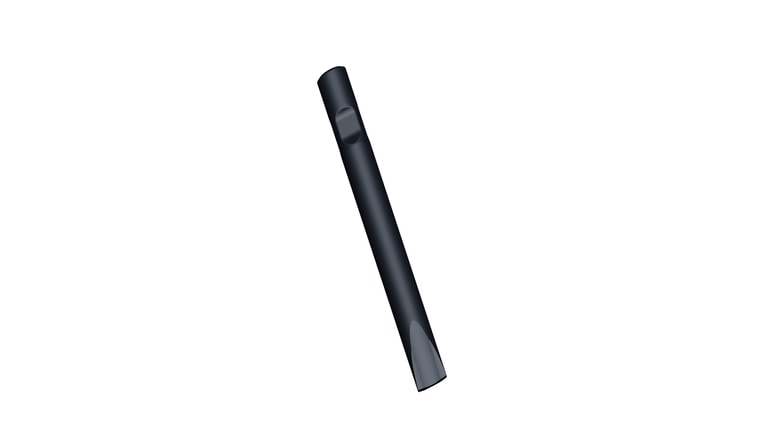

The Standard Chisel Tool is used for rock and reinforced concrete.

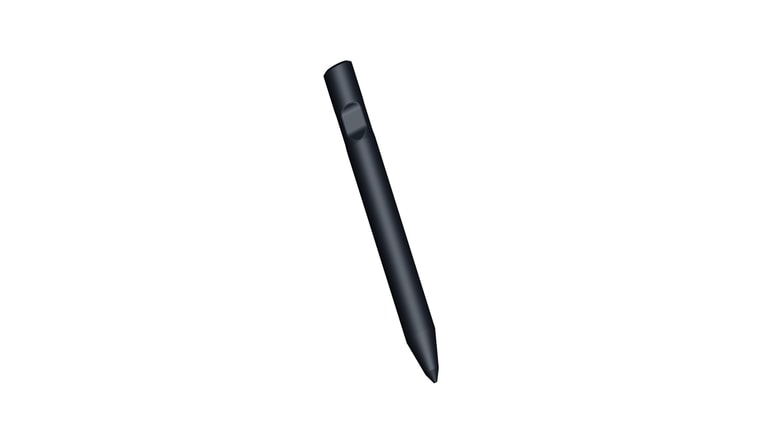

Moil Point tools allow for optimum positioning in material which is loose or can be easily separated, e.g. brick walls or loose rock in tunn...

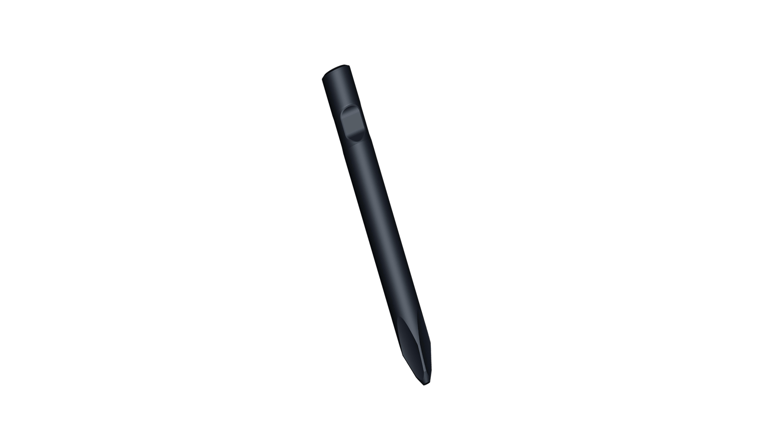

The pyramid tool is a further development of the moil point tool and is intended for penetrative work. Its pyramid shape allows optimal posi...


Tool grease is essential when using hydraulic hammers. It needs to withstand high temperatures and pressure. Our special tool grease has bee...
BIO Tool grease is a modern high performance biodegradable grease for hydraulic hammers. This tool grease is specially formulated to be envi...
