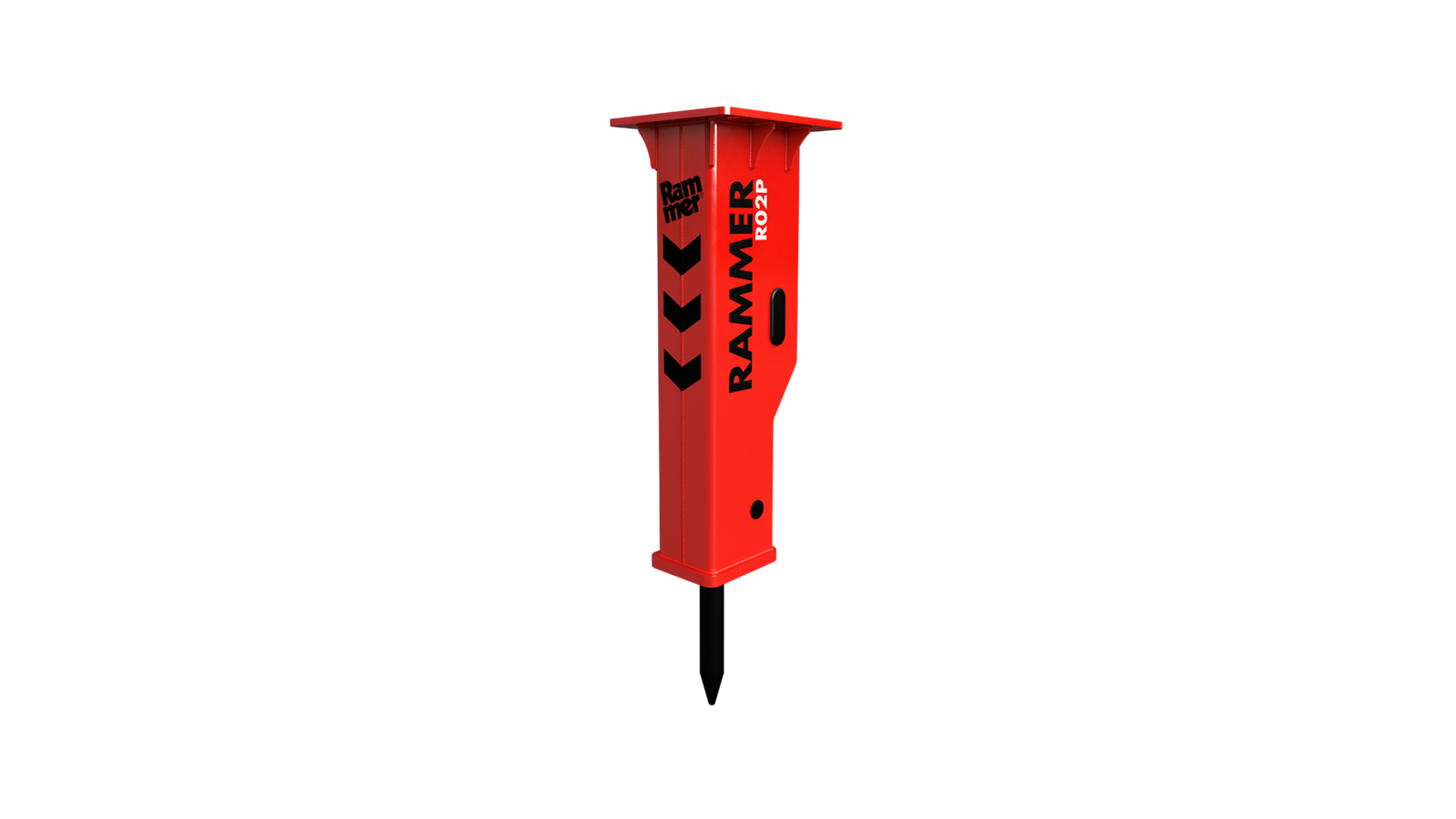

The Rammer R02P is your reliable and profitable solution for carriers between 1.3-3.3 tons. The 130 kg hammer features a robust, silenced and vibration suppressed housing, which increases both application versatility and housing lifetime.
The R02P's simple impact unit design with piston accumulator operating principle and excellent power-to-weight ratio guarantees low owning and operating costs.
The twin handed design allows optimal mounting on both left and right handed carriers, prolonging the service life of the hose connections.
Easy installation for hydraulic quick hitch mounting brackets.
Less vibrations and at the same time significantly lower noise levels are achieved with this ultra-modern, low-wear design.
This protects the operator, the carrier and relieves the environment.
This extends your range of applications on narrow job sites and wherever noise protection is required.
The Flange mounting design allows for the use of existing mounting plates, as well as carrier and application specific customization.
Quick and safe tool change system transverse to the hammer. No need to reach under the hammer during tool change.
RD3 device for SAM service available for retrofit installation. Please consult your distributor for proper version.
Online hour meter and location tracking in Google MapsTM
All our experience reflects the unique quality and reliability of RAMMER original tools.

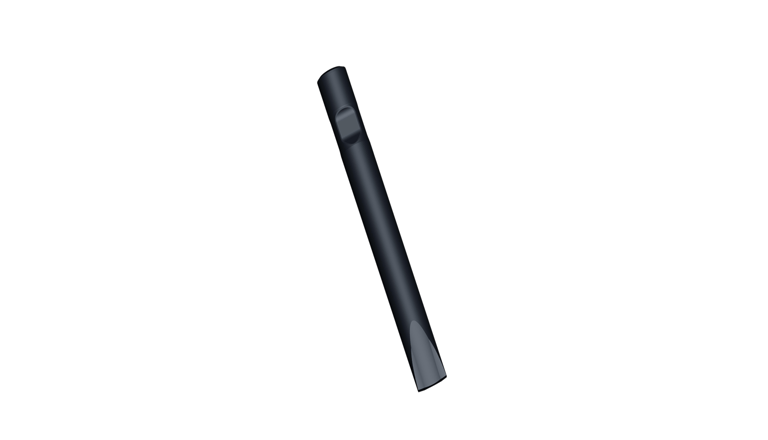

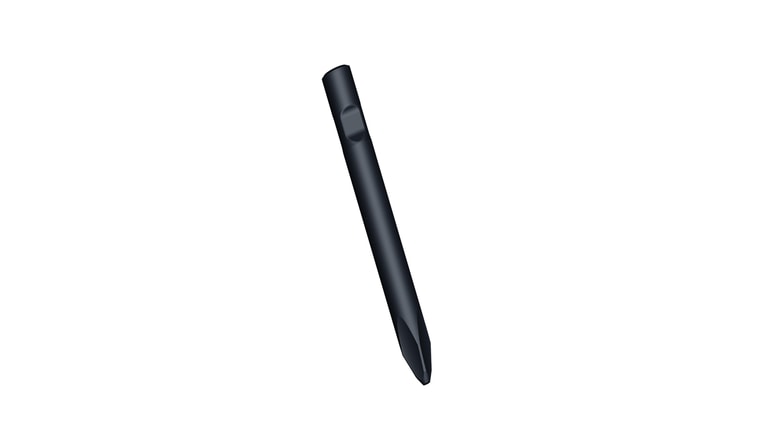

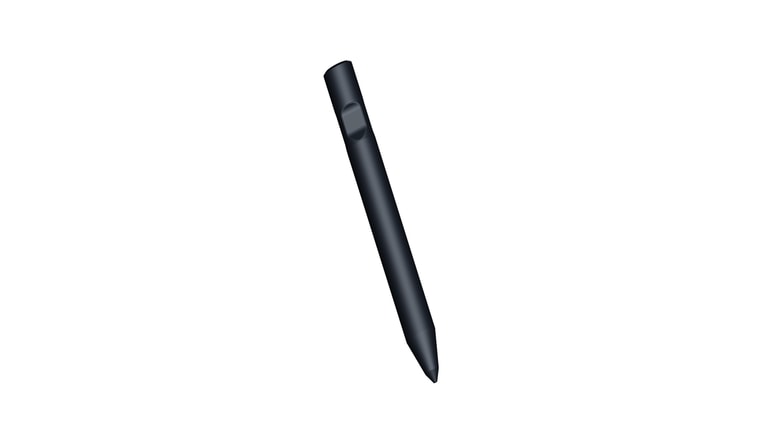

You are advised to choose the right RAMMER tool for every application. This will increase your production and reduce your costs.
The nitrogen piston accumulator is a safe and durable design, thanks to the use of the latest sealing technologies, .
Fail-safe operation, high impact energy and simple and fast service help to improve your operating results.
RAMMER sets the standard in the industry with these outstanding values in the power-to-weight ratio.
The impact force has been increased and at the same time the operating weight has been optimized.
Demolition of standing buildings and structures.
Trenching is a form of primary breaking in which a narrow trench is excavated especially for laying pipes, cables or for installing drainage
Demolition of larger pieces on the ground (size reduction, separation and preliminary sorting tasks)
Re-using parts or material which has been extracted from existing buildings or structures.
Recyclng of products: Re-use of material or parts as such
Recycling of material: Re-use of material for other purposes
Gardening, graveyard and landscaping applications, hard ground and removal of smaller boulders, concrete fundaments or similar.
Rental includes most applications
| Minimum working weight, flange mounted *1 | 130 kg | 290 lb |
| Weight | 101 kg | 220 lb |
| Impact rate (frequency) | 450 - 1400 bpm | |
| Operating pressure | 60 - 120 bar | 870 - 1740 psi |
| Oil flow range | 15 - 40 l/min | 4.0 - 10.6 gal/min |
| Pressure relief setting *2 | 150 bar | 2175 psi |
| Pressure relief max | 170 bar | 2465 psi |
| Back pressure max | 20 bar | 290 psi |
| Input power | 8 kW | 11 hp |
| Tool diameter | 46 mm | 1.81 in |
| Pressure line connection (IN) | BSPP-internal 1/2" | |
| Return line connection (OUT) | BSPP-internal 1/2" | |
| Pressure line size, min. inner diameter | 12 mm | 0.47 in |
| Return line size, min. inner diameter | 12 mm | 0.47 in |
| Optimum oil temperature | 40 - 60 °C | 104 - 140 °F |
| Allowed oil temperature range | -20 - 80 °C | -4 - 176 °F |
| Optimum oil viscosity at operating temperature | 30 - 60 cSt | |
| Allowed viscosity range | 20 - 1000 cSt | |
| Skid steer, robot weight, range *3 | 1.2 - 2.2 t | 2600 - 4850 lb |
| Carrier weight, range *3 | 1.3 - 3.3 t | 2900 - 7275 lb |
| Noise level, measured (2000/14/EC) | 114 dB(A) | |
| Noise level, guaranteed (2000/14/EC) | 118 dB(A) | |
| *1 Includes average mounting bracket and standard wear parts *2 Minimum setting = actually measured operating pressure + 50 bar or 725 psi *3 Check carrier allowed attachment weight from carrier manufacturer. Check application requirements. |
||
Specifications are subject to change without notice (Wednesday, March 8, 2023)
