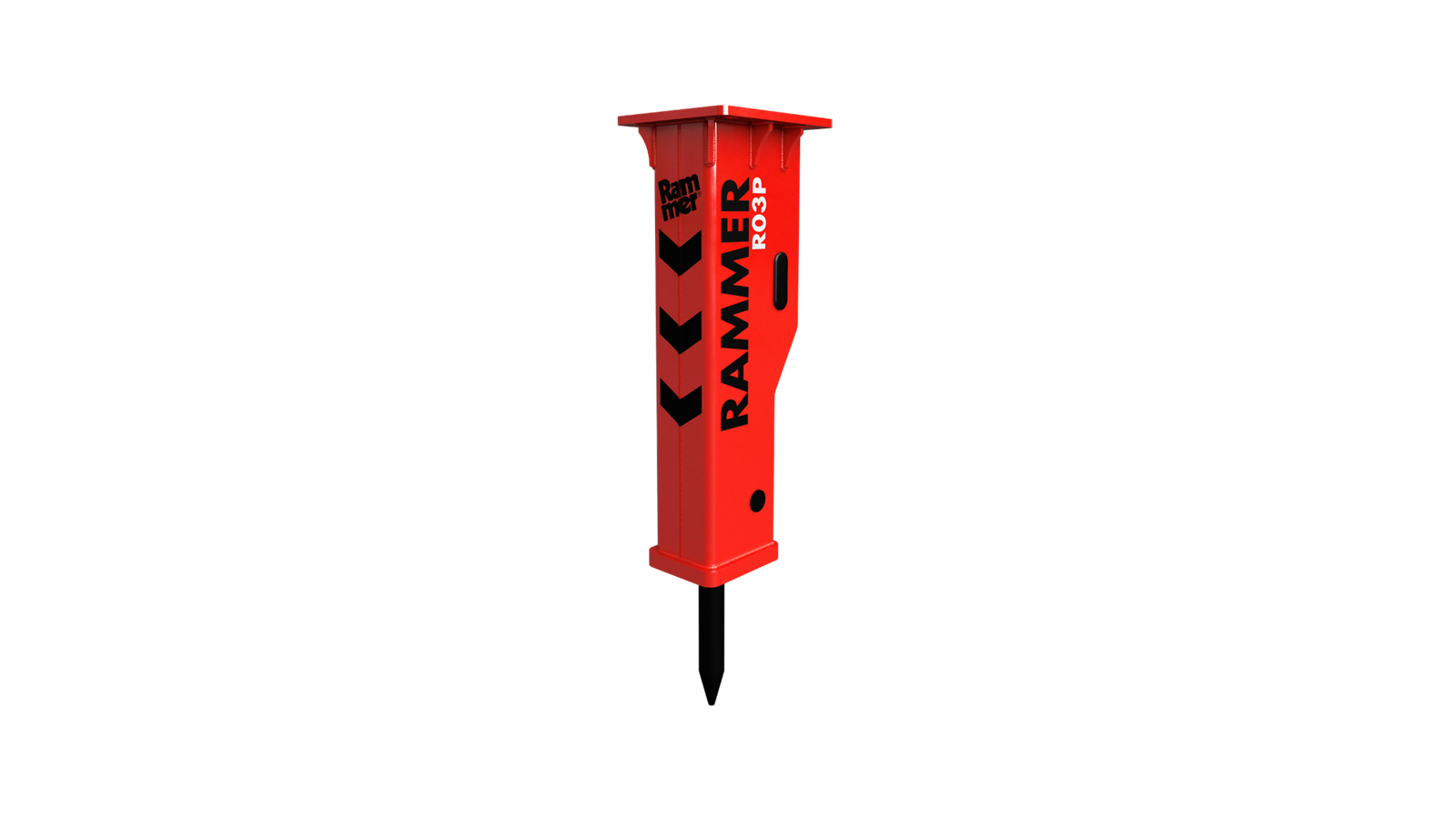

Specification

Minimum working weight, flange mounted  *1180 kg400 lb
Weight145 kg320 lb
Impact rate (frequency)600 - 1200 bpm
Operating pressure75 - 120 bar1090 - 1740 psi
Pressure relief setting  *2150 bar2175 psi
Pressure relief max170 bar2465 psi
Oil flow range25 - 50 l/min6.6 - 13.2 gal/min
Back pressure max20 bar290 psi
Input power10 kW13 hp
Tool diameter53 mm2.09 in
Pressure line connection (IN)BSPP-internal 1/2"
Return line connection (OUT)BSPP-internal 1/2"
Pressure line size, min. inner diameter12 mm0.47 in
Return line size, min. inner diameter12 mm0.47 in
Optimum oil temperature40 - 60 °C104 - 140 °F
Allowed oil temperature range-20 - 80 °C-4 - 176 °F
Optimum oil viscosity at operating temperature30 - 60 cSt
Allowed viscosity range20 - 1000 cSt
Skid steer, robot weight, range  *31.4 - 3.2 t3100 - 7055 lb
Carrier weight, range  *32.0 - 4.4 t4400 - 9700 lb
Noise level, measured (2000/14/EC)112 dB(A)
Noise level, guaranteed (2000/14/EC)116 dB(A)
*1   Includes average mounting bracket and standard tool
*2   Minimum setting = actually measured operating pressure + 50 bar or 725 psi
*3   Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

Specifications are subject to change without notice (Tuesday, March 31, 2020)

Tools

The Standard Chisel Tool is used for rock and reinforced concrete.
Moil Point tools allow for optimum positioning in material which is loose or can be easily separated, e.g. brick walls or loose rock in tunn...
The pyramid chisel is a further development of the moil point tool and is intended for penetrative work. Its pyramide shape allows optimal p...

Parts

Tool grease is essential when using hydraulic hammers. It needs to withstand high temperatures and pressure. Our special tool grease has bee...
