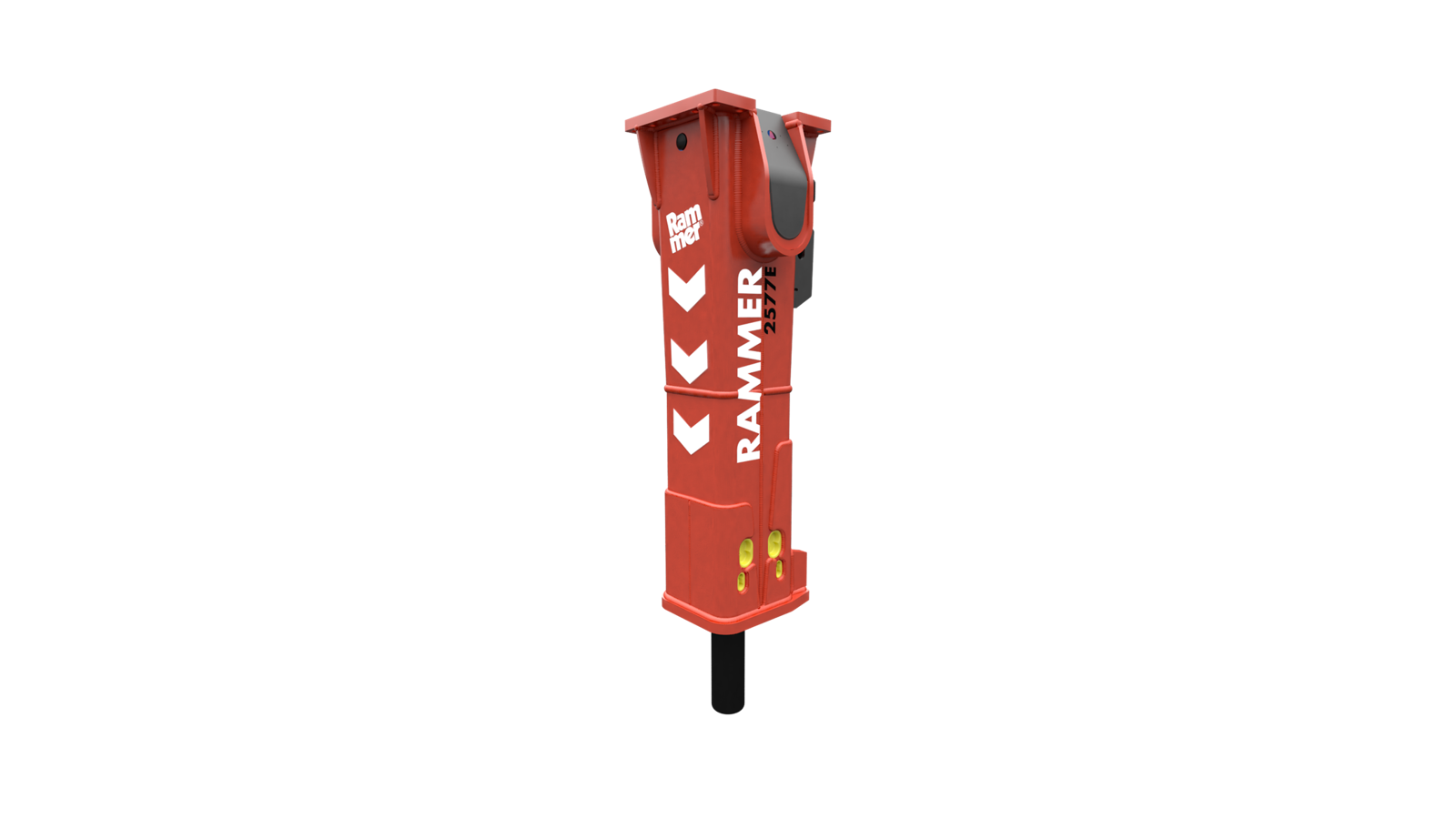

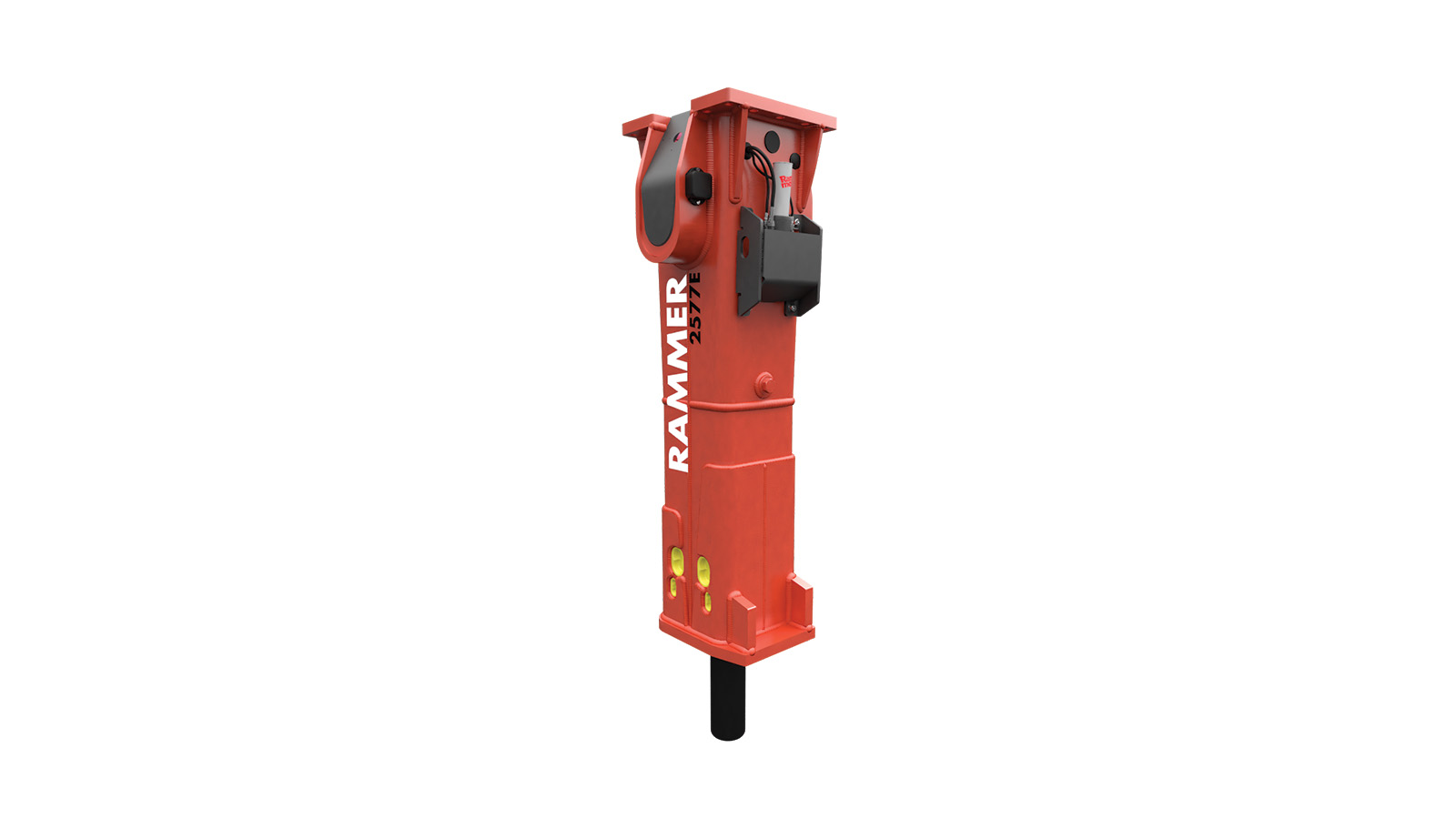

Specification

Minimum working weight, flange mounted  *11670 kg3680 lb
Weight1460 kg3220 lb
Working length2299 mm90.5 in
Impact rate (frequency)450 - 750 bpm
Operating pressure135 - 145 bar1960 - 2105 psi
Pressure relief setting  *2190 bar2755 psi
Pressure relief max220 bar3190 psi
Oil flow range140 - 200 l/min37.0 - 52.8 gal/min
Back pressure max10 bar145 psi
Input power48 kW64 hp
Tool diameter135 mm5.31 in
Pressure line connection (IN)SAE 6000 psi 1 1/4"
Return line connection (OUT)SAE 6000 psi 1 1/4"
Pressure line size, min. inner diameter26 mm1.02 in
Return line size, min. inner diameter32 mm1.26 in
Grease connectionBSPP-internal 3/8"
Air connection (A)BSPP-internal 3/8"
Optimum oil temperature40 - 60 °C104 - 140 °F
Allowed oil temperature range-20 - 80 °C-4 - 176 °F
Optimum oil viscosity at operating temperature30 - 60 cSt
Allowed viscosity range20 - 1000 cSt
Carrier weight, optimum23 - 30 t50700 - 66100 lb
Carrier weight, range  *321 - 32 t46300 - 70500 lb
Noise level, measured (2000/14/EC)120 dB(A)
Noise level, guaranteed (2000/14/EC)124 dB(A)
*1   Includes average mounting bracket and standard tool
*2   Minimum setting = actually measured operating pressure + 50 bar or 725 psi
*3   Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

Specifications are subject to change without notice (Monday, February 24, 2020)

Tools

The Standard Chisel Tool is used for rock and reinforced concrete.

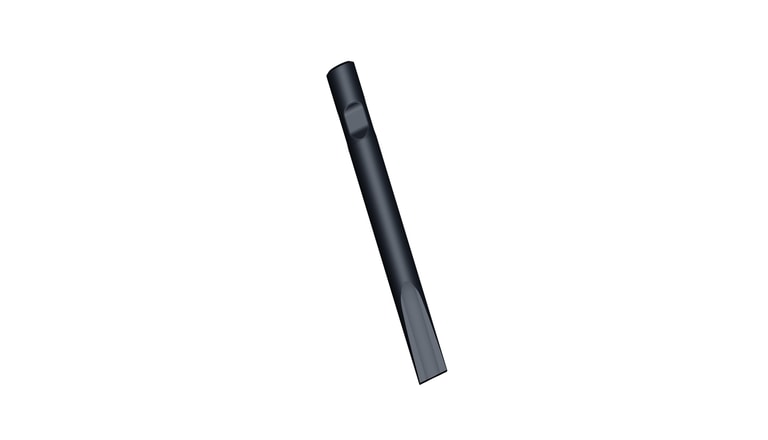

Drilling and blasting have always been the traditional solution when it comes to hard rock. But the hard rock chisel has turned the tides, a...

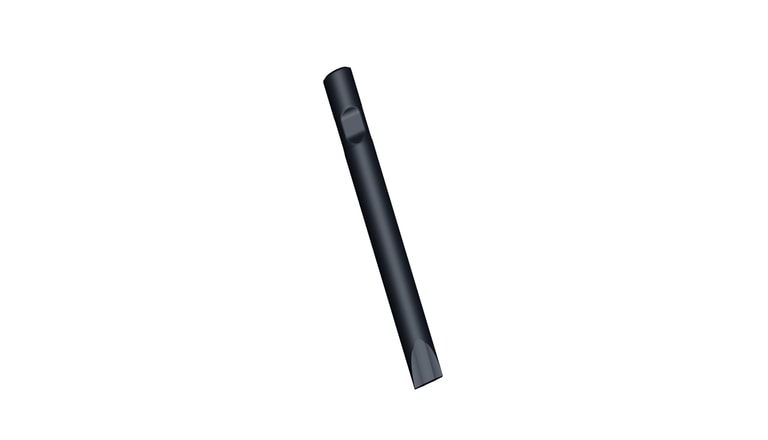

Limestone Chisel Tool is used in application with high penetration rate. Wedge of tool is large which decrease penetration and so increase c...
The Long Chisel is designed to be used mainly on a breaker boom, where it supplies the extra length to tackle hard rock that may obstruct a ...
The Long Blunt tool is designed to provide that extra reach, which a standard blunt can't supply. The Long Blunt is designed to be utilized ...
The Long Moil Point Tool is designed to be used mainly with a breaker boom where it supplies the extra length to break rock which may block ...
Moil Point tools allow for optimum positioning in material which is loose or can be easily separated, e.g. brick walls or loose rock in tunn...

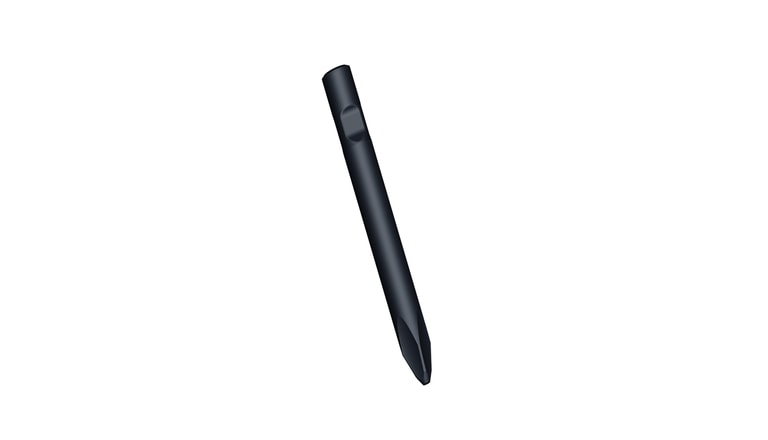

The Pyramid Tool makes light work of breaking non-abrasive material of all strengths. Non-abrasive materials which allow a high penetration ...

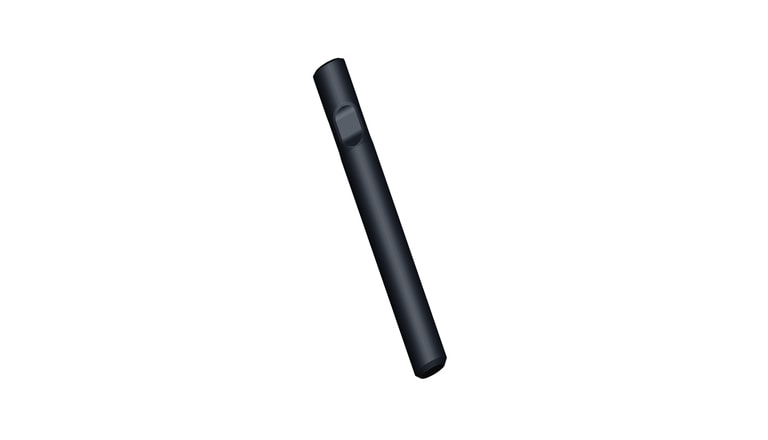

The Standard Blunt tool is designed to deliver the full force of a hammers impact energy directly into the hard materials that it has been d...

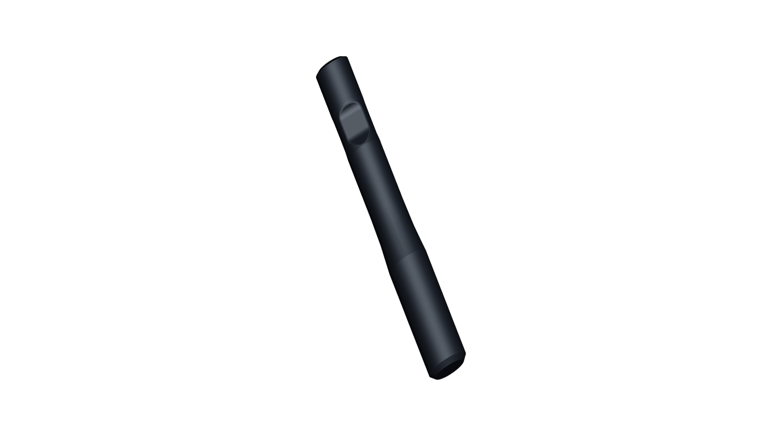

Rammer's Super Blunt tool is designed to deliver the maximum force of a hammer's impact energy directly into boulders. The Super Blunt is on...

Parts

RD3 is the latest in monitoring technology for hydraulic hammers. The monitoring data is available for all stakeholders through the MyFleet ...
Tool grease is essential when using hydraulic hammers. It needs to withstand high temperatures and pressure. Our special tool grease has bee...
Tool grease is essential when using hydraulic hammers. It needs to withstand high temperatures and pressure. Rammer Special Tool Grease does...
Tool grease is essential when using hydraulic hammers. It needs to withstand high temperatures and pressure. But in some climates and applic...

Accessories

Automatic lubrication system designed to ensures a long, trouble-free life specifically for hydraulic hammers. The pump unit is electrically...
Ramlube II automatic greasing device can be installed to the existing hammers, to better ensure a long, trouble-free service life
