Specification

Minimum working weight, flange mounted  *1275 kg610 lb
Weight228 kg500 lb
Working length1261 mm49.6 in
Impact rate (frequency)600 - 1800 bpm
Operating pressure90 - 140 bar1305 - 2030 psi
Pressure relief setting  *2140 - 200 bar2030 - 2900 psi
Pressure relief max220 bar3190 psi
Pressure in LP-circuit36 - 38 bar520 - 550 psi
Oil flow range36 - 90 l/min9.2 - 23.8 gal/min
Back pressure max20 bar290 psi
Input power21 kW28 hp
Tool diameter72 mm2.83 in
Pressure line connection (IN)BSPP-internal 3/4"
Return line connection (OUT)BSPP-internal 3/4"
Pressure line size, min. inner diameter19 mm0.75 in
Return line size, min. inner diameter19 mm0.75 in
Optimum oil temperature40 - 60 °C104 - 140 °F
Allowed oil temperature range-20 - 80 °C-4 - 176 °F
Optimum oil viscosity at operating temperature30 - 60 cSt
Allowed viscosity range20 - 1000 cSt
Skid steer, robot weight, optimum2.4 - 3.9 t5290 - 8600 lb
Skid steer, robot weight, range  *31.9 - 5.3 t4200 - 11680 lb
Miniexcavator, tractor backhoe weight, Optium3.6 - 5.8 t7900 - 12800 lb
Miniexcavator, tractor backhoe weight, Range  *33.2 - 8.0 t7050 - 17600 lb
Noise level, measured (2000/14/EC)118 dB(A)
Noise level, guaranteed (2000/14/EC)122 dB(A)
*1   Includes average mounting bracket and standard tool
*2   Minimum setting = actually measured operating pressure + 50 bar or 725 psi
*3   Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

Specifications are subject to change without notice (Tuesday, February 25, 2020)

Tools

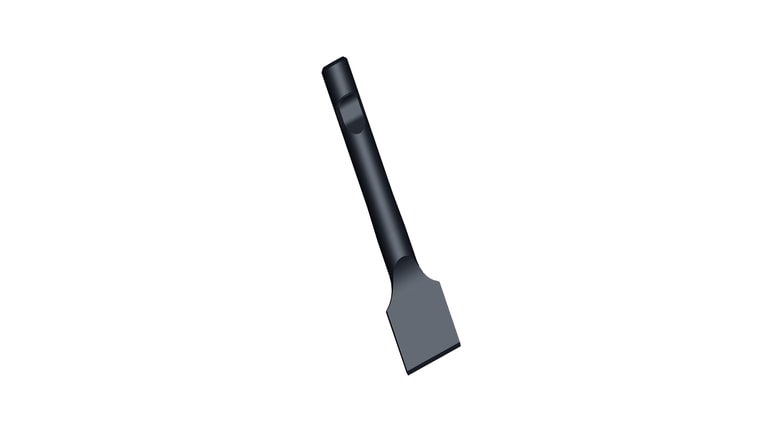

The Standard Chisel Tool is used for rock and reinforced concrete.
Moil Point tools allow for optimum positioning in material which is loose or can be easily separated, e.g. brick walls or loose rock in tunn...
The Pyramid Tool makes light work of breaking non-abrasive material of all strengths. Non-abrasive materials which allow a high penetration ...
"Parallel" tools have the cutting edge in line with the boom.  For the hammer models 255E, 355E, 455E, 555E, 777E , 999E and 1322E the tool ...
"Transverse" tools have the cutting edge across the boom.  For the hammer models 255E, 355E, 455E, 555E, 777E and 1322E the tool retaining p...

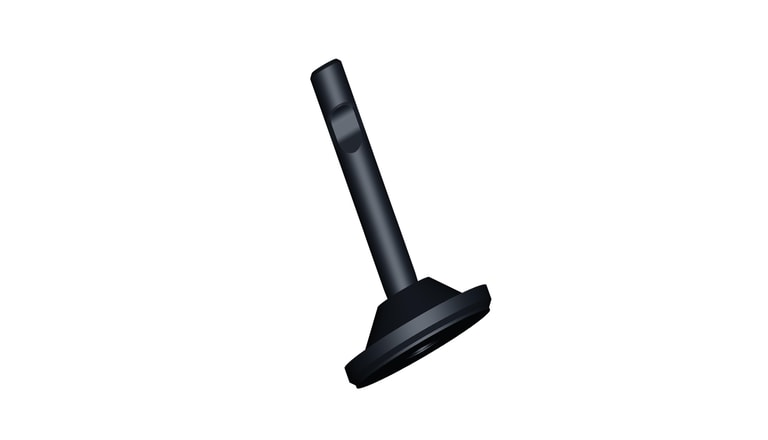

The Ground Compacting Tool allows compatible hammers to double in function as a ground compactor, removing the need to have a specialized co...
The Long Moil Point Tool is designed to be used mainly with a breaker boom where it supplies the extra length to break rock which may block ...

Parts

RD3 is the latest in monitoring technology for hydraulic hammers. The monitoring data is available for all stakeholders through the MyFleet ...
Tool grease is essential when using hydraulic hammers. It needs to withstand high temperatures and pressure. Our special tool grease has bee...
