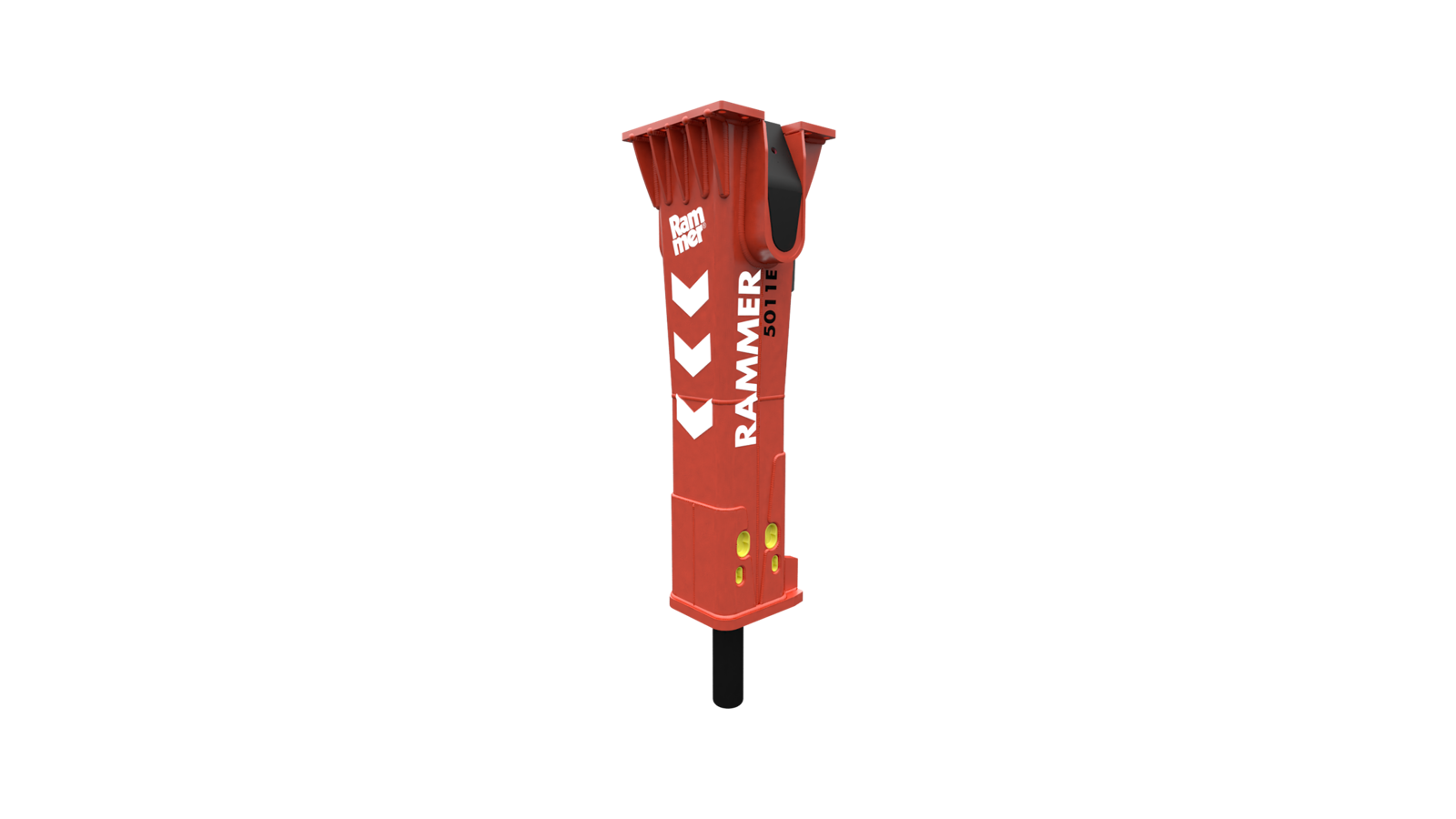

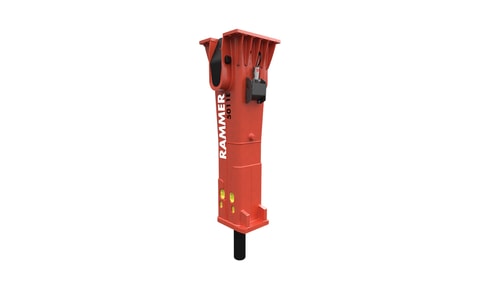

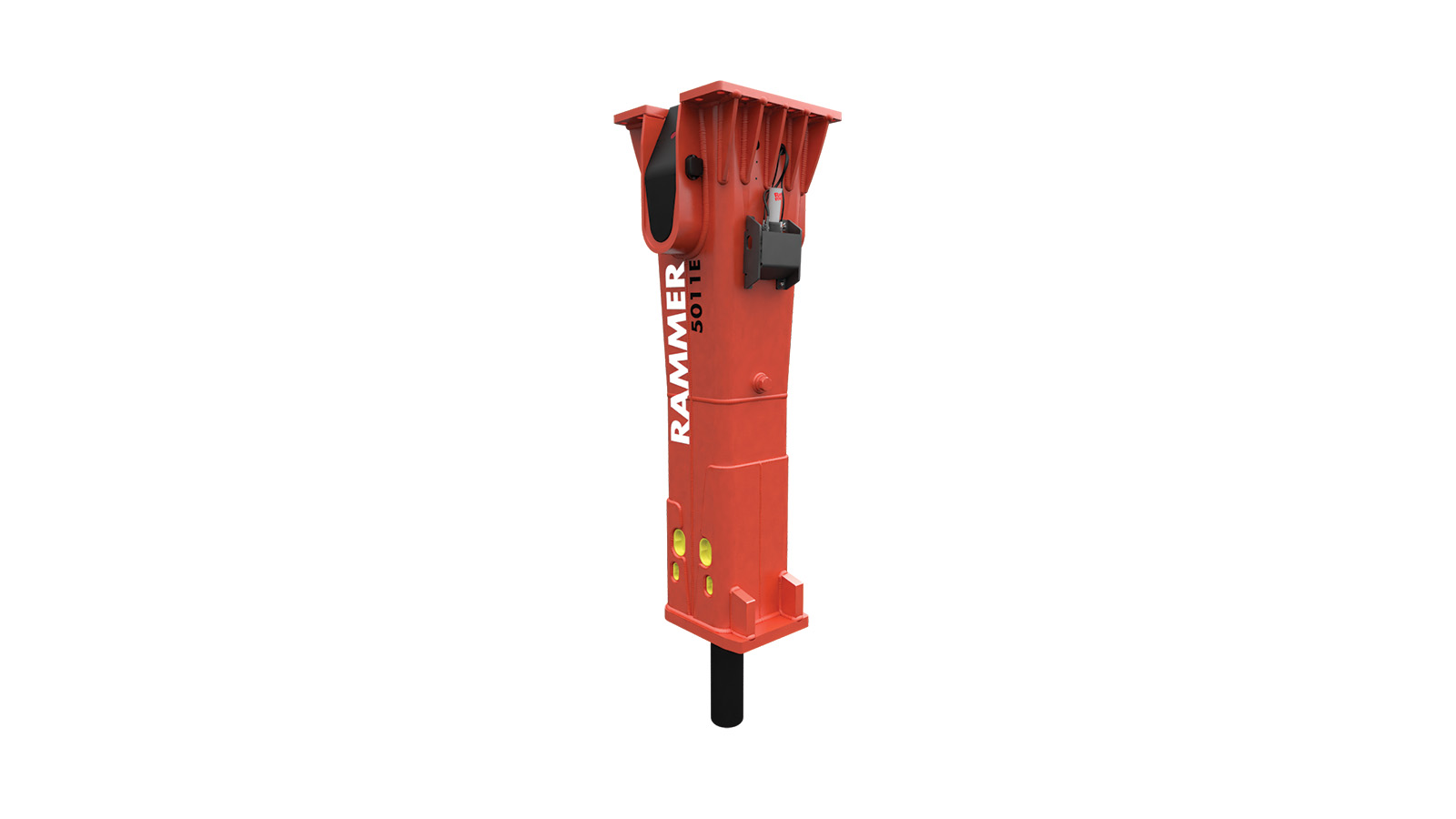

The 4,750 kg Rammer 5011E hammer is suitable for carriers between 43 and 80 tons. Designed by using a revolutionary new operating principle which combines stroke length, blow energy and Rammer’s idle blow protector, allowing the hammer to be adjusted to match individual carriers and applications, improving hydraulic efficiency and safety.
The Rammer 55011E comes with the remote monitoring hardware RD3 installed.
Membrane-type accumulator eliminates Nitrogen leakages, ensuring constant maximum impact power and eliminating the need for recharging in field.
This design allows faster and safer on-site troubleshooting and service.
Optimal setup for air cargo.
The ability to rotate the powercell 180 degress is part of the twin-handed design, allowing for optimal mounting on both left and right handed carriers, prolonging the service life of the hose connections.
Less vibrations and at the same time significantly lower noise levels are achieved with this ultra-modern, low-wear design.
This protects the operator, the carrier and relieves the environment.
This extends your range of applications on narrow job sites and wherever noise protection is required.
Heavy Duty housings feature a robust structure, are made of wear-resistant steel, with minimum number of holes and heavy duty wear plates for optimum vibration- and noise dampening.
Resulting in a longer housing lifetime even in the harshest of applications, reducing the cost of ownership through less maintenance.
Super Duty housings are designed for the toughest of applications, featuring a robust structure. They are made of wear-resistant steel, with minimum number of holes and heavy duty wear plates for optimum vibration- and noise dampening.
Resulting in a longer housing lifetime even in the harshest of applications, reducing the cost of ownership through less maintenance.
Stone claws are ideal wear parts for material handling, especially useful in boulder breaking and in concrete demolition.
The relatively short hydraulic hoses go upwards from the hammer to the carrier boom. This allows full utilization of the working length of the hammer in narrow applications.
In demolition, trenching or underwater applications there is little contact to the material.
In applications with quick hitch mounting brackets ask your hammer distributor for smart solutions.
The built-in pressure control valve maintains hydraulic pressure levels to ensure that every blow delivers the maximum power, yielding optimum productivity in all applications.
More efficient than relief/check valves, Ramvalve detects overflow, prevents damage from system overload and protects against premature failure.
The Idle Blow Protection (IBP) ensures the hammer cannot be operated until pressure is placed on tool. This eliminates tie rod stress, reduces oil overheating and protects against premature failures.
Vibration dampened, external tie rods (VIDAT) with spherical tie rod nuts and elastomeric vibration dampers.
No special tools are required for service.
This design guarantees a safe, fast and error-free installation (without torsion) and extends the service life of your RAMMER hammer.
Quick and safe tool change system transverse to the hammer. No need to reach under the hammer during tool change.
Field replaceable lower tool bushing eliminates transport to service workshop.
Carrier mounted greasing device
The RAMLUBE II is a state-of-the-art, convenient and automatic lubrication system for RAMMER hydraulic hammers, which significantly extends the service life of wearing parts.
The RAMLUBE II is mounted on your hammer housing and is a self-venting impulse lubrication system.
The grease volume of the RAMLUBE II can be externally adjusted.
We recommend to use our original Rammer tool greases, which are developed for hammer applications.
There are available three different greases: original Rammer Tool Grease for standard applications, Rammer Meissel Paste for special applications and Artic Tool Grease for cold climate conditions.
RD3 for SAM as standard. Online hour meter and location tracking in Google MapsTM.
For further information, please contact your Rammer distributor.
Air connection as standard for connection to either Ramair or applications under water. Read the operator's manual and consult with your dealer.
The RAMMER - RAMAIR air supply prevents dirt from entering the hammer housing and the impact chamber in order to achieve longest service life of the RAMMER hammer even in the most demanding applications.
It also ensures that the tool grease is conveyed to the tool bushings at any time and in any position of the hammer and that no overfilling occurs.
The RAMMER - RAMAIR is particularly recommended for highly abrasive and dusty materials or overhead applications, such as tunneling or robbery work.
Demolition of standing buildings and structures.
Trenching is a form of primary breaking in which a narrow trench is excavated especially for laying pipes, cables or for installing drainage
Demolition of larger pieces on the ground (size reduction, separation and preliminary sorting tasks)
Hammer fitted to an excavator working directly in a bench to breaks away rock which can then be removed by truck. This is most commonly used where blasting is not allowed.
When blasted rock is too big for the feeder or crusher, secondary breaking is needed to get the boulders down to size. The type of rock dictates the effectiveness of the process, with brittle rock giving the best performance.
Underwater breaking, be it primary breaking and/or demolition is a specialized application, in which material is broken and removed by equipment which is partly or fully submerged.
| Minimum working weight, flange mounted *1 | 4750 kg | 10470 lb |
| Weight | 3900 kg | 8600 lb |
| Working length | 3329 mm | 131.1 in |
| Impact rate, Long stroke | 370 - 530 bpm | |
| Impact rate, Short stroke | 450 - 620 bpm | |
| Operating pressure | 160 - 170 bar | 2320 - 2465 psi |
| Oil flow range | 280 - 380 l/min | 74.0 - 100.4 gal/min |
| Pressure relief setting *2 | 220 bar | 3190 psi |
| Pressure relief max | 230 bar | 3335 psi |
| Back pressure max | 10 bar | 145 psi |
| Input power | 108 kW | 145 hp |
| Tool diameter | 190 mm | 7.48 in |
| Pressure line connection (IN) | SAE 6000 psi 1 1/2" | |
| Return line connection (OUT) | SAE 6000 psi 1 1/2" | |
| Pressure line size, min. inner diameter | 32 mm | 1.26 in |
| Return line size, min. inner diameter | 32 mm | 1.26 in |
| Grease connection | BSPP-internal 3/8" | |
| Air connection (A) | BSPP-internal 3/8" | |
| Optimum oil temperature | 40 - 60 °C | 104 - 140 °F |
| Allowed oil temperature range | -20 - 80 °C | -4 - 176 °F |
| Optimum oil viscosity at operating temperature | 30 - 60 cSt | |
| Allowed viscosity range | 20 - 1000 cSt | |
| Carrier weight, optimum | 45 - 69 t | 99200 - 152100 lb |
| Carrier weight, range *3 | 43 - 80 t | 94800 - 176400 lb |
| Noise level, measured (2000/14/EC) | 122 dB(A) | |
| Noise level, guaranteed (2000/14/EC) | 126 dB(A) | |
| *1 Includes average mounting bracket and standard wear parts *2 Minimum setting = actually measured operating pressure + 50 bar or 725 psi *3 Check carrier allowed attachment weight from carrier manufacturer. Check application requirements. |
||
Specifications are subject to change without notice (Wednesday, February 9, 2022)
